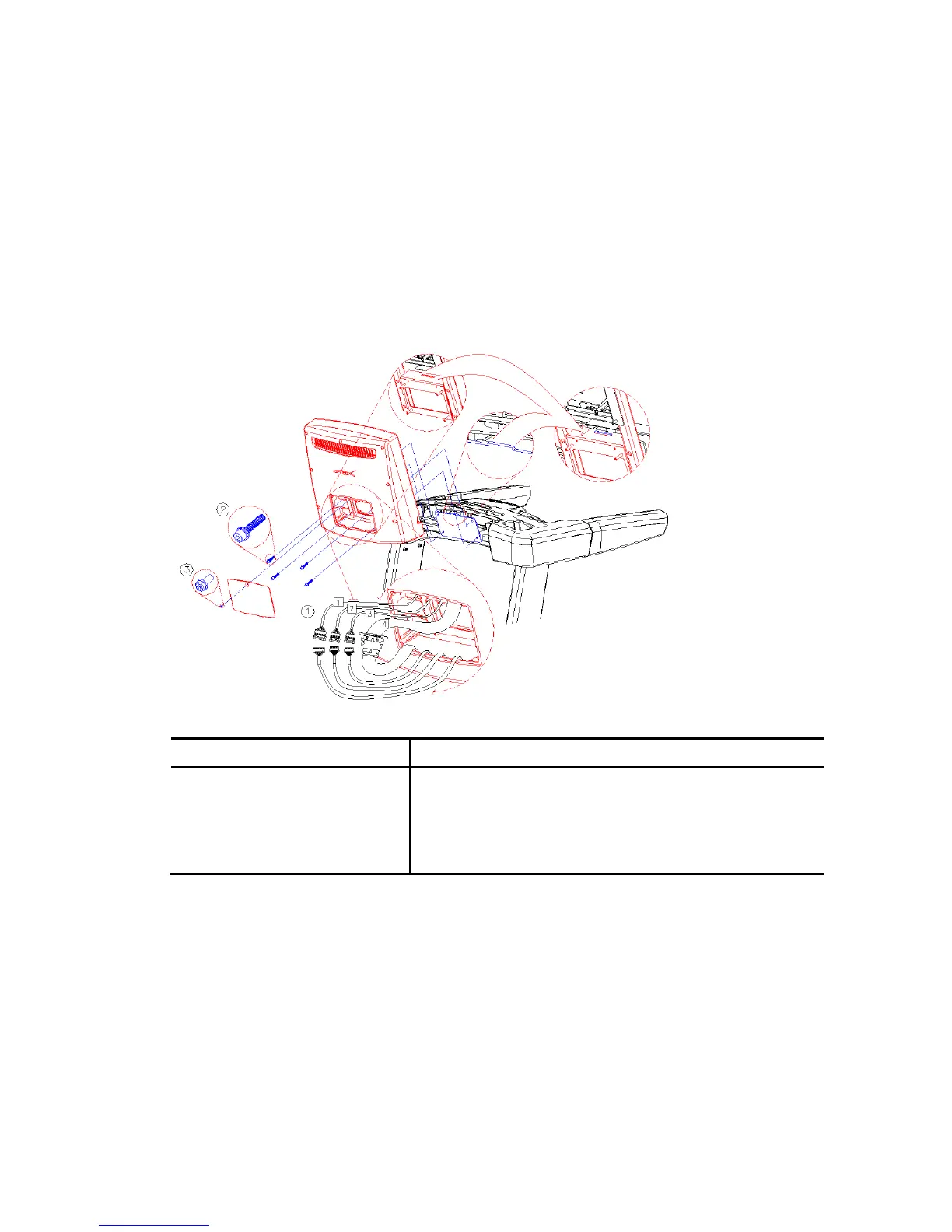

7. [S23T] Position the CONSOLE TOP ASSEMBLY near the CONSOLE MIDDLE ASSEMBLY as shown.
Feed the CONSOLE CABLE[or CABLES] through the cutting slot of the lower of the CONSOLE TOP
ASSEMBLY.
Carefully insert the CONSOLE TOP ASSEMBLY into the top of the bracket of the CONSOLE MIDDLE
ASSEMBLY. Secure the CONSOLE TOP ASSEMBLY using four BOLTS(②, M840L). Be careful not to
damage the cables when installing the CONSOLE TOP ASSEMBLY.
Connect all cables.
Install the REAR CONSOLE TOP COVER to the CONSOLE TOP ASSEMBLY using one SCREW(③,
M512L)
[Connecting cables]
S23T
Remark
1. Main cable

2. Heart Rate cable

3. Communication cable
Optional
RS232 / CSAFE(POWER ONLY)
4. Key cable

