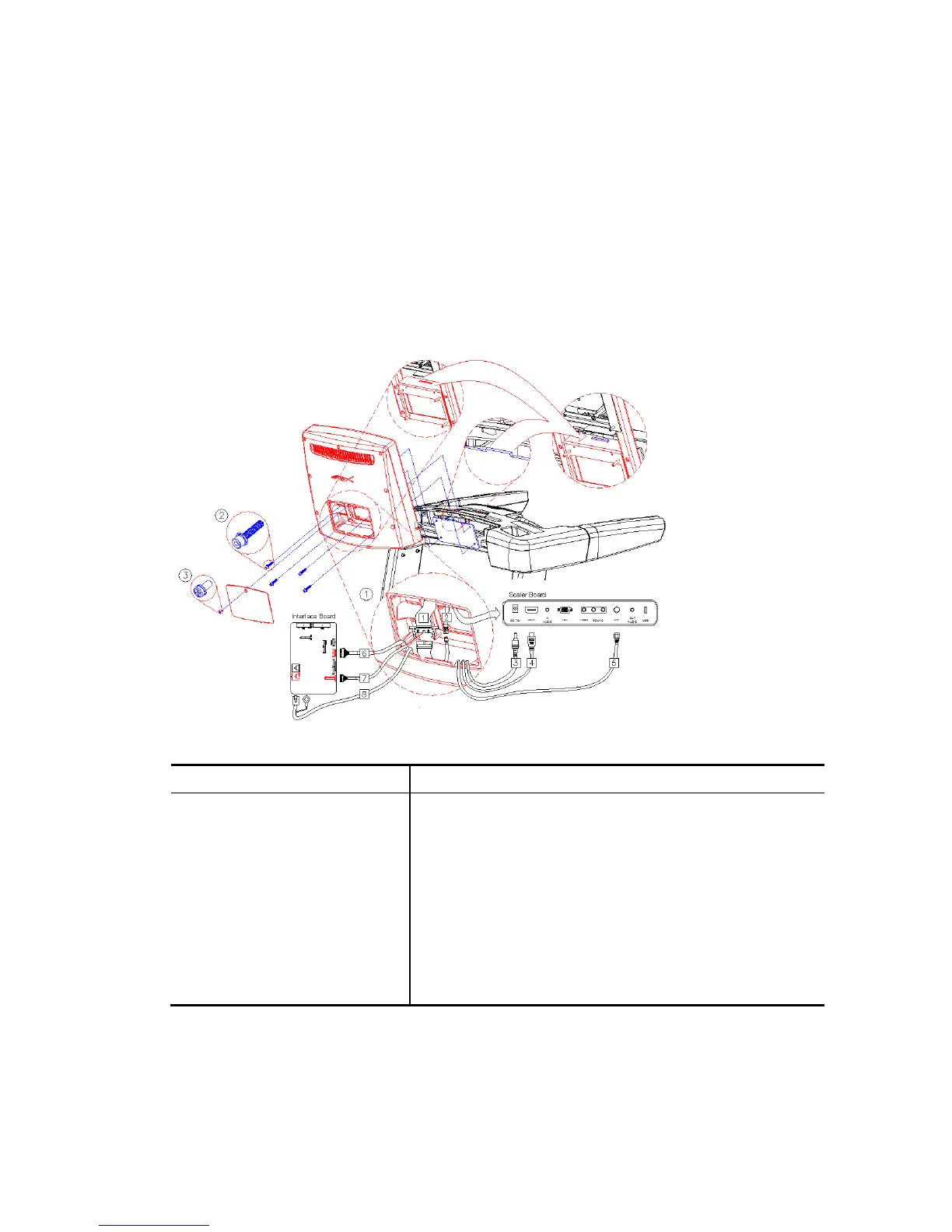

8. [S23TX] Position the CONSOLE TOP ASSEMBLY near the CONSOLE MIDDLE ASSEMBLY as shown.
Feed the CONSOLE CABLE[or CABLES] through the cutting slot of the lower of the CONSOLE TOP
ASSEMBLY.
Carefully insert the CONSOLE TOP ASSEMBLY into the top of the bracket of the CONSOLE MIDDLE
ASSEMBLY. Secure the CONSOLE TOP ASSEMBLY using four BOLTS(②, M840L). Be careful not to
damage the cables when installing the CONSOLE TOP ASSEMBLY.
Connect all cables.
Install the REAR CONSOLE TOP COVER to the CONSOLE TOP ASSEMBLY using one SCREW(③,
M512L)
[Connecting cables]
S23TX
Remark
1. Key cable

2. Emergency cable

3. Adaptor cable

Onto the Scaler board
4. HDMI cable
Optional
Onto the Scaler board
5. RF cable

Onto the Scaler board
6. Communication cable
Optional
Onto the Interface board
7. Heart Rate cable

Onto the Interface board
8. Main cable

Onto the Interface board
