with 6mm L-wrench.(2)
③ Slide the DISPLAY SUPPORT L down over the DISPLAY SUPPORT L BRK and Fasten 5 bolts(M8
×
20m
m) with 6mm L-wrench.(2)

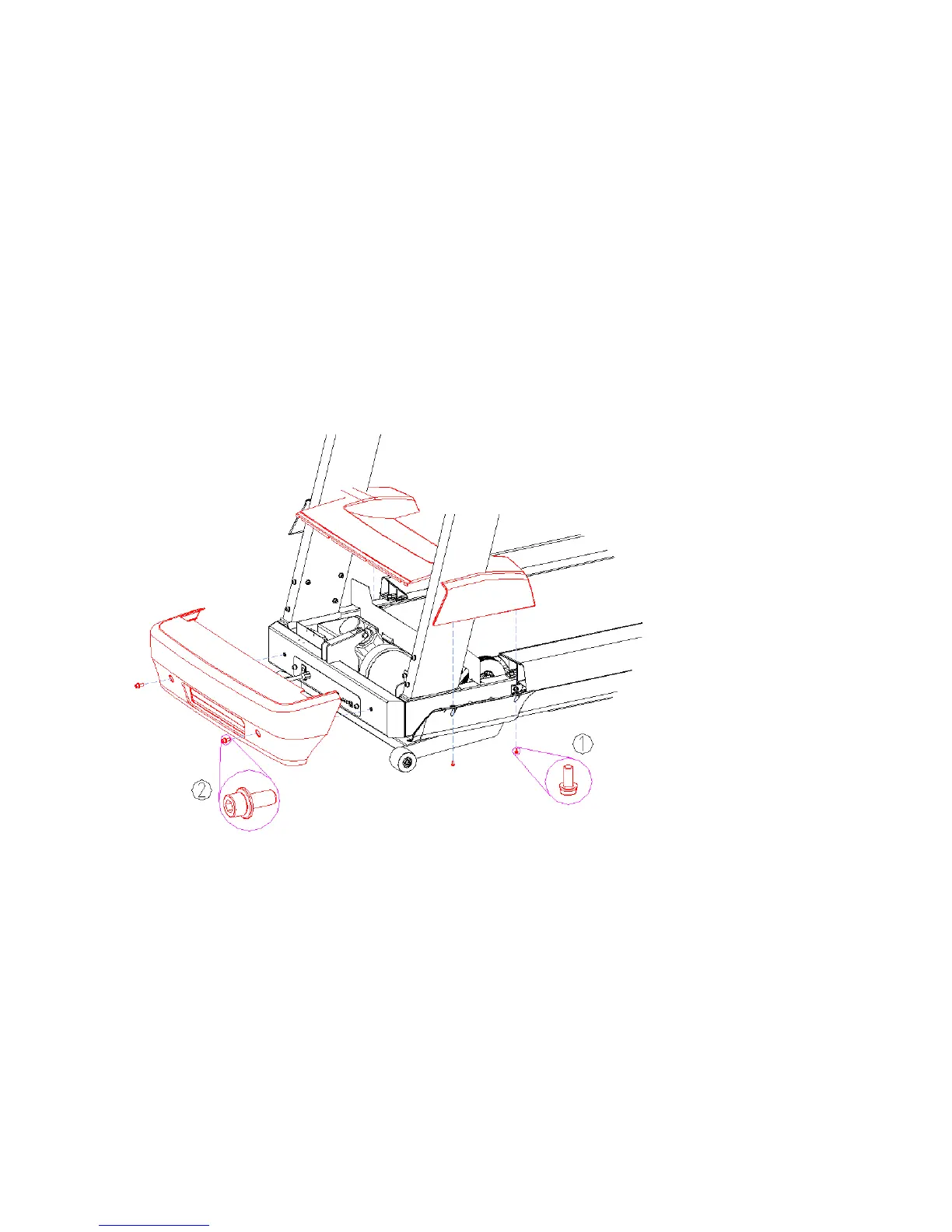

4. Secure the FRONT COVER and TOP MOTOR COVER
① Position the TOP MOTOR COVER as shown.
② Assemble the TOP MOTOR COVER with MASTER MAIN FRAME. Fasten the 4 bolts(M5
×
12mm) to four
holes of the TOP MOTOR COVER with Screw driver.(1)
③ Position the FRONT COVER as shown.
④ Assemble the FRONT COVER with MASTER MAIN FRAME. Fasten the 2 bolts(M8
×
20mm) to four holes
of the FRONT COVER with 6mm L-wrench.(2)
