6mm L-wrench.(2)

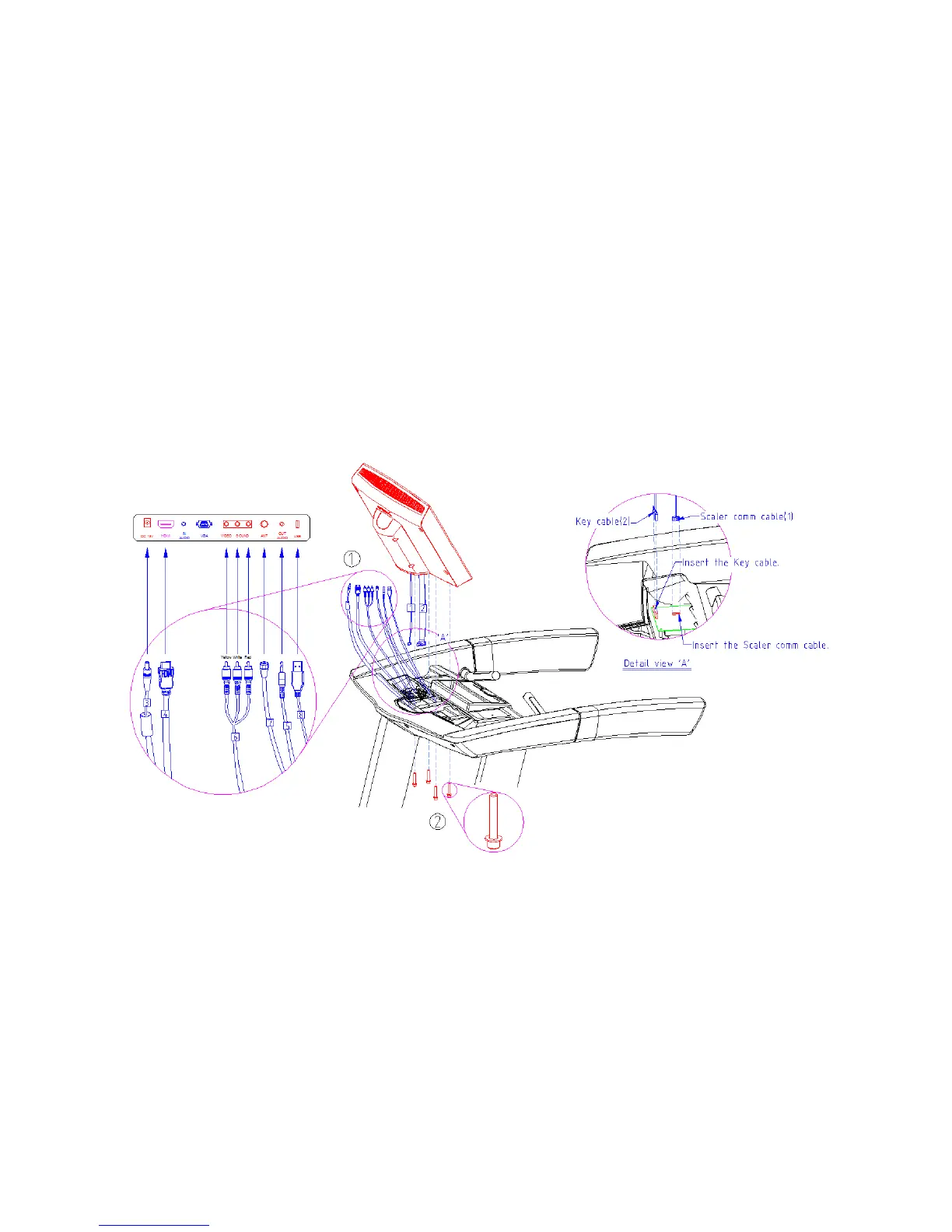

6 . Secure the DISPLAY TOP ASSEMBLY - S25TX, S25TXi
① Connect the cables between the DISPLAY CONSOLE ASSEMBLY and DISPLAY TOP ASSEMBLY as
shown .(1)
1) Scaler comm cable - S25TX
- Connect the Scaler comm cable with the INTERFACE BOARD of the D ISPLAY CONSOLE ASSEMBLY .
2) Key cable - S25T, S25TX
- Connect the Key cable with the INTERFACE BOARD of the DISPLAY CONSOLE ASSEMBLY .
3) Adapter cable - S25TX
- Connect the Adapter cable as shown.
4) HDMI cable(Option) - S25TX
