INSTALLATION

Installation

78 | DHE www.stiebel-eltron.com

D0000053319

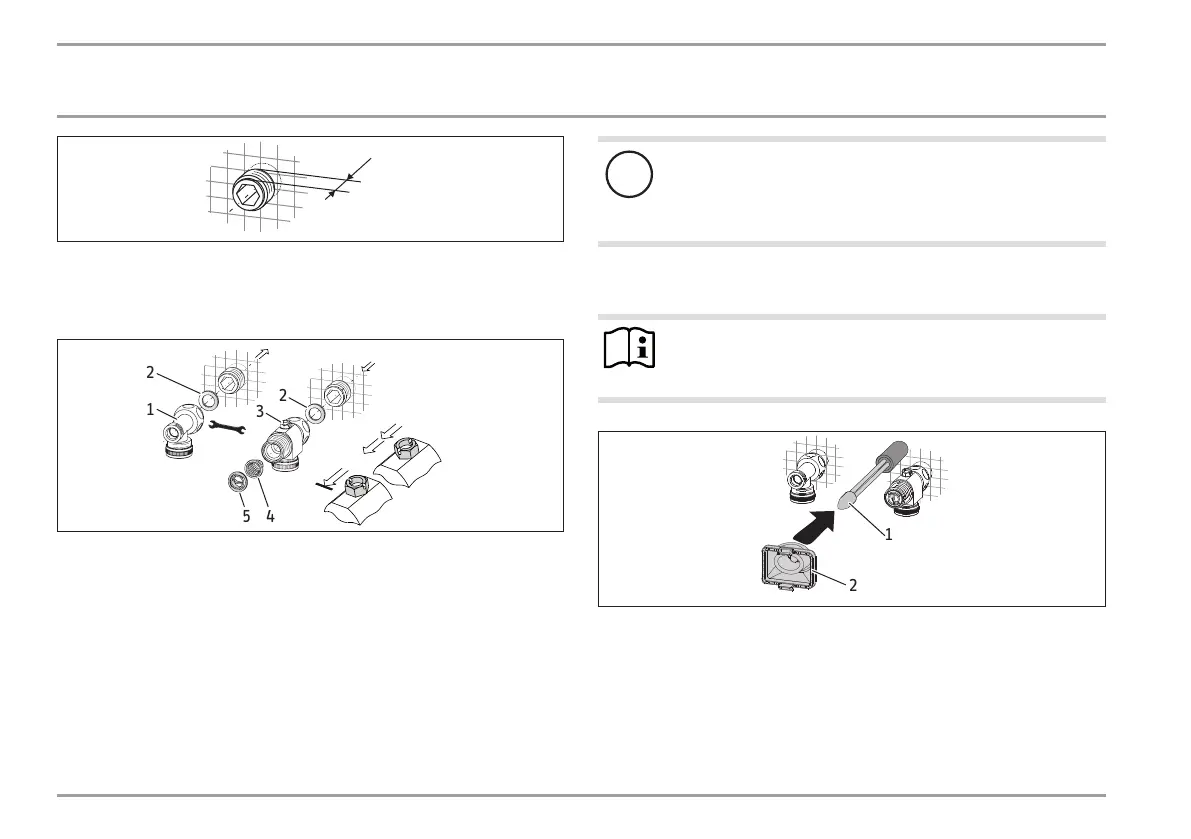

 Seal and insert the twin nipples.

Making the water connection

5 Nm

D0000059695

1 DHW with tee

2 Gasket

3 Cold water with 3-way ball shut-off valve

4 Strainer

5 Plastic proﬁle washer

 Secure the tee and 3-way ball shut-off valve, each with a ﬂat

gasket, to the twin nipples.

Material losses

The strainer must be ﬁtted for the appliance to function.

 When replacing an appliance, check whether the

strainer is installed.

Installing the appliance

Note

If you are installing the appliance with ﬂexible pipe con-

nections, also secure the back panel with a screw.

D0000053291

1 Cable entry installation aid

2 Cable grommet

Use the installation aid for easier wiring access through the cable

grommet (see plastic parts set supplied).

 Remove the cable grommet from the back panel.
