90
13. Installation options

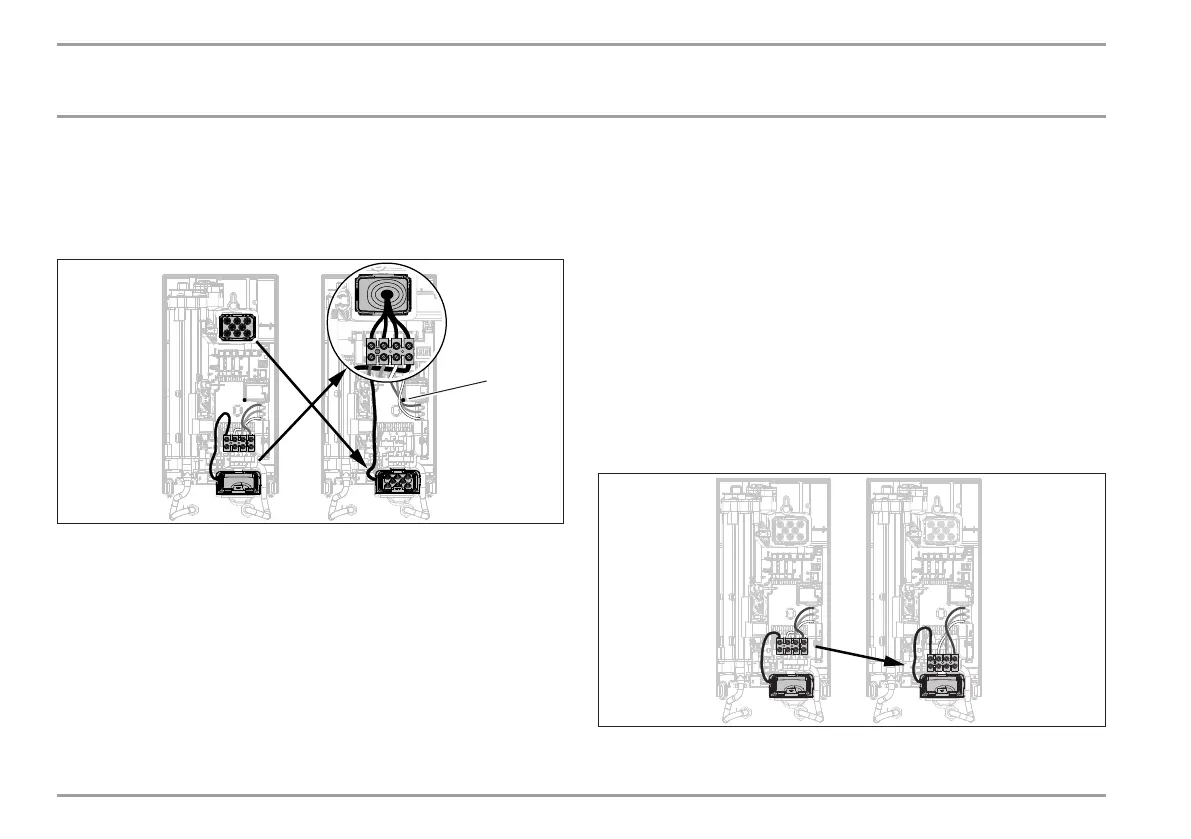

13.1 Electrical connection from above on unfinished
walls
D0000053282
1
1 Cable routing
Reposition the mains terminal from the bottom to the top. To
do this, undo the fixing screw. Turn the mains terminal with
connecting cables 180° clockwise. Route the cable around
the cable guide when doing so. Secure the mains terminal in
place.
Replace the cable grommets by removing both cable
grommets.
Install the cable grommet downwards from above.
Route the other cable grommet over the cable sheath of the
power cable. Pull the cable grommets into the back panel,
until both locking tabs engage.
Install the appliance on the threaded studs of the wall
mounting bracket.
Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
Pull the cable grommets into the back panel, until both lock-
ing tabs engage.
Connect the power cable to the mains terminal.
13.2 Electrical connection on unfinished walls with
short mains connection cable
D0000060387
