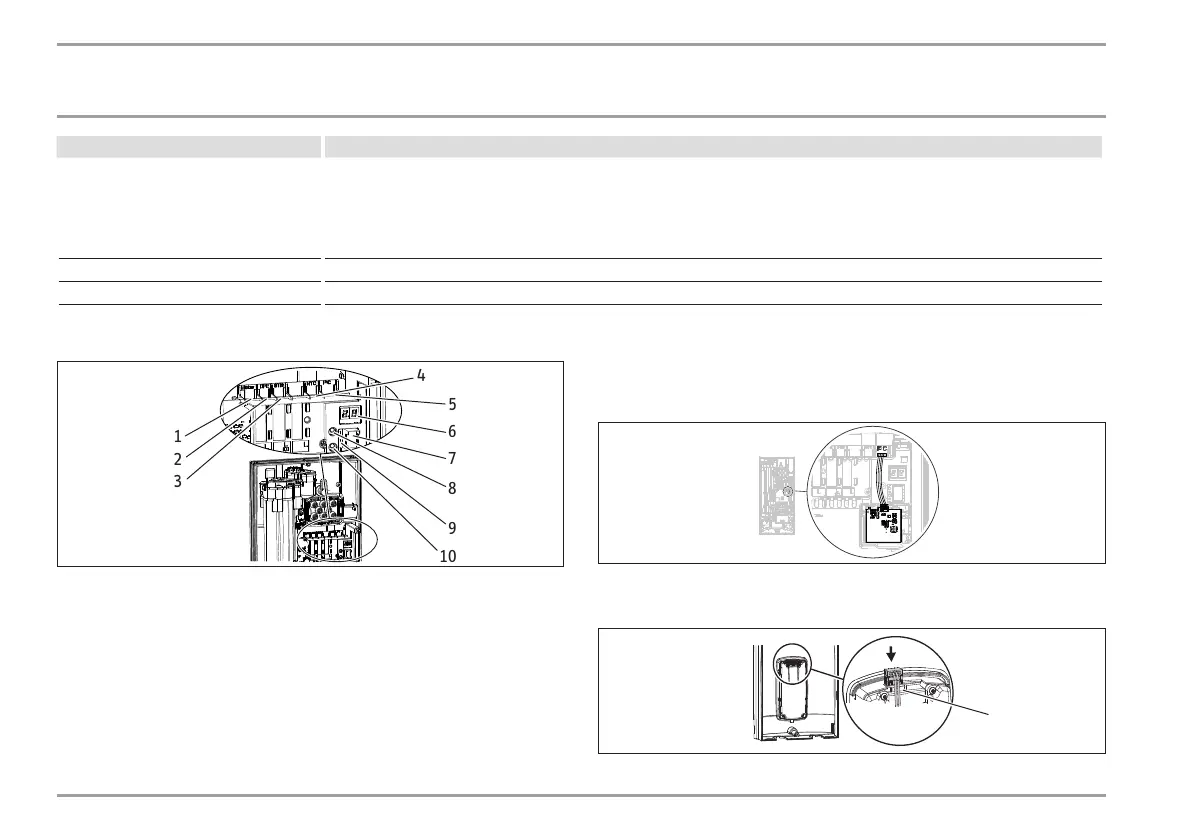

98  
 
Service code
Entering the Service code displays the "Control menu" and "Network diagnostics" menu items.
► Enter service code "1000".
Enable the Service code with the tick symbol ("Service level 1" appears on the display). Continue using
the arrow symbol.
"Service level 1" is disabled by pressing the "Disable level 1" button
 Control menu You can call up appliance information here.
 Network diagnostics For DHEConnect only: You can obtain network information here.
Connection overview/ Component overview
D0000053288
1
2
3
4
5
6
7
8
9
10
1 Motorised valve
2 Flow sensor
3 High limit safety cut-out, automatic reset
4 NTC sensor
5 Wireless module
6 Display
7 Programming unit
8 Connected load button
9 Diagnostic traffic light
10 "Service" button to enable "Anti-scalding protection
activation"
Wireless module connecting cable plug positions
D0000056236
Programming unit connecting cable plug positions
T-Soll
D0000056909
1
1 "T-Soll"

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the STIEBEL ELTRON DHE Connect 18/21/24 and is the answer not in the manual?

STIEBEL ELTRON DHE Connect 18/21/24 Specifications

General IconGeneral
Power Output18/21/24 kW
Voltage400 V
Frequency50/60 Hz
ControlElectronic
Protection ClassIP25
Rated Current26/30/35 A
Energy Efficiency ClassA
Connection TypeFixed Connection
TypeInstantaneous Water Heater
ConnectivityWiFi
Temperature Range20°C to 60°C
