24 |DHF-C www.stiebel-eltron.com
INSTALLATION

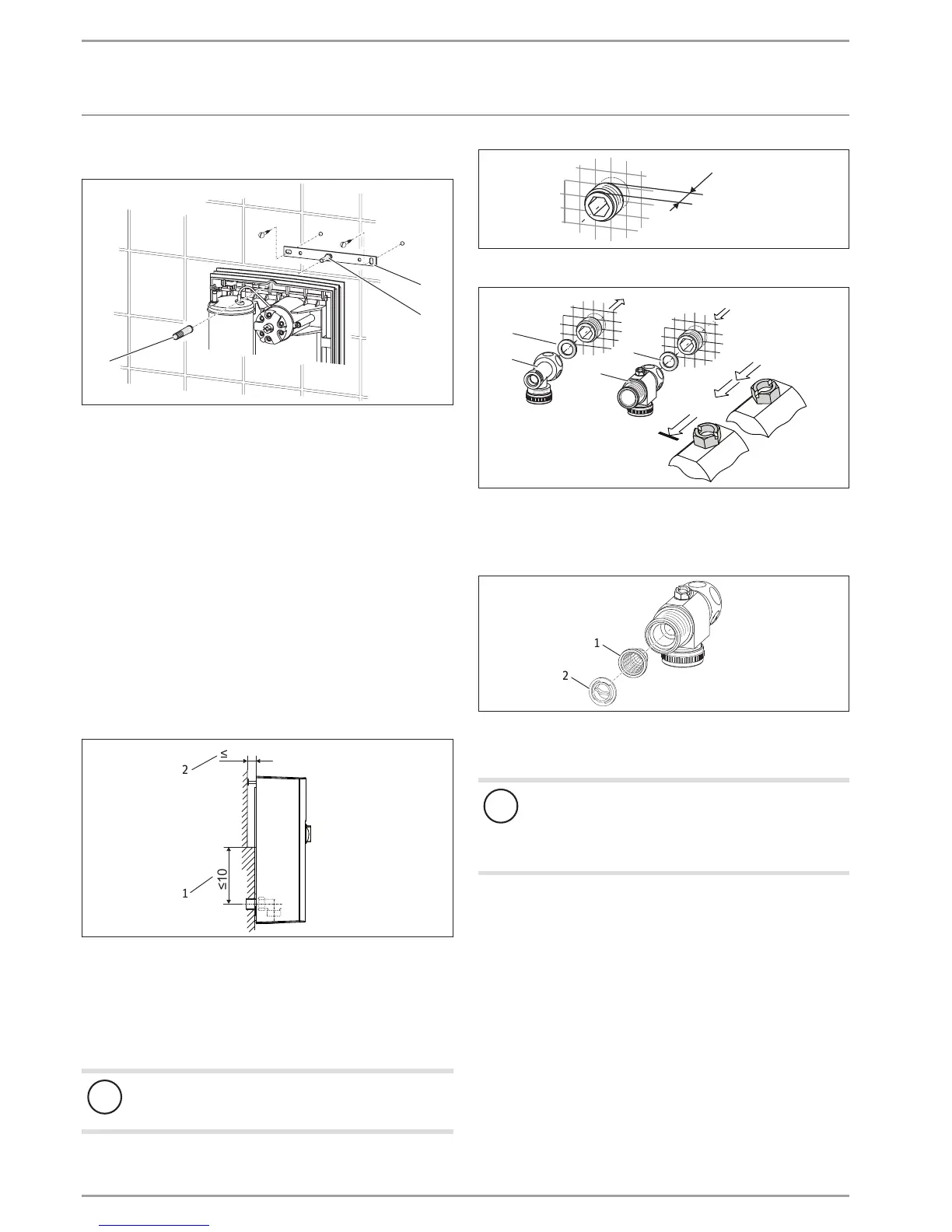

Installation
Fitting wall mounting bracket and appliance
26�02�02�0398
3
2
1
1 Wall mounting bracket
2 Threaded stud
3 Threaded bush
Remove the wall mounting bracket.
Mark out the drill holes with the installation template (in the
centre section of these instructions). If the appliance is to be
installed with water connections on finished walls, also mark
out a fixing hole in the lower part of the template.
Drill the holes and secure the wall mounting bracket with
2screws and 2rawl plugs. The screws and rawl plugs are
not part of the standard delivery.
Mount the wall mounting bracket.
Mount the appliance on the threaded stud.
Push the back panel firmly against the wall. Secure the back
panel using the threaded bush. You can compensate for a tile
offset with the nut on the threaded stud.
Installation with offset tiles
≤12
≤100
2
1
D0000042707
1 Minimum contact area of the appliance
2 Maximum tile offset
Adjust the wall clearance with the nut on the threaded stud.
Push the back panel firmly against the wall. Secure the back
panel using the threaded stud.
Making the water connection
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
12
D0000053319
Seal and insert the twin connectors.
26�02�02�0799
2
3
1
3
1 Cold water with 3-way ball shut-off valve
2 DHW with tee
3 Gasket
Fit the water connections.
1
D0000042708
2
1 Strainer
2 Plastic profile washer
Fit the supplied strainer in the 3-way ball shut-off valve.
!
Material losses
The strainer must be fitted for the appliance to function.
When replacing an appliance, check whether the
strainer is installed (see chapter "Installation/ Main-
tenance").
