10 |HDB-E AU www.stiebel-eltron.com
INSTALLATION
Shutdown
12. Shutdown
Isolate all poles of the appliance from the power supply.
Drain the appliance (see chapter "Installation/
Maintenance").

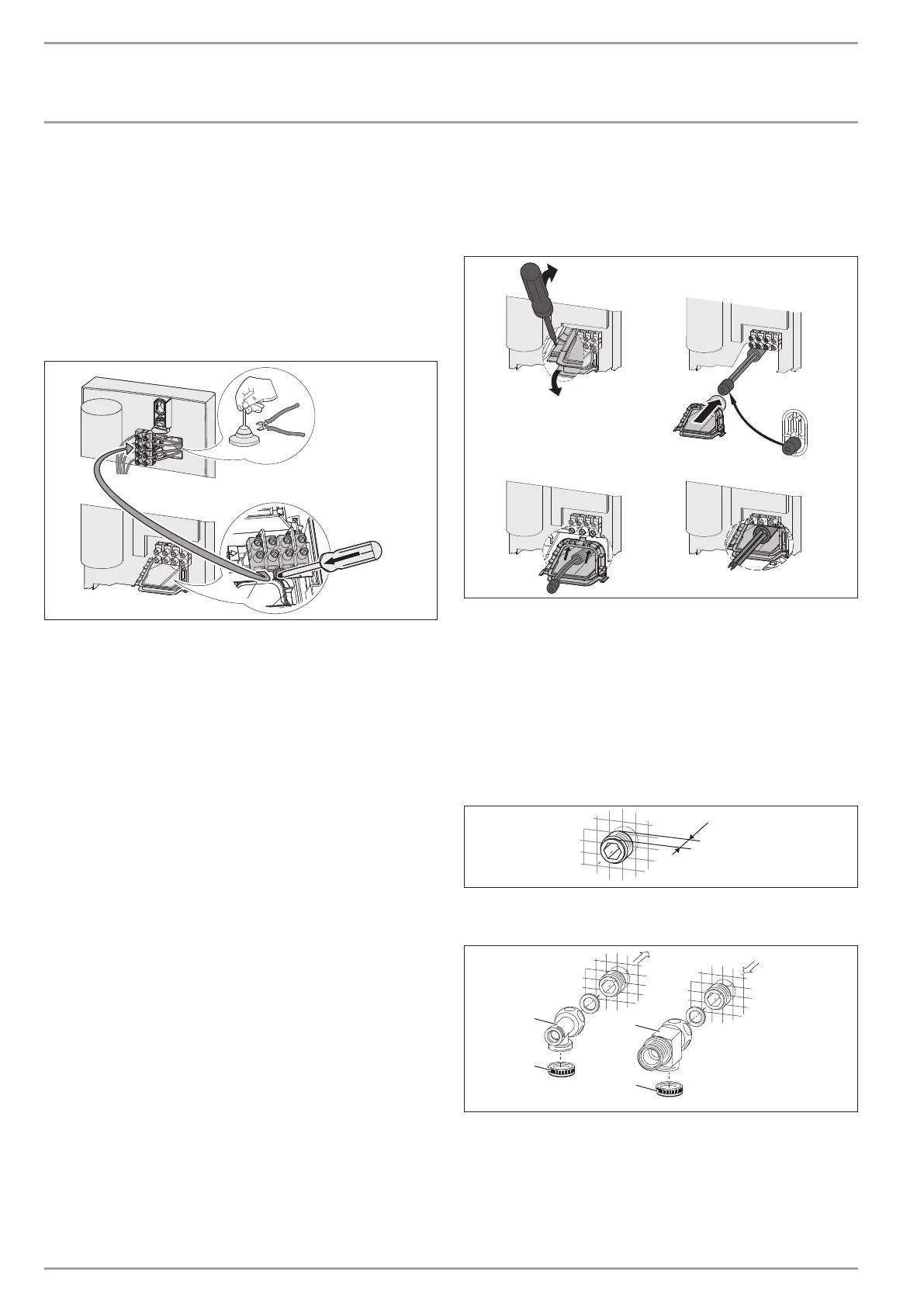

13. Alternative installation options
13.1 Electrical connection from above on unfinished
walls
26�02�02�1123�
Cut open the cable grommet for the power cable.
Push down the locking hook to secure the mains terminal.
Pull out the mains terminal.
Reposition the mains terminal from the bottom to the top.
Secure the mains terminal by pushing it under the locking
hook.
13.2 Large cross-section for electrical connection
from below
If you use cables with a large cross-section, you can fit the cable
grommet after the appliance has been installed.
1.
3.
4.
2.
26�02�02�1124�
Before installing the appliance, use a screwdriver to push out
the cable grommet.
Slide the cable grommet over the power cable. Use the in-
stallation aid supplied as part of the standard delivery. If
the cross-section is >6mm², enlarge the hole in the cable
grommet.
Push the cable grommet into the back panel. Click the cable
grommet into place.
13.3 Water installation on unfinished walls
12
D0000053319
Seal and screw in the twin connectors (not included in stand-
ard delivery).
D0000041724
2
3
1
3
1 Tee for cold water
2 Tee for domestic hot water
3 Cap
Fit the water connections.
