INSTALLATION
Installation
11. Installation
11.1 Handling
Transport the appliance in its packaging to protect it against
damage.
Protect the appliance against heavy impact during transport.
- Only allow the appliance to be tilted during transport for a
short time to one of its longitudinal sides.
The longer the appliance is tilted, the greater the distribution
of refrigerant oil in the system.
- Storage and transport at temperatures below -20°C and in
excess of +50°C are not permissible.
11.2 Siting
Remove the packaging film and the top and side EPS
padding.
Slightly tilt the appliance forward.
Place wooden blocks underneath the back of the appliance.
Tilt the appliance backwards slightly and remove it from the
EPS pallet.
To do this, use the handles provided at the back and the front
adjustable rubber feet at the bottom.
Position the appliance on the prepared substrate.
Maintain the minimum clearances.
Level the appliance horizontally by adjusting the feet.

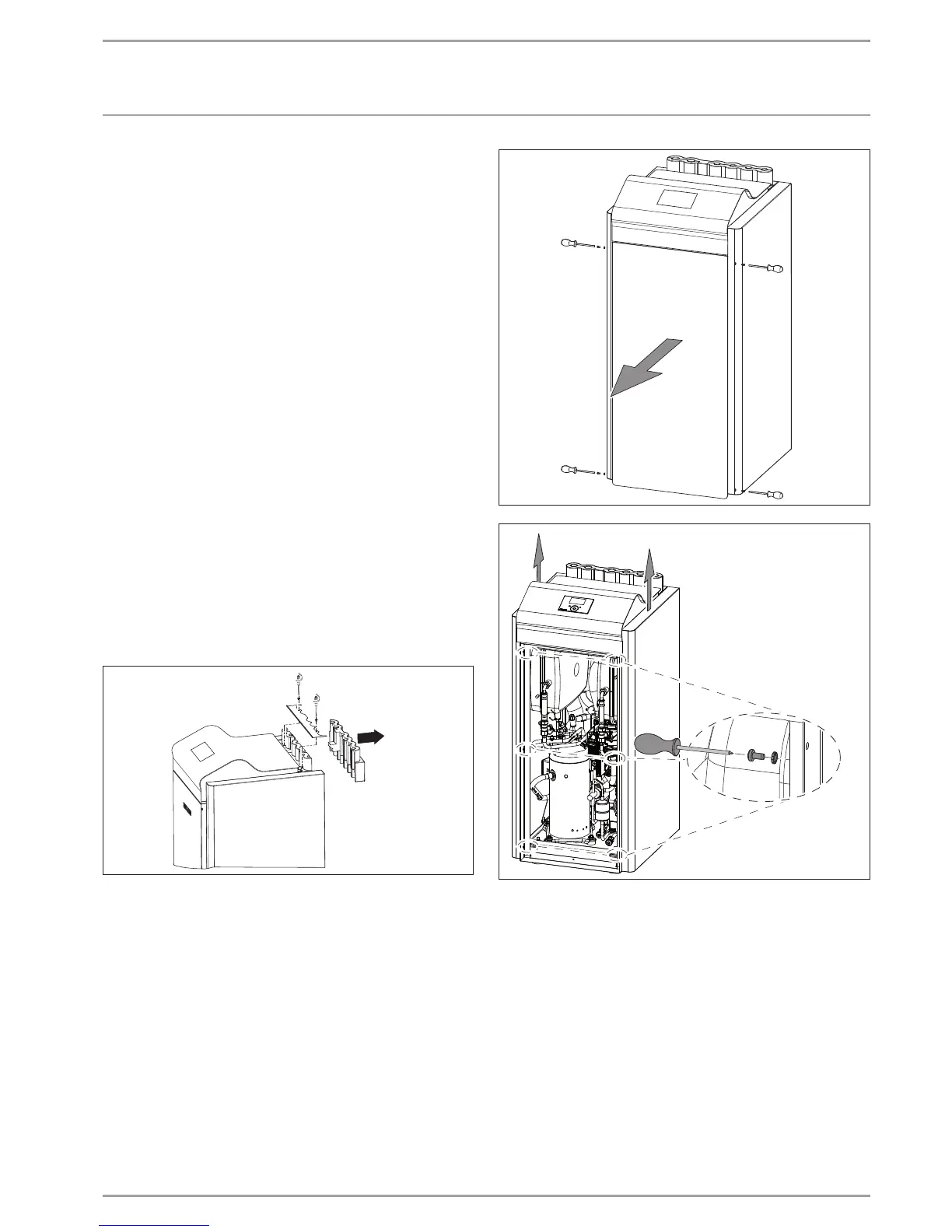

11.3 Removing the casing parts
D0000036134
D0000036135D0000036148
11.4 Installing the heat source system
Design the heat source system for the ground source heat pump
in accordance with the technical guides.
11.4.1 Permitted brine:
- Heat transfer medium as concentrate on an ethylene glycol
base, part no: 231109 (10 l)
- Heat transfer medium as concentrate on an ethylene glycol
base, part no: 161696 (30 l)
11.4.2 Circulation pump and required flow rate
See "Adjusting the flow rate on the heat source side" in the Com-
missioning chapter.
