30 EN
3. INSTALLATION

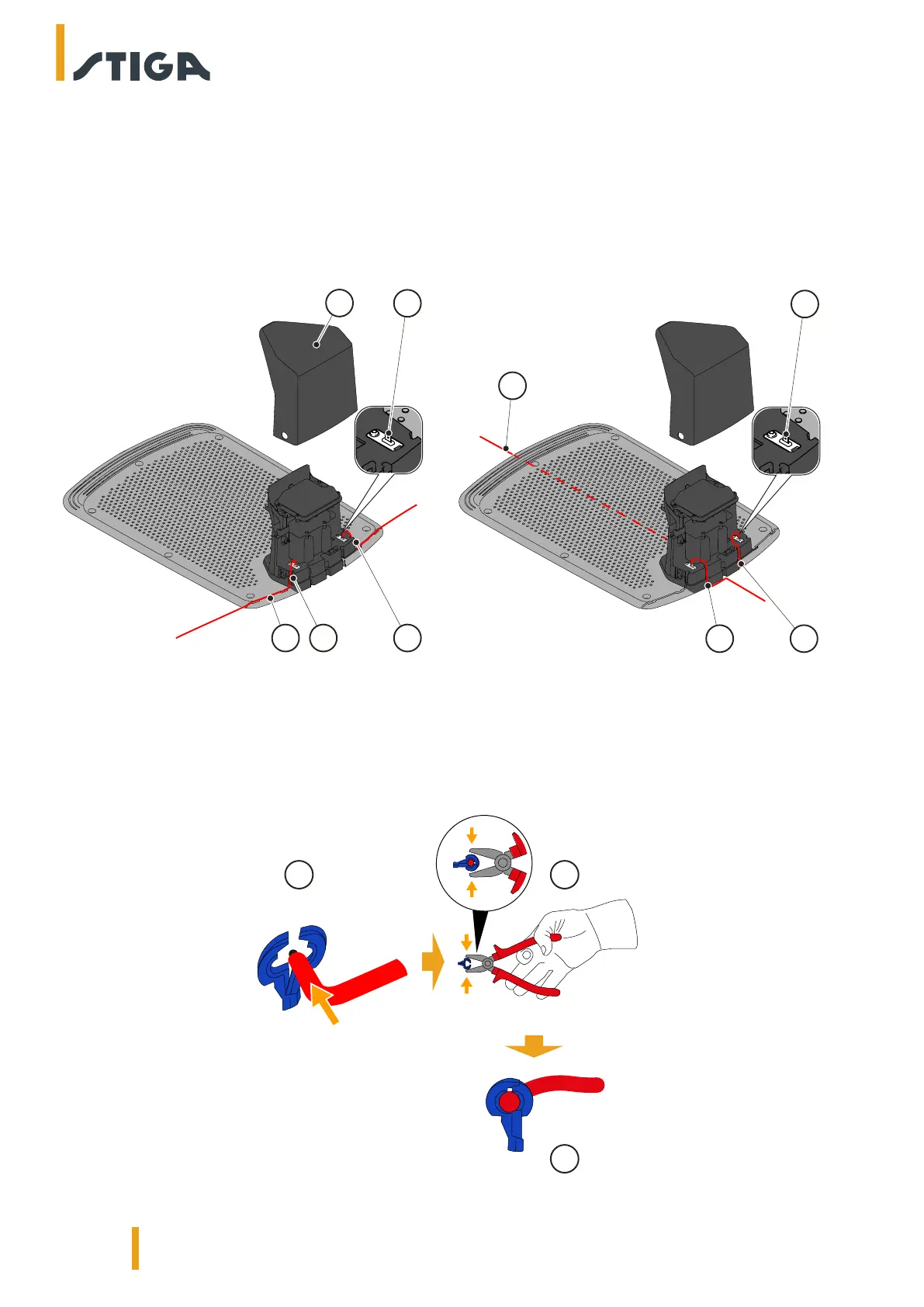

3. Remove the cover (C).
4. Position the charging base in one of the following two ways:
• Perpendicular to the perimeter wire with the guide (D1) aligned with the wire.
• Aligned to the perimeter wire (D2) so that the robot can access it by navigating the perimeter wire
clockwise.
5. Insert the two ends of the cable in the appropriate passages; (E1) in case of laying perpendicular to
the cable, in passages (E2) in case of laying in axis with the perimeter wire.
6. Cut the ends of the cables to the exact length.
7. Apply the self-drilling connectors on the cable (F), (G), (H).
8. Connect the connectors to the terminals (I).
I
C
D1 E1 E1
F G
H
I
D2
E2 E2
