STIHL 009, 010, 011 38
On filter cove
r
Unscrew flat head screw from
annular buffer (virbration damper).
Remove filter cover and plate and
then unscrew hexagon nut and take
out annular buffer.
Note on repairs: If only one annular
buffer is faulty, always replace all
three annular buffers for safety rea-
sons.
On handlebar
Unscrew the hexagon nut. Pull
handlebar off the collar stud and un-
screw the annular buffer (vibration
damper) and bracket from the saw
housing.
Do not forget the bracket (anti-shear
element) when installing the new
vibration damper.
On rear handle
Unscrew M 5x18 flat head screw from
annular buffer (vibration damper).
Swing handle upward and unscrew
the annular buffer and bracket from
the saw housing.
Do not forget the bracket (anti-shear
element) when installing the new
vibration damper.
The anti-vibration handle system re-
duces engine and cutting attachment
vibrations to a minimum before they
reach the operator. This vibration in-
sulation is achieved by means of re-
silient anti-vibration mounts between
the chain saw housing and the front
and rear handles.
To insure that the full benefit of the
AV handle system is maintained it is
essential that the saw be operated
only with completely intact vibration
dampers. Moreover, it is extremely
important to insure that the brackets
(anti-shear elements) are always fit-
ted at the front left on the handlebar
and on the rear handle. The risk of
accidents will be increased if the anti-
shear elements are forgotten during
a repair.
6. AV HANDLE SYSTEM 6.2 Repair
6.1 Construction
and Operation

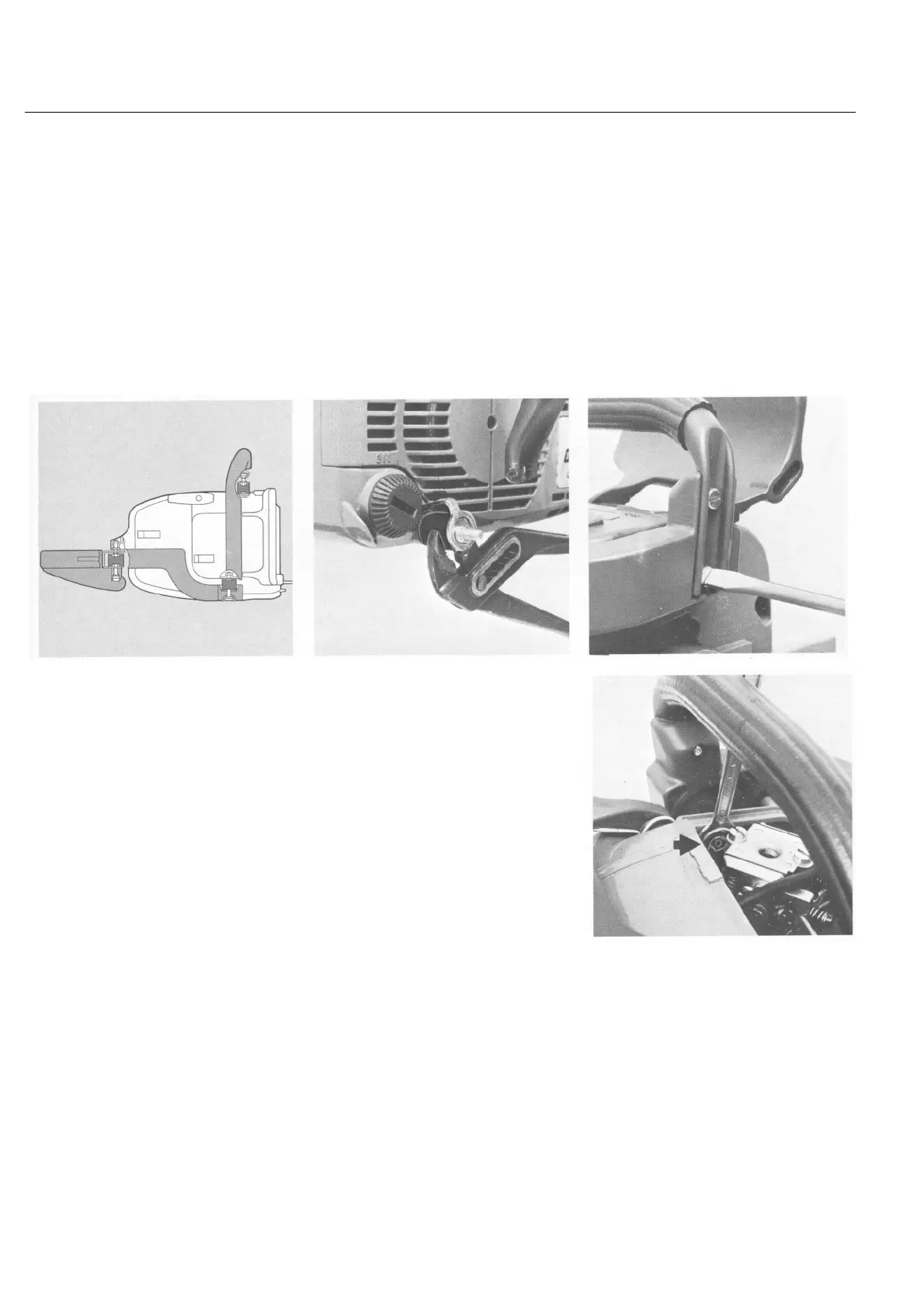

Top: Removing flat head
screw
Bottom:
Position of vibration dampers Unscrewing vibration damper with bracket Unscrewing the hexagon nut
