STIHL 029, 039 32

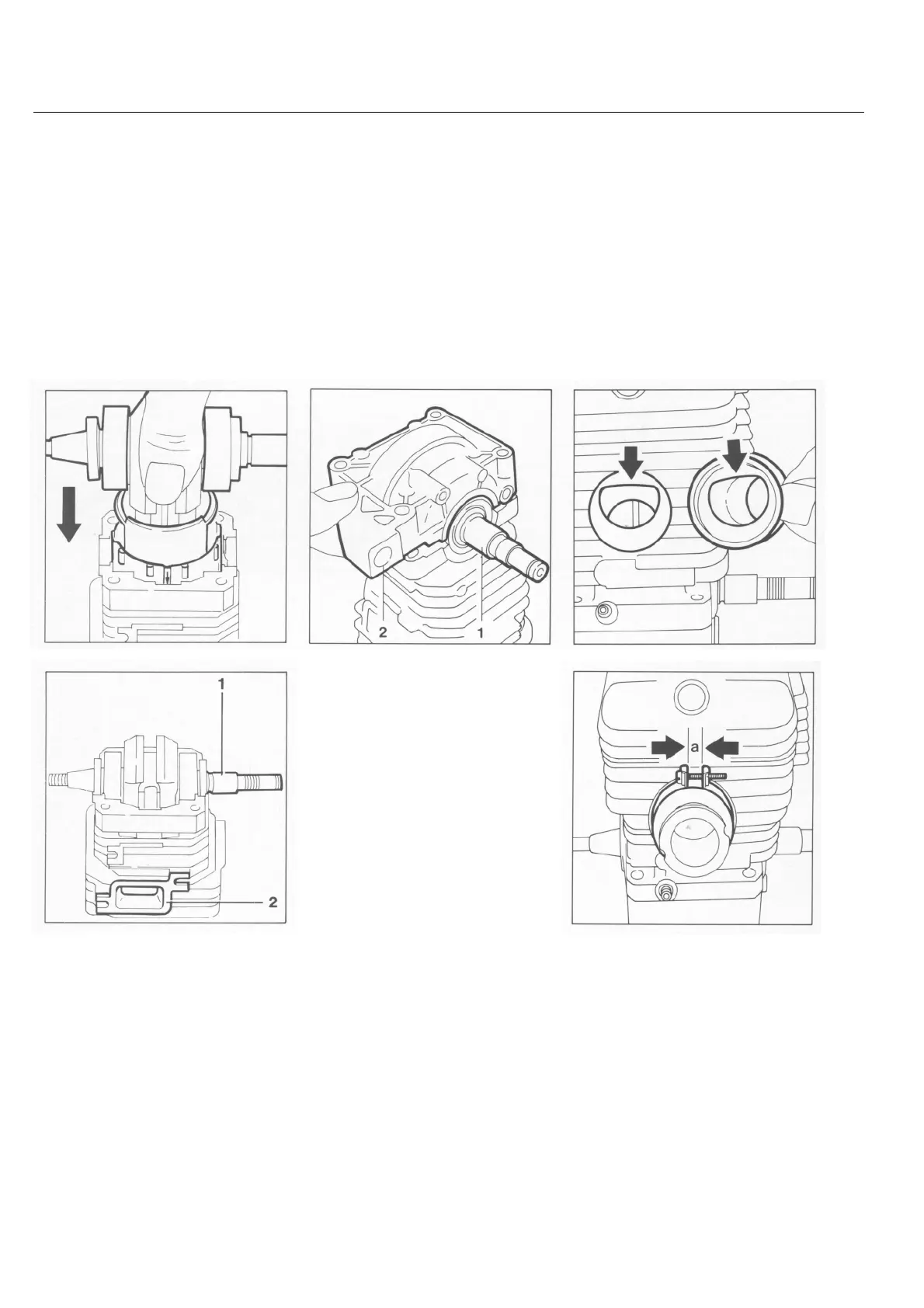

Top:
Fitting the piston
Bottom:
1 = Long crankshaft stub
2 = Exhaust port
Top:
Straight faces on manifold and
intake port
Bottom:
Correct position of hose clamp
a = 8 mm (5/16")
- Fit the hose clamp on the manifold
so that its ends point up and the
screw head is on the left.
- Tighten the screw until the gap
between the two ends of the hose
clamp is about 8 mm (5/16").
- Assembly of all other parts is now a
reversal of the disassembly
sequence.
- Apply a thin coating of sealant to
the outer diameters of the oil seals
- see 12.2.
- Position piston with clamping strap
in cylinder so that the channel
sections on the clamping strap rest
on the lands in the cylinder.
- Carefully push the piston into the
cylinder. Open the clamping and
take it away.
- Line up the crankshaft so that its
long stub is on the right - looking at
the exhaust port.
- Apply a thin bead of sealant to the
engine pan mating face - see 12.2.
Note: Follow manufacturer's
instructions for use of sealant.
- Fit the engine pan so that the seat
for the oil pump is at the same side
as the long crankshaft stub.
- Push the manifold on to the
intake port so that the straight faces
of the manifold and intake port are in
alignment.
1 = Long crankshaft stub
2 = Tapped hole for bar
mounting stud
