5.1.6 Short Circuit Wire/
Ground Wire
5.1.7 Contact Spring
- Remove handle housing - see
8.1.1.
Remove the flywheel - see 5.1.5.
- Remove the ignition module
-see 5.1.2.2.
- Remove the ground wire
fastening screw from the
cylinder.
- Remove the air filter - see 11.1.
- Remove the switch shaft - see
9.1.
- Pull the ground wire terminal off
the contact spring.
- Ease the contact spring out of its
seat in the handle housing.
Installation is a reversal of the
removal sequence.
- Pull the short circuit and ground
wires out of the hole in the engine
housing.
- Pull the grommet off the short
circuit and ground wires.
Installation is a reversal of the
removal sequence.

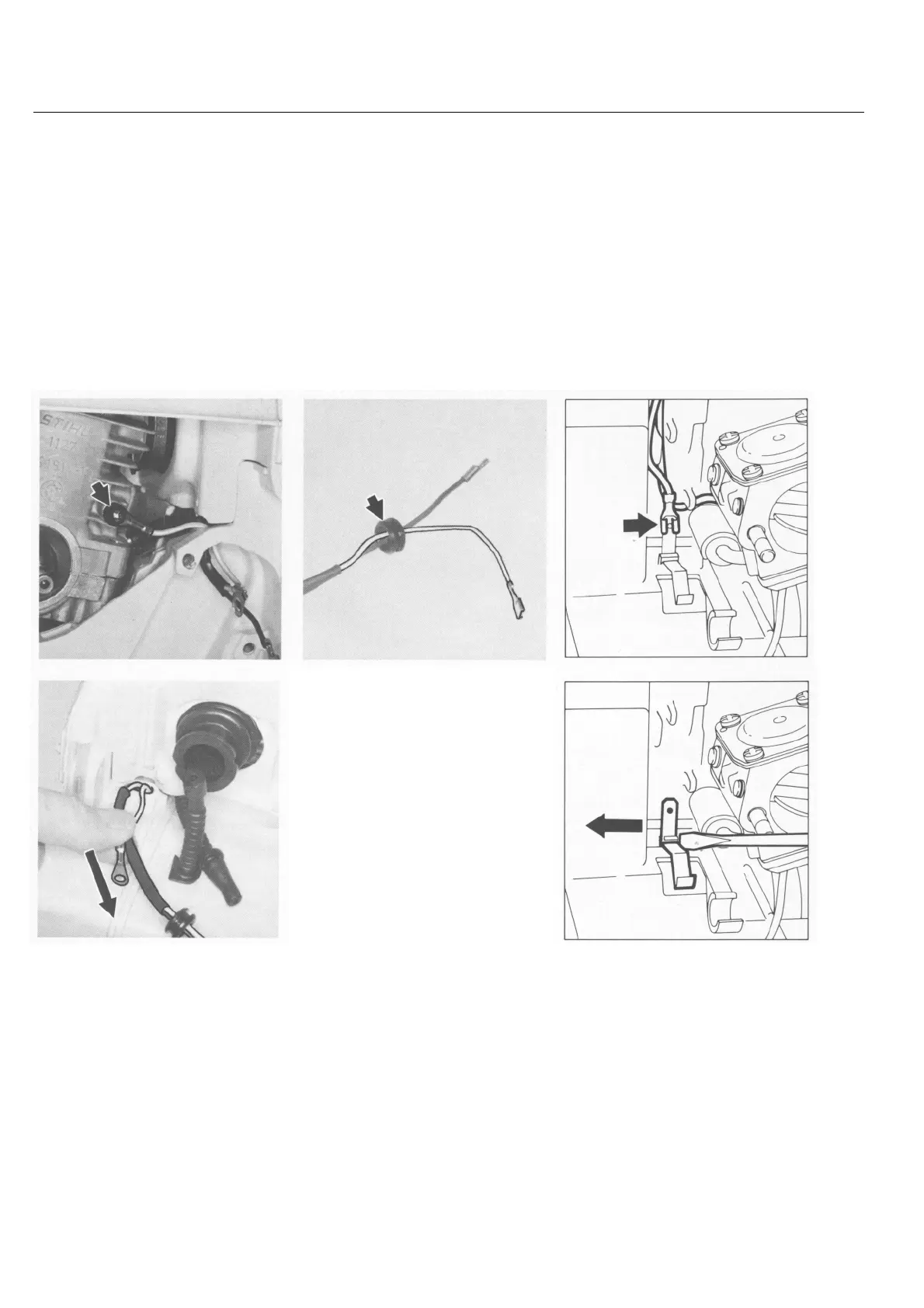

Top:
Ground wire fastening
screw
Bottom:
Withdrawing short circuit wire and
ground wire
Grommet
Top:
Ground wire terminal
Bottom:
Removing contact spring
