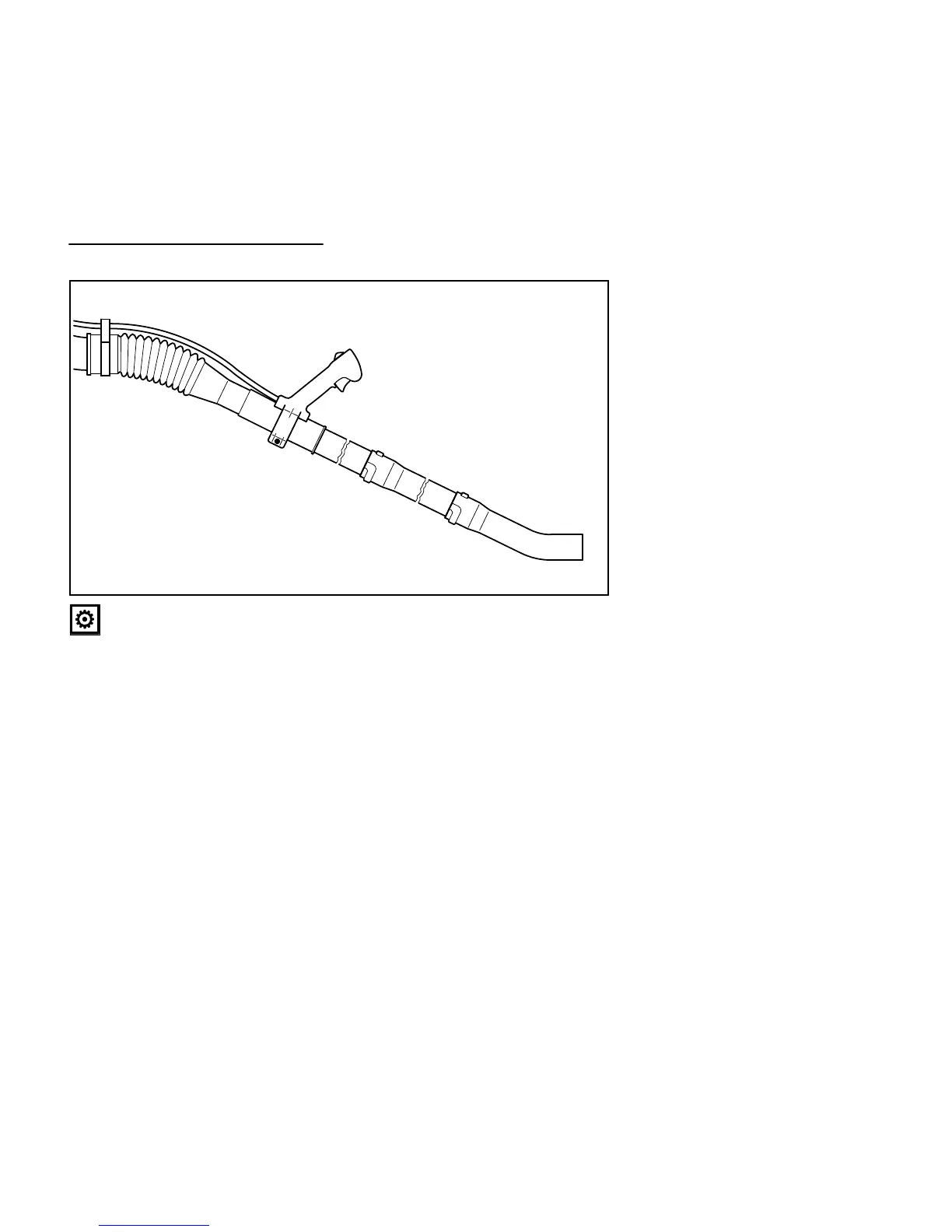

Mounting the Blower Tube
Operate the machine only with the
blower tube and nozzle properly
mounted.
N Attach the throttle cable (4) to the
retainer (5).
N Push the blower tube (6) into the
pleated hose (7).
N Push blower tube (8) onto the end of
the blower tube (6) and rotate it
clockwise until the bayonet coupling
locks.
N Push the nozzle (9) onto the blower
tube (8) and rotate it clockwise until
the bayonet coupling locks.
N Rotate the pleated hose (7)
counterclockwise as far as stop and
leave it in that position.
N Turn the control handle (10)
counterclockwise to the horizontal
position.
N Rotate the complete blower tube
assembly until the nozzle discharge
opening points in the same direction
as the control handle.
N Tighten down the clamp screw (11)
firmly.
