Stihl BR 800 X User Manual

BR 800, BR 800 X
English
13

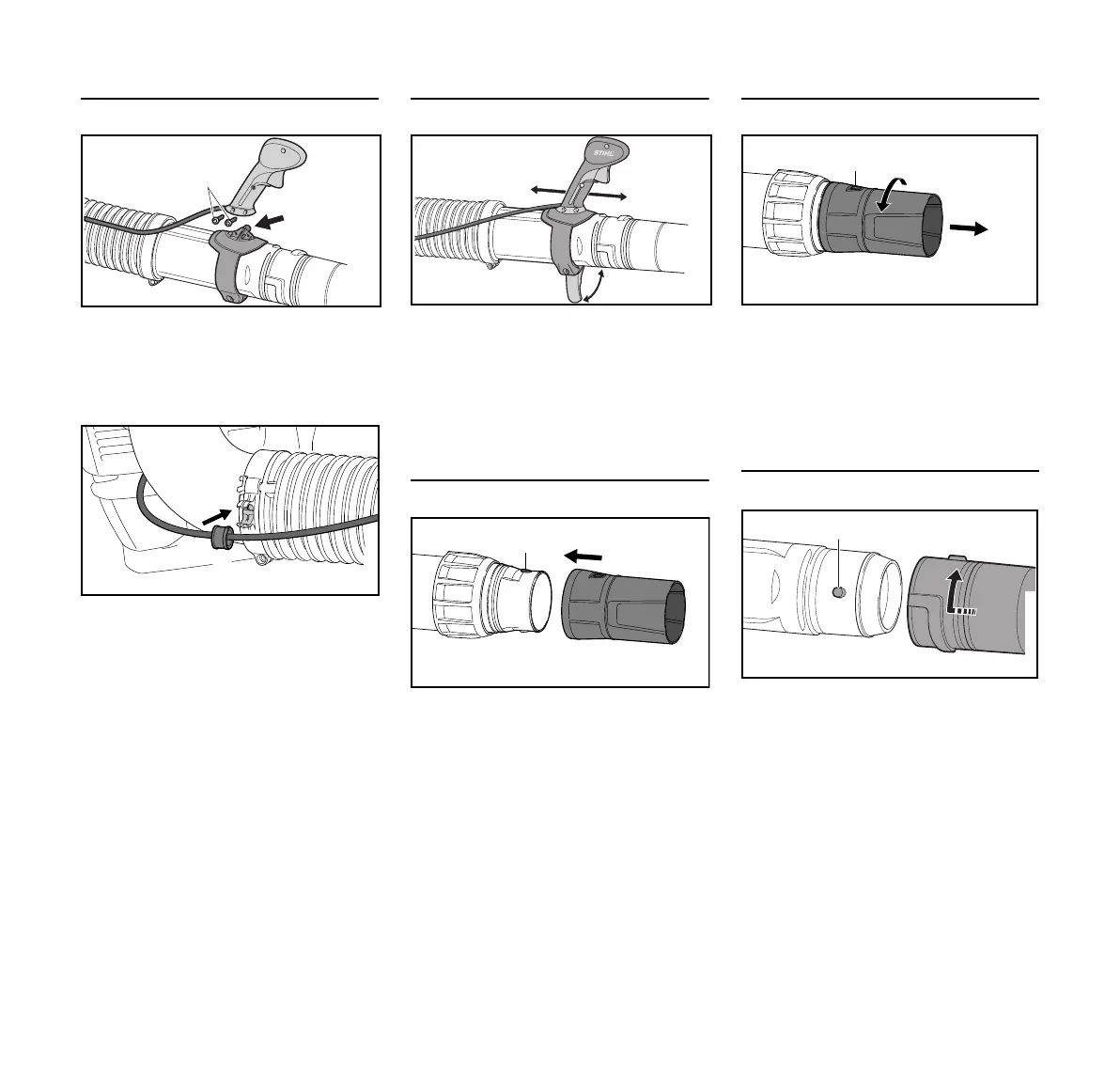

Mounting the Control Handle
N Push the control handle (1) onto the
mount (2) .
N Insert and tighten down the
screws (3) firmly.
N Engage the throttle cable (4) with
sleeve (5) in the retainer (6).
Adjusting the Control Handle
N Open the clamping lever (3).
N Move the control handle (1) along
the blower tube (2) to the most
comfortable position.
N Close the clamping lever (3).
Mounting the Nozzle (BR 800 C)
N Push the nozzle (1) onto the blower
tube (2) and engage it on the
lugs (3).
Mounting the Nozzle (BR 800 C)
N Rotate the nozzle (1) in the direction
of the arrow until the lugs (3) are
covered.
N Pull the nozzle (1) off the blower
tube (2).
Mounting the Nozzle (BR 800 X)
N Push the nozzle (1) onto the blower
tube (2) and engage it on the
lugs (3).
N Rotate the nozzle (1) in the direction
of arrow as far as the stop.
1
3
2
0000-GXX-2045-A1
4
6
5
0416BA008 KN
0416BA007 A1
1
2
3
3
0416BA005 KN
1
2
1
3
0416BA006 KN
2
3
1
2
0000-GXX-3989-A0
