FR 130 T
English
17
STIHL brushcutter models with the letter
T in their designations have a split drive
shaft for mounting STIHL KombiTools.

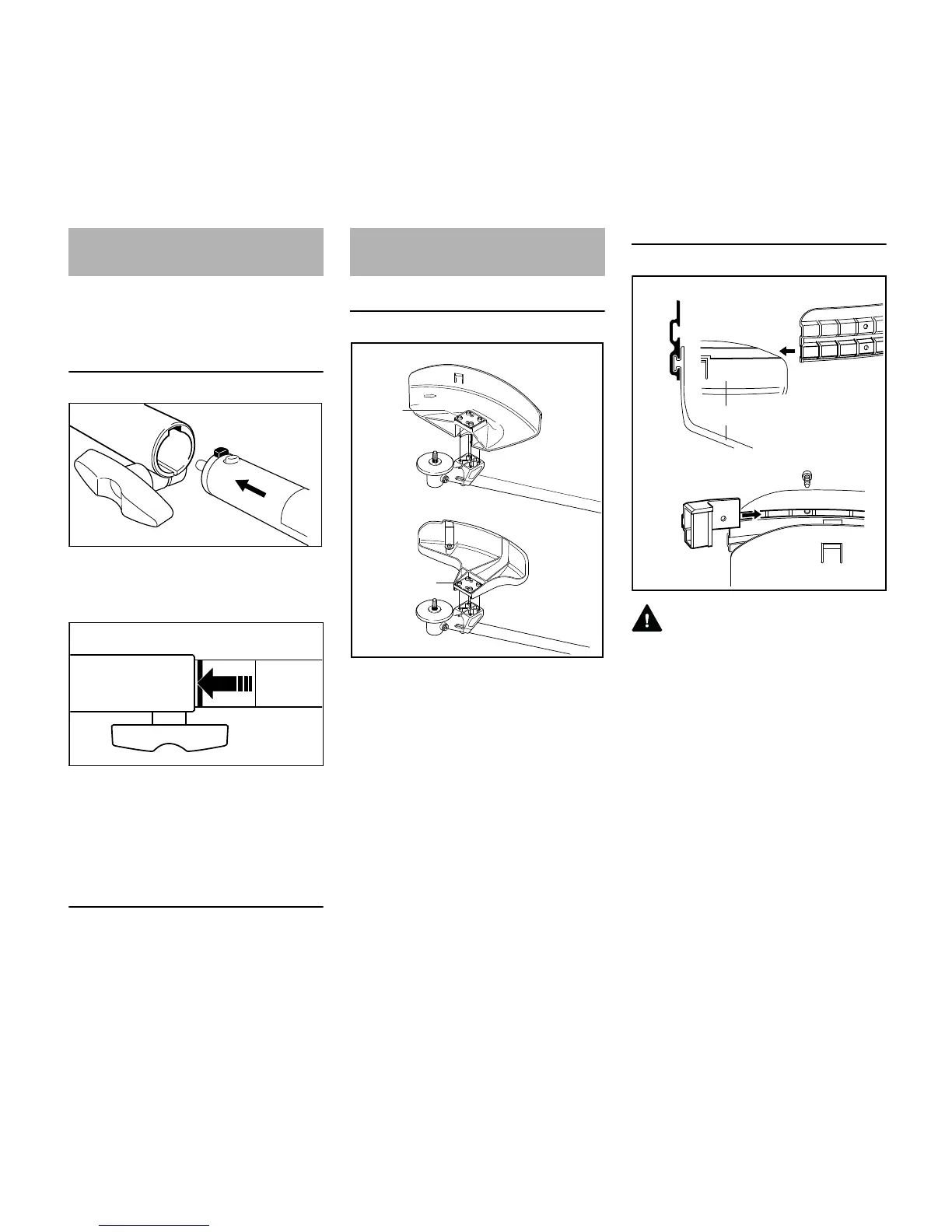

Mounting the KombiTool
N Push the lug (1) on the drive tube
into the slot (2) in the coupling
sleeve as far as stop.
When correctly installed, the red line (3)
(arrow point) must be flush with the end
of the coupling sleeve.
N Tighten down the star knob (4)
firmly.
Removing the KombiTool
N Reverse the above sequence to
remove the drive tube.
Mounting the Deflector
1 Deflector for mowing attachments
2 Deflector for mowing heads
Deflectors (1 and 2) are both mounted to
the gearbox in the same way.
N Place the deflector on the gearbox
flange.
N Insert the screws (3) and tighten
them down firmly.
Fitting the Skirt and Blade
WARNING
These parts must be fitted to the
deflector (1) when you use a mowing
head.
N Slide the lower guide slot of the skirt
(4) onto the deflector (1) – it must
snap into position.
N Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
N Insert the screw and tighten it down
firmly.
Mounting the KombiTool
