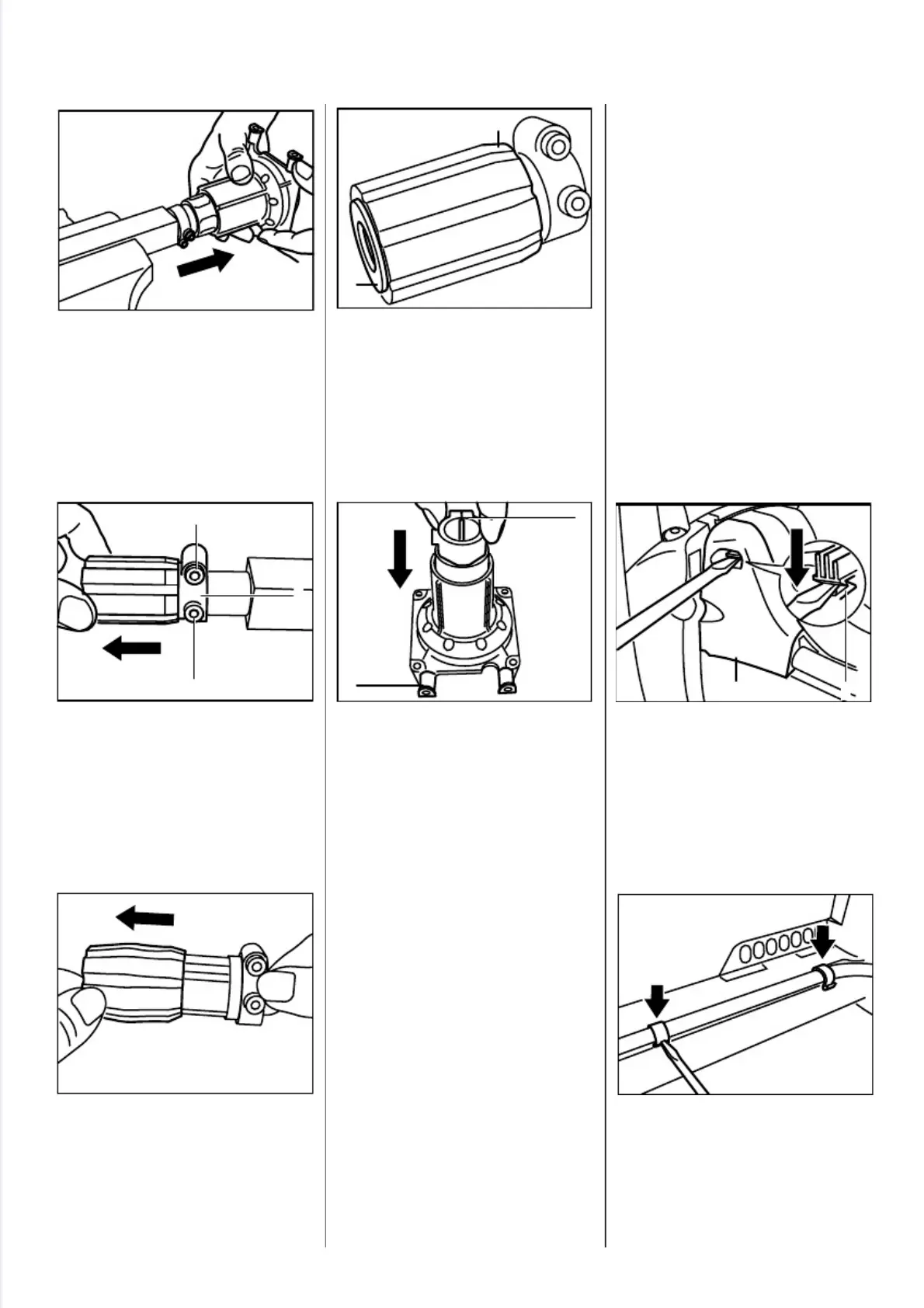

- Clamp installing tool in vice.
•
Pull clutch housing off
the rubber element.
•
Release clamp screw (1) and
fixing screw (2) if necessary.
•
Pull the AV sleeve (3) off the
installing tool.
•
Pull the rubber element off the
AV sleeve.
•
Push the rubber element,
tapered end (1) first, onto the AV
sleeve until the flange (2) is
behind the rubber element.
- Coat rubber element with a lubri-
cant (e.g. washing-up liquid).
•
Push the rubber element into
clutch housing as far as stop so
that slot (1) is opposite the lug
(2).
Assemble all parts in the reverse
sequence.
- Retaining ring must locate
properly in the groove in the
clutch housing.
- Tighten down clutch housing
mounting screws to 6.0 Nm
(4.4 lbf.ft).
The anti-vibration (AV) connection
between the engine and drive tube
consists of four rubber buffers in
the AV housing.
- Remove the control handle - see
10.1.
Rubber buffers
•
Press snap hook (1) down and
remove the cover (2).
•
Carefully ease the cable
retainers out of the AV housing.
9.2 Repair
(FS 300...450)
2
5
0
R
A
1
9
4
V
A
3
9
2
R
A
1
3
4
2
1
3
V
A
3
9
2
R
A
1
3
5
V
A
3
9
2
R
A
1
3
6
2
1
V
A
2
5
0
R
A
1
9
5
1
2
V
A
2
5
0
R
A
1
9
6
2 1
V
A
2
5
0
R
A
1
9
7
V
A
48 FS 120, 200, 300, 350, 400, 450, FR 350, 450
