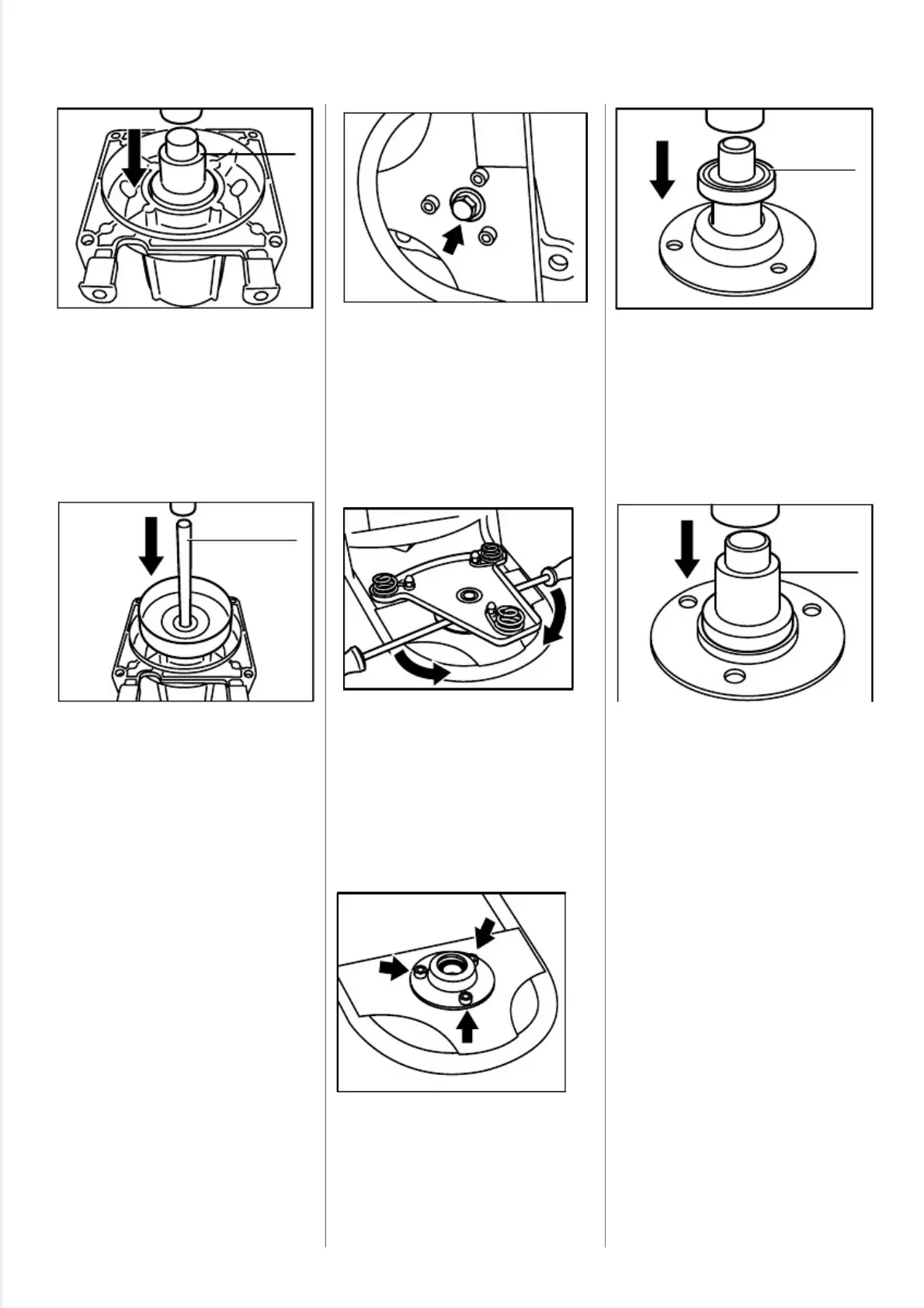

Use press arbor (1) 1118 893
7200 to press home ball bearing
as far as stop.
•
Use drift (1) 1108 893 4700 or
1110 893 4700 to press home
clutch drum as far as stop.
- On FS 300...450, adjust gap -
see 9.2.
- Tighten down clutch housing
mounting screws to 8.5 Nm (6.3
lbf.ft).
- On FS 120/200, tight down
clutch housing mounting screws
to 6.0 Nm (4.4 lbf.ft).
- Remove the powerhead from the
support frame -see 9.3.
•
Remove screw from support
frame.
•
Lever the support frame out of
the ball bearing.
•
Take out the screws.
- Remove bearing housing from
support frame.
•
Use press arbor (1) 1118 893
7200 to remove ball bearing from
bearing housing.
Reassemble in the reverse
sequence.
•
Use press arbor (1) 1118 893
7200 to press home ball bearing
as far as stop.
- Tighten down bearing housing
mounting screws to 10.0 Nm
(7.5 lbf.ft).
- Tighten down support frame
mounting screw to 20.0 Nm (15
lbf.ft).
2
5
0
R
A
2
1
8
1
V
A
2
5
0
R
A
2
1
7
1
V
A
12. SUPPORT FRAME (FR 350/450)
12.1 Repair
2
5
0
R
A
2
5
1
V
A
2
5
0
R
A
2
5
4
1
V
A
2
5
0
R
A
2
5
2
V
A
2
5
0
R
A
2
5
5
1
V
A
2
5
0
R
A
2
5
3
V
A
58 FS 120, 200, 300, 350, 400, 450, FR 350, 450
