FS 130, FS 130 R
English
27

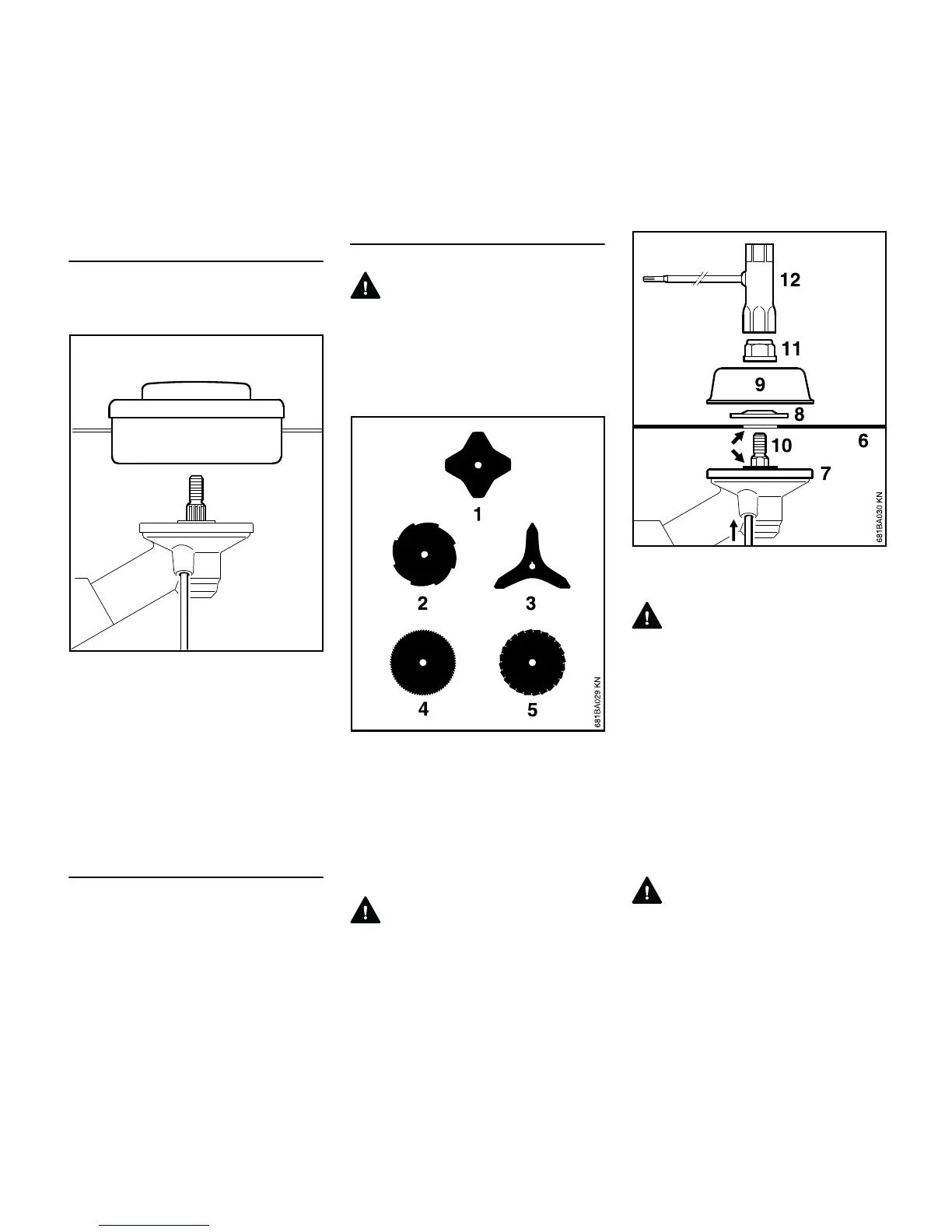

Fitting Mowing Head with Screw
Mounting
Keep the instruction leaflet for the
mowing head in a safe place.
N Screw the mowing head
counterclockwise on to the shaft (1)
as far as stop.
N Block the shaft.
N Tighten down the mowing head
firmly.
NOTICE
Remove the tool used to block the shaft.
Removing the Mowing Head
N Block the shaft.
N Unscrew the mowing head
clockwise.
Mounting Metal Cutting Attachment
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Check direction of rotation of cutting
attachment
Cutting attachments with 3 or
4 blades (1, 3) may point in either
direction – these cutting attachments
must be turned over regularly to help
avoid one-sided wear.
The cutting edges of cutting
attachments 2, 4 and 5 must point
clockwise.
WARNING
Direction of rotation is indicated by an
arrow on the inside of the deflector.
N Place the cutting attachment (6) on
the thrust plate (7).
WARNING
Collar (see arrow) must engage the
cutting attachment's mounting hole.
Securing the cutting attachment
N Fit the thrust washer (8) – convex
side must face up.
N Fit the rider plate (9).
N Block the shaft (10).
N Use the combination wrench (12) to
screw the mounting nut (11) on to
the output shaft counterclockwise
and tighten it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
