FS 130, FS 130 R
English
47
Definitions
1 Fuel Filler Cap
For closing the fuel tank.
2 Carburetor Adjusting Screws
For tuning the carburetor.
3 Starter Grip
The grip of the pull starter, for
starting the engine.
4 Spark Plug Boot
Connects the spark plug with the
ignition lead.
5 Muffler with Spark Arresting Screen
Muffler reduces engine exhaust
noise and diverts exhaust gases
away from operator.
Spark arresting screen is designed
to reduce the risk of fire.
6 Bike Handle
For easy control of the machine with
both hands during cutting work.
7 Throttle Trigger
Controls the speed of the engine.
8 Slide Control
For starting throttle, run and stop.
Keeps the choke partially open
during starting and switches off the
ignition to stop the engine.
9 Throttle Trigger Lockout
Must be depressed before the
throttle trigger can be activated.
10 Throttle Cable Retainer
Secures the throttle cable to the
drive tube.
11 Carrying Ring
Connects the trimmer/brushcutter to
the harness.
12 Manual Fuel Pump
Provides additional fuel feed for a
cold start.
13 Choke Knob
Eases engine starting by enriching
mixture.
14 Air Filter Cover
Encloses and protects the air filter
element.
15 Fuel Tank
For fuel and oil mixture.
16 Machine Support
For resting machine on the ground.
17 Handle Support
Connects the shaft and bike handle.
18 Wing Screw
Locks handlebar in selected
position.
19 Loop Handle
For easy control of machine during
cutting work.
20 Barrier Bar
Helps keep user's feet and legs
clear of the cutting tool.

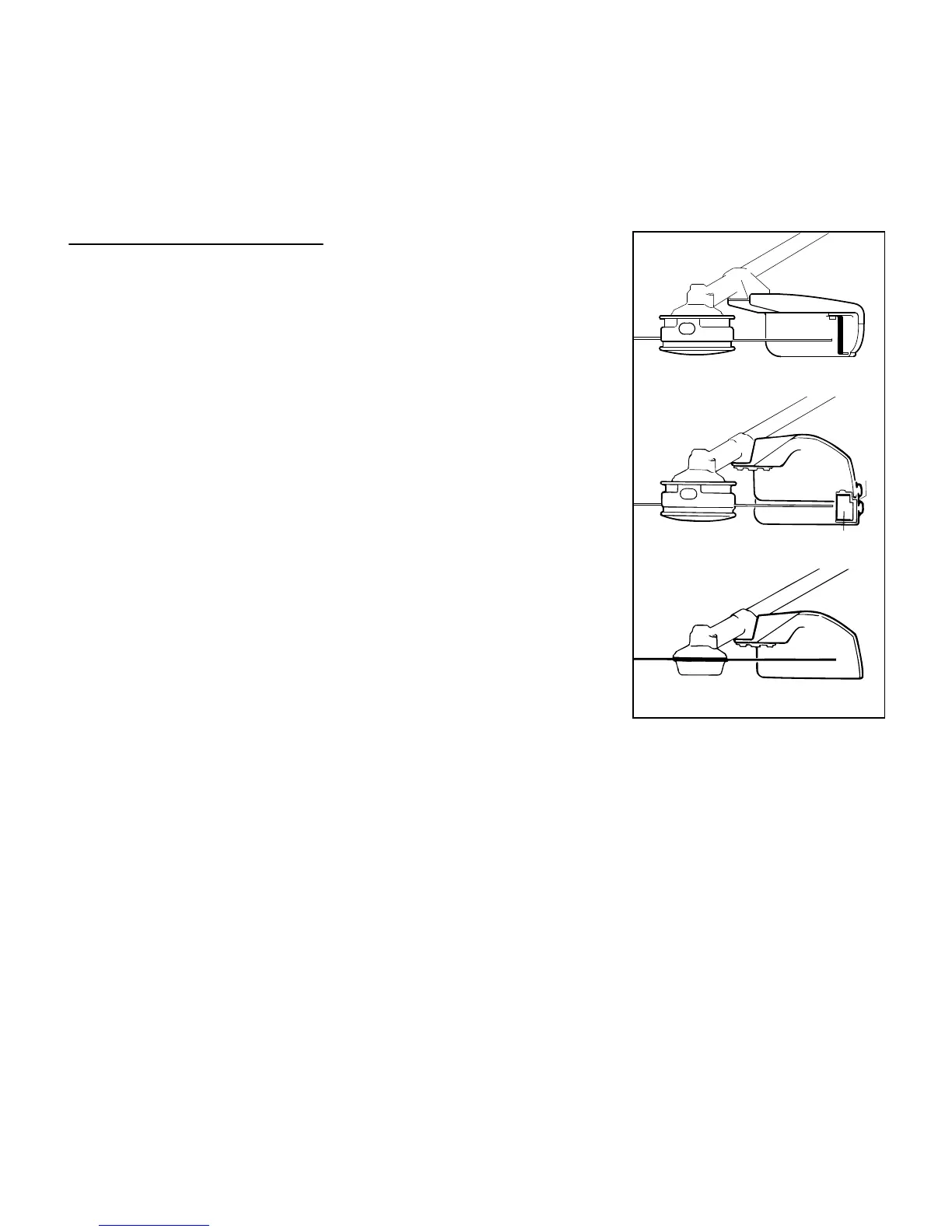

1 Mowing Head
2 Deflector for Mowing Heads
3 Line Limiting Blade
4 Deflector with Skirt for all Mowing
Attachments
5 Skirt
6 Metal Mowing Tool
