Stihl FS 130 Manual

16 Series 4180 Powerhead

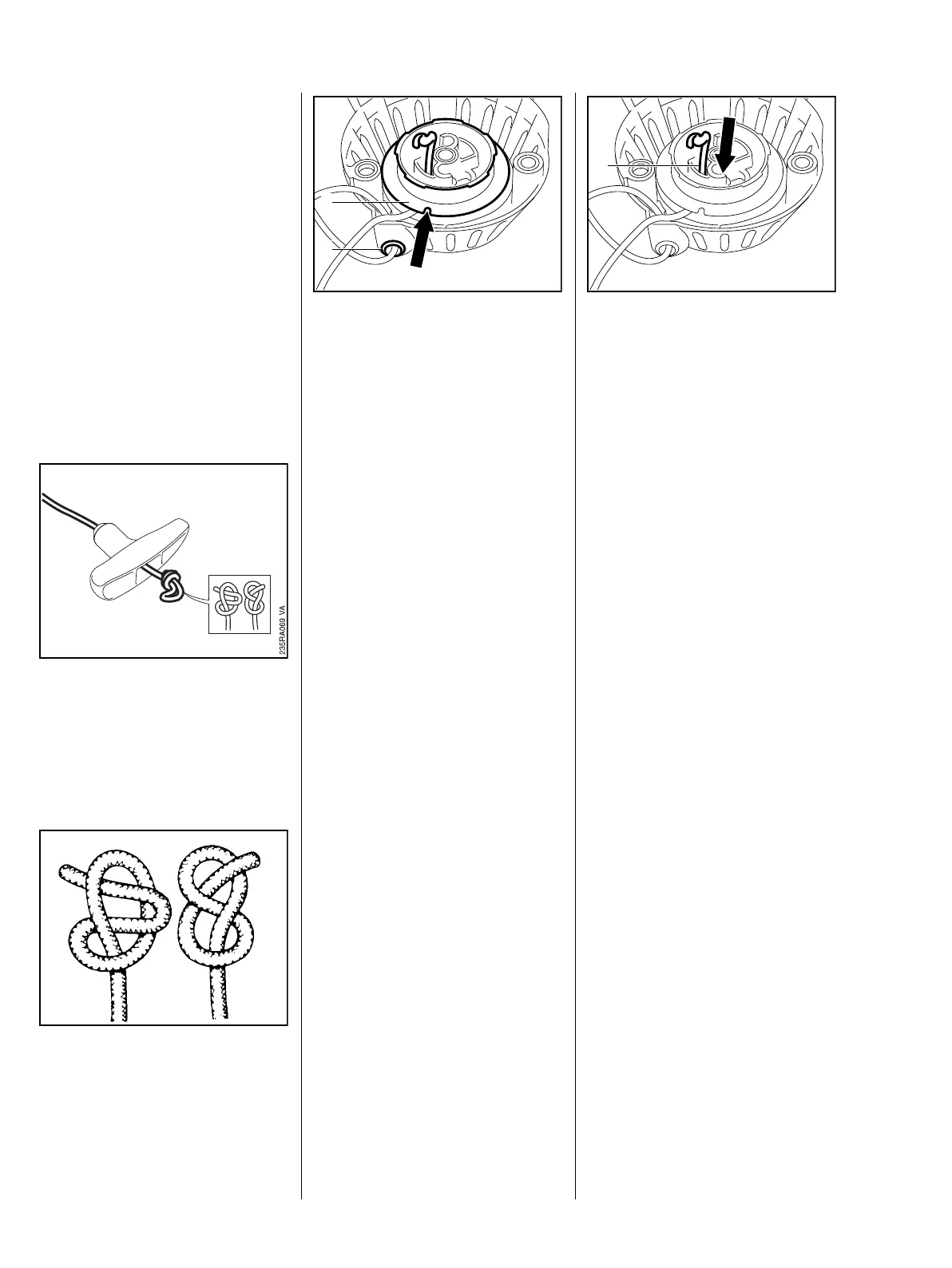

– Remove the rewind starter,
b 5.2
– Remove remaining rope from the
rope rotor and starter grip.
: Thread end of new rope through
the underside of the starter grip
and pull it out.
: Secure the end of the rope with
one of special knots shown.
– Pull the rope back into the starter
grip.
VA
982RA036
– Thread the other end of the rope
through the guide bush (2) from
outside.
– Thread the rope through the hole
in the side of the rope rotor (1).
: Pull out the rope and secure it
VA
249RA028
1
2
with a simple overhand knot.
: Pull the rope back into the rotor
so that the knot locates in the
recess (1).
– Tension the rewind spring,
b 5.4.1
1
VA
249RA029
5.4 Starter Rope

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
