Stihl FS 130 Manual

47Series 4180 Powerhead

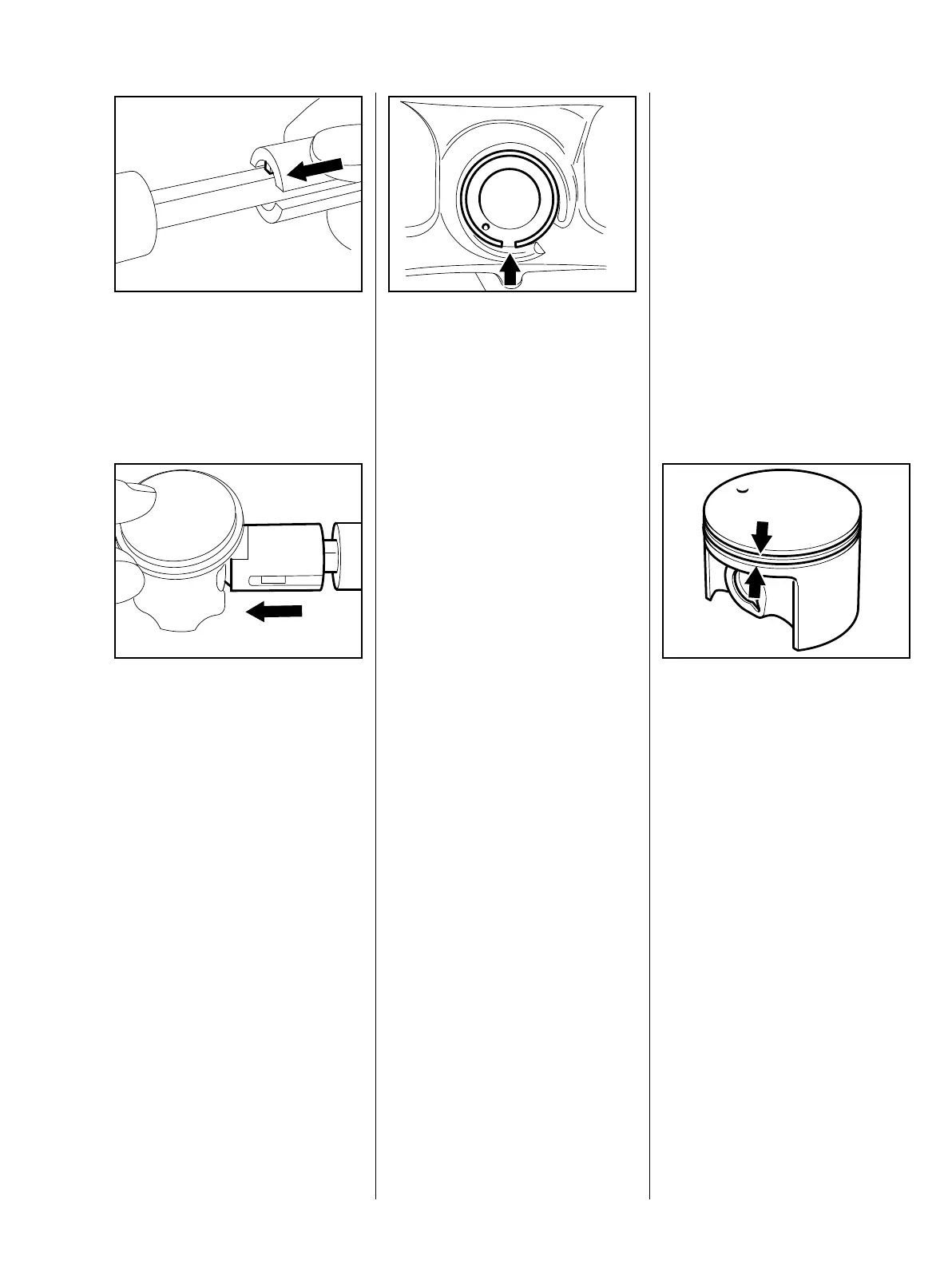

: Remove the sleeve and slip it
onto the other end of the shank.
Inner pin must point towards flat
face.
VA
249RA148
: Apply the installing tool to the
piston boss, hold the piston
steady, center the tool shank
exactly and press home until the
snap ring slips into the groove.
VA
249RA149
: Fit the snap ring (1) so that its gap
(arrow) points either up or down.
– Install the crankshaft, b 7.8.3.
VA
249RA150
– Remove the piston rings from the
piston.
– Use a piece of old piston ring to
scrape the grooves clean.
– Install new piston rings.
– Fit piston rings so that their gaps
are offset 120 degrees.
VA
249RA090
– Install the piston, b 7.8.4
7.8.5 Piston Rings

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
