38 Series 4180 Powerhead

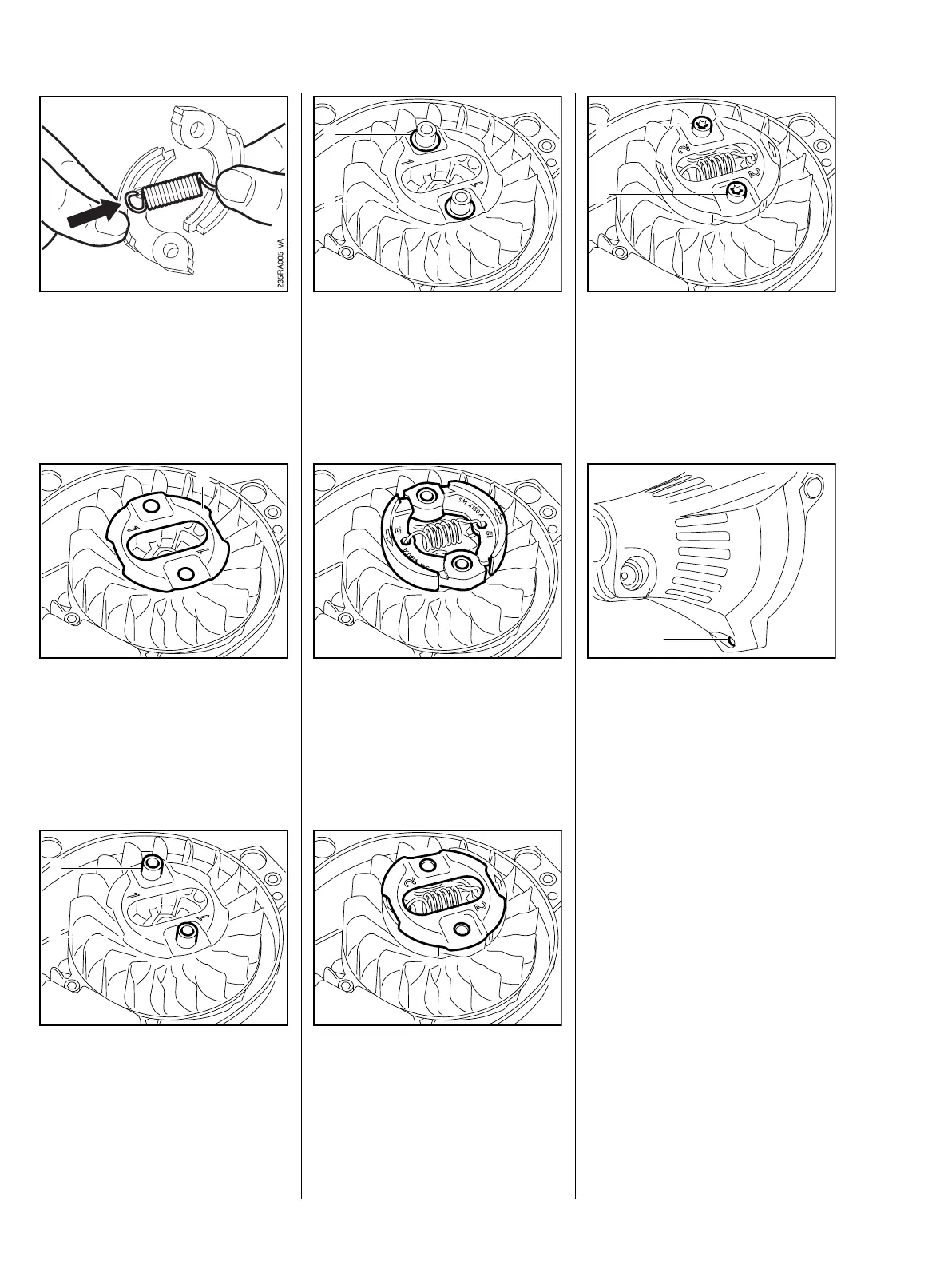

: Attach spring to clutch shoes.

: Place cover plate (1), with "1"

facing up, on the flywheel.

249RA065

: Fit sleeves (1 and 2) on cover

plate and press into the flywheel

249RA066

: Fit corrugated washers (1 and 2).

249RA067

: Fit clutch shoes with lettering

facing up.

249RA068

: Fit the cover plate with "2" facing

up.

249RA069

: Fit screws (1 and 2) and tighten

them down firmly,

b 3.4

249RA070

– Fit the fan housing on the engine.

: Tighten down the screw (1)

firmly, b 3.4

249RA060

7.6.2 Assembling and

Installing

Other manuals for Stihl FS 130

Questions and Answers:

Need help?

Do you have a question about the Stihl FS 130 and is the answer not in the manual?

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
