Stihl FS 240 - Deflector and Attachment Mounting

FS 240, FS 240 R
English
22

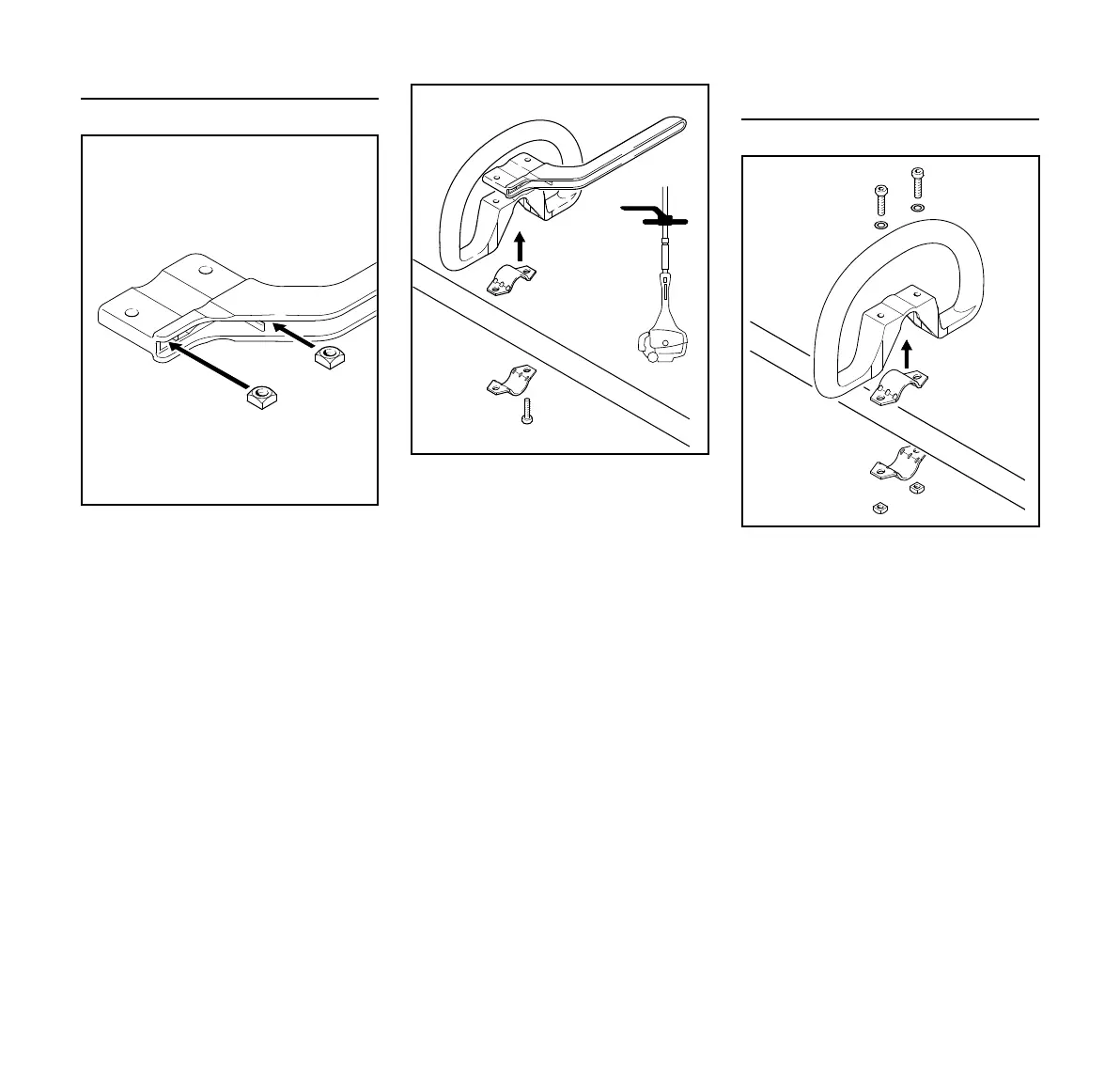

Mounting Loop Handle with Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Position the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Securing the Loop Handle".
Mounting the Loop Handle without
Barrier Bar
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Position the clamp (6) against the
drive tube.
N Line up the holes.
N Fit washers (8) on the screws (7)
and insert the screws in the holes.
Fit the square nuts (1) and screw
them down as far as stop.
N Go to "Securing the Loop Handle".
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
7
8
5
4
1
6
1
3
8
7
002BA614 KN
