Stihl FS 250 R User Manual

FS 250, FS 250 R
English
34
N Remove the screw plug (1).
N If no grease can be seen on the
inside of the screw plug (1): Screw
the tube (2) of STIHL gear lubricant
(special accessory) into the filler
hole.
N Squeeze no more than 5 g (1/5 oz)
grease into the gearbox.
NOTICE
Do not completely fill the gearbox with
grease.
N Unscrew the tube (2).
N Insert the screw plug (1) and tighten
it down firmly.

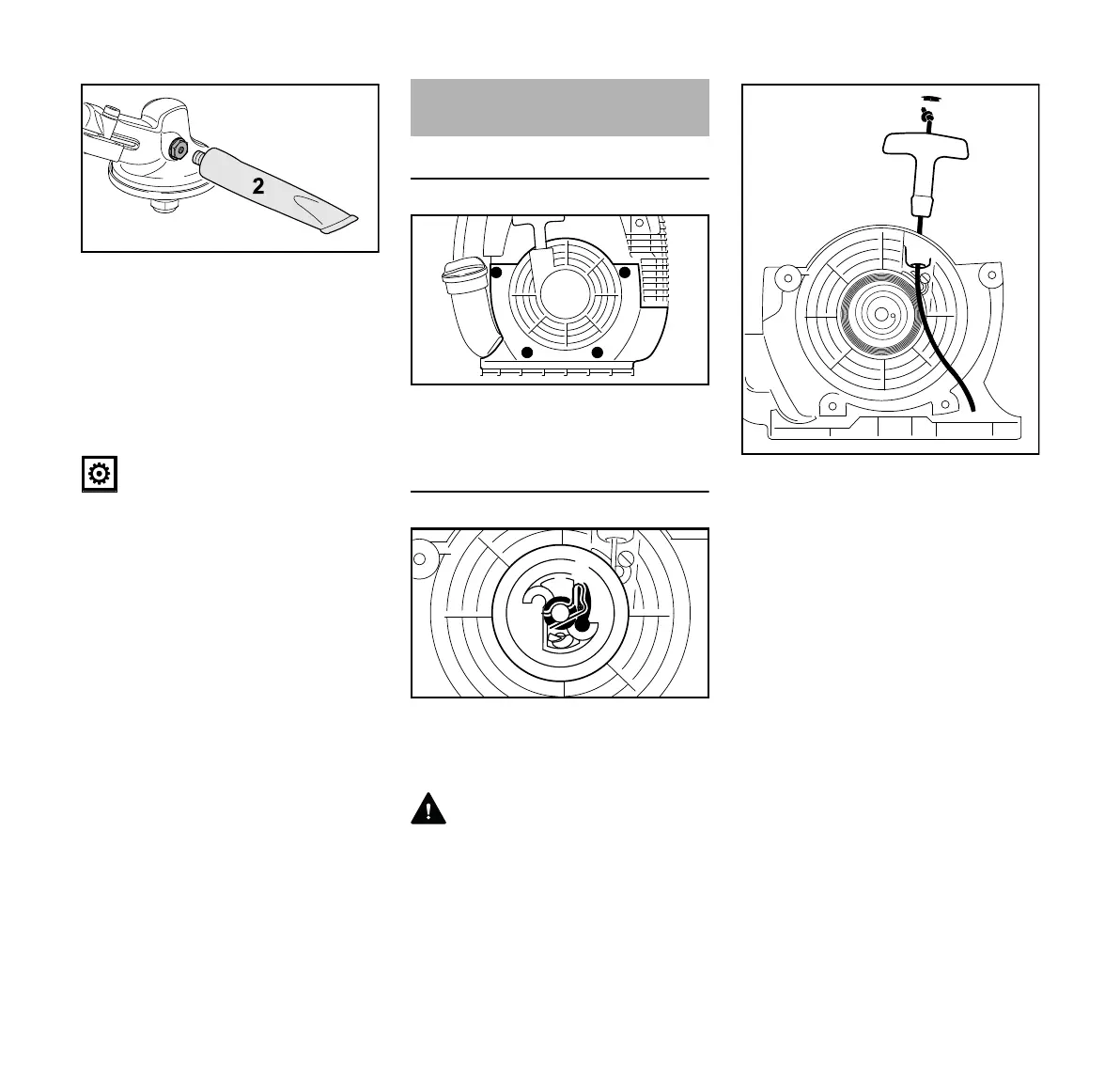

Removing the Fan Housing
N Take out the screws (1).
N Remove the fan housing.
Replacing the Starter Rope
N Remove the spring clip (2).
N Carefully remove the rope rotor with
washer (3) and pawl (4).
WARNING
The rewind spring may pop out and
uncoil during this operation – take care
to avoid the risk of injury.
N Pry the cap (5) out of the grip.
N Remove the remaining rope from
the rotor and starter grip.
N Tie a simple overhand knot in the
new rope and then thread it through
the top of the grip and the rope
bushing (6).
N Refit the cap in the grip.
1
0000-GXX-0536-A0
Replacing the Starter Rope
and Rewind Spring
1
1
1
1
256BA075 KN
3
2
4
256BA032 KN
6
5
256BA033 KN
