Stihl FS 250 R - Mounting the Bike Handle

FS 250, FS 250 R
English
14

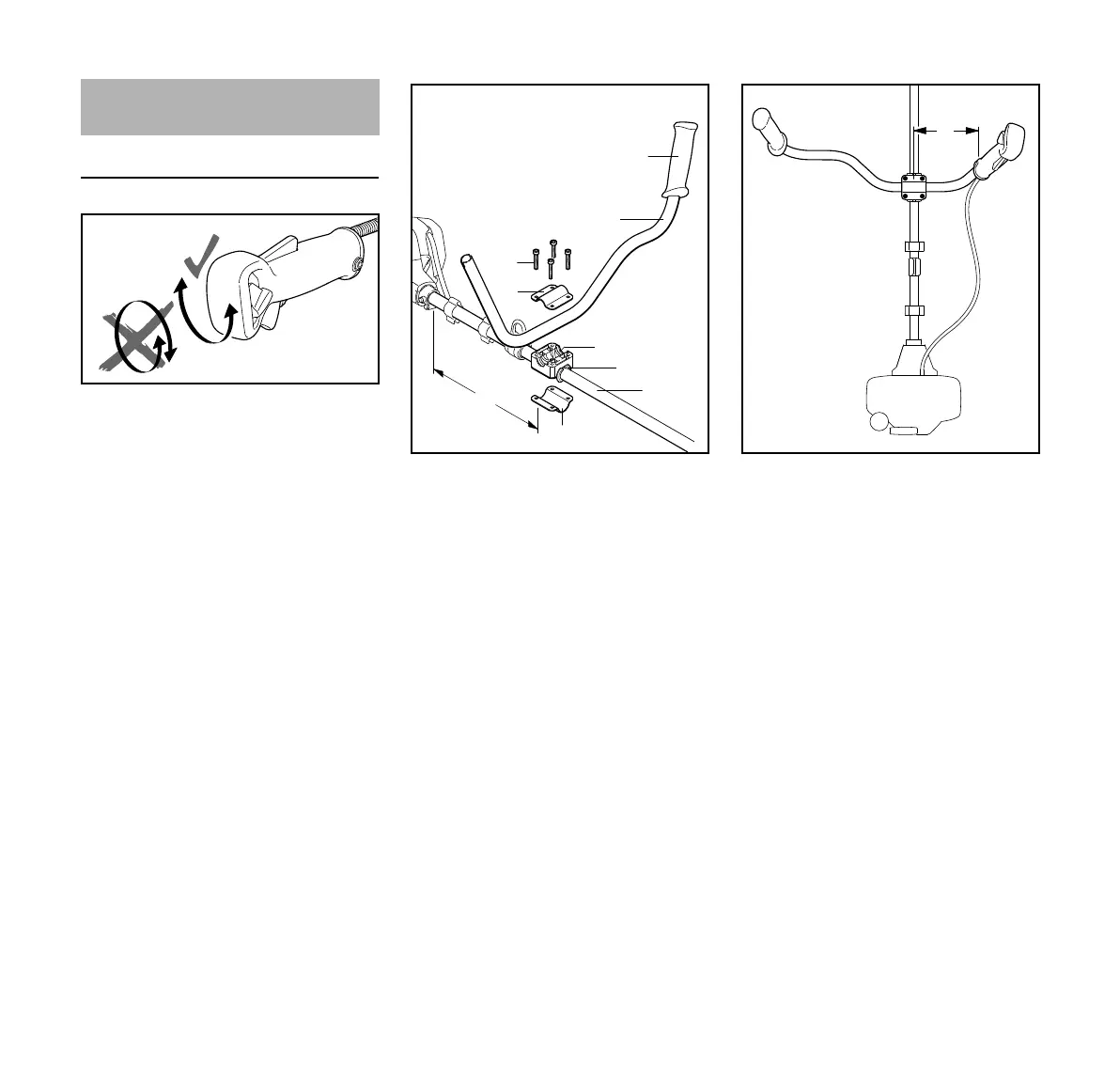

Mounting the Handlebar
Do not rotate the control handle between
unpacking and mounting it on the
handlebar; see also chapter on
"Adjusting the Throttle Cable".
N Mount the handlebar (1) on the
drive tube (2) about 40 cm (15 in)
(A) forward of the engine housing.
N Position the clamp (3) and handle
support (4) on the sleeve (5) on the
drive tube (2).
N Place the handlebar (1) in the
handle support so that distance B is
no more than 15 cm (6 in) – the
rubber handle (6) must be on the left
(viewed from engine).
N Place the clamp (7) on the handle
support.
N Insert the screws (8) through the
holes in the parts and screw them
into the clamp (3) as far as stop.
N Line up the handlebar.
N Tighten down the screws firmly.
Mounting the Bike Handle
0208BA075 KN
3
A
7
8
4
1
2
0208BA009 KN
6
5
6
1
0000-GXX-1239-A0
B
