FS 40, FS 40 C, FS 50, FS 50 C
English
18

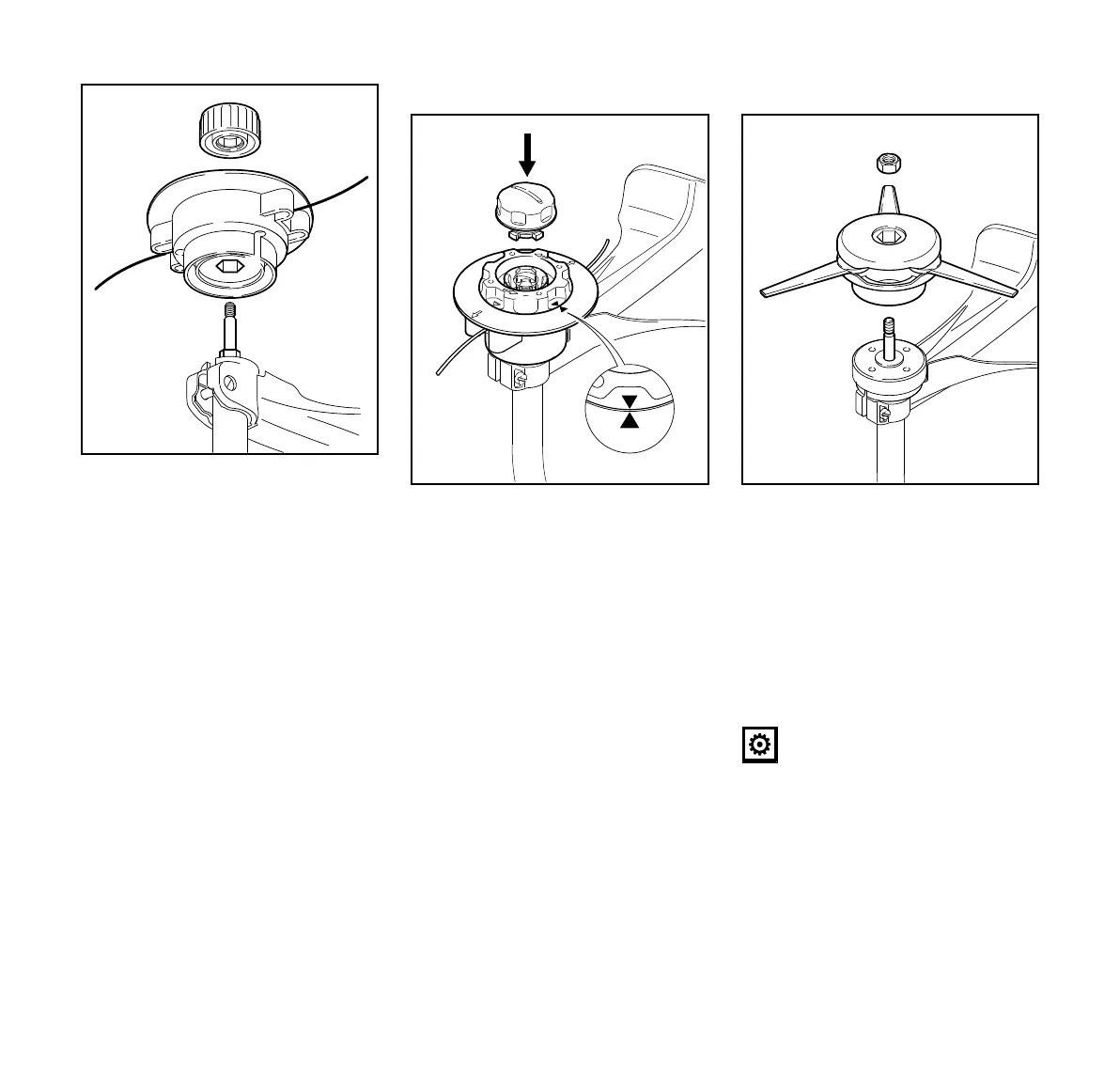

N Slip the mowing head (2) over the
shaft (5) and engage hex recess (7)
on the external hexagon (6).
N Fit the cap (8) on the mowing head
– screw it clockwise on to the shaft
as far as stop and tighten it down
firmly.
STIHL AutoCut C 5-2
N Slip the mowing head (2) on to the
shaft – as AutoCut 5-2.
N Turn the spool (9) clockwise until
the two arrow heads line up –
secure the spool in this position.
N Insert the cap (8) in the spool, press
it down as far as stop and turn it
clockwise at the same time.
N Turn the cap until you feel
resistance and then tighten it down
firmly by hand.
STIHL PolyCut 6-3
N Fit the thrust plate on the shaft.
N Insert the nut (10) in the mowing
head.
N Screw the mowing head (11)
clockwise on to the shaft (5) as far
as stop.
N Block the shaft – see "Blocking the
Shaft".
N Tighten down the mowing head.
Remove the locking pin.
