27
N If the rewind spring needs to be
replaced, continue with "Replacing
the Rewind Spring".
N If the starter rope needs to be
replaced, continue with the
following chapter-

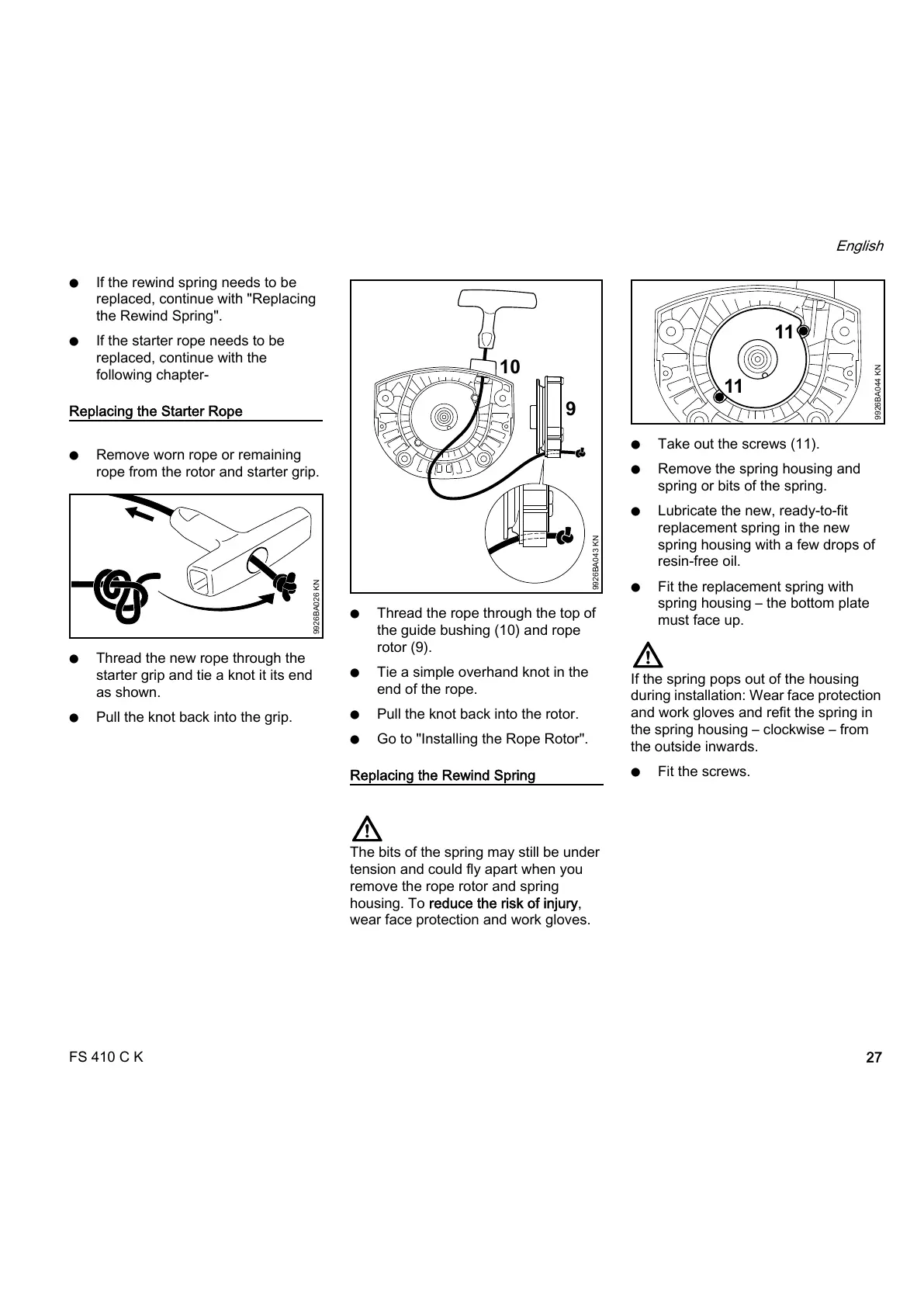

Replacing the Starter Rope
N Remove worn rope or remaining
rope from the rotor and starter grip.
N Thread the new rope through the
starter grip and tie a knot it its end
as shown.
N Pull the knot back into the grip.
N Thread the rope through the top of
the guide bushing (10) and rope
rotor (9).
N Tie a simple overhand knot in the
end of the rope.
N Pull the knot back into the rotor.
N Go to "Installing the Rope Rotor".
Replacing the Rewind Spring
The bits of the spring may still be under
tension and could fly apart when you
remove the rope rotor and spring
housing. To reduce the risk of injury,
wear face protection and work gloves.
N Take out the screws (11).
N Remove the spring housing and
spring or bits of the spring.
N Lubricate the new, ready-to-fit
replacement spring in the new
spring housing with a few drops of
resin-free oil.
N Fit the replacement spring with
spring housing – the bottom plate
must face up.
If the spring pops out of the housing
during installation: Wear face protection
and work gloves and refit the spring in
the spring housing – clockwise – from
the outside inwards.
N Fit the screws.
9926BA026 KN
10
9926BA043 KN
9
11
9926BA044 KN
11
