38
English / USA
FS 500, FS 550
1= Handlebar
2= Throttle trigger
3= Slide control
4= Throttle trigger interlock
5= Clamp screws
6= Hexagon head screw
7= Carrying strip
8= Fuel pump
9= Choke knob
10= Air diverter for carburetor
preheating
11= Carburetor box cover
12= Fuel tank
13= Spark plug boot with cover
14= Decompression valve
15= Muffler with spark arresting screen*
16= Starter grip
17= Carburetor adjusting screws
18= Fuel filler cap
19= Machine Support
20= Cutting tool
21= Deflector
* see "Guide to Using this Manual"

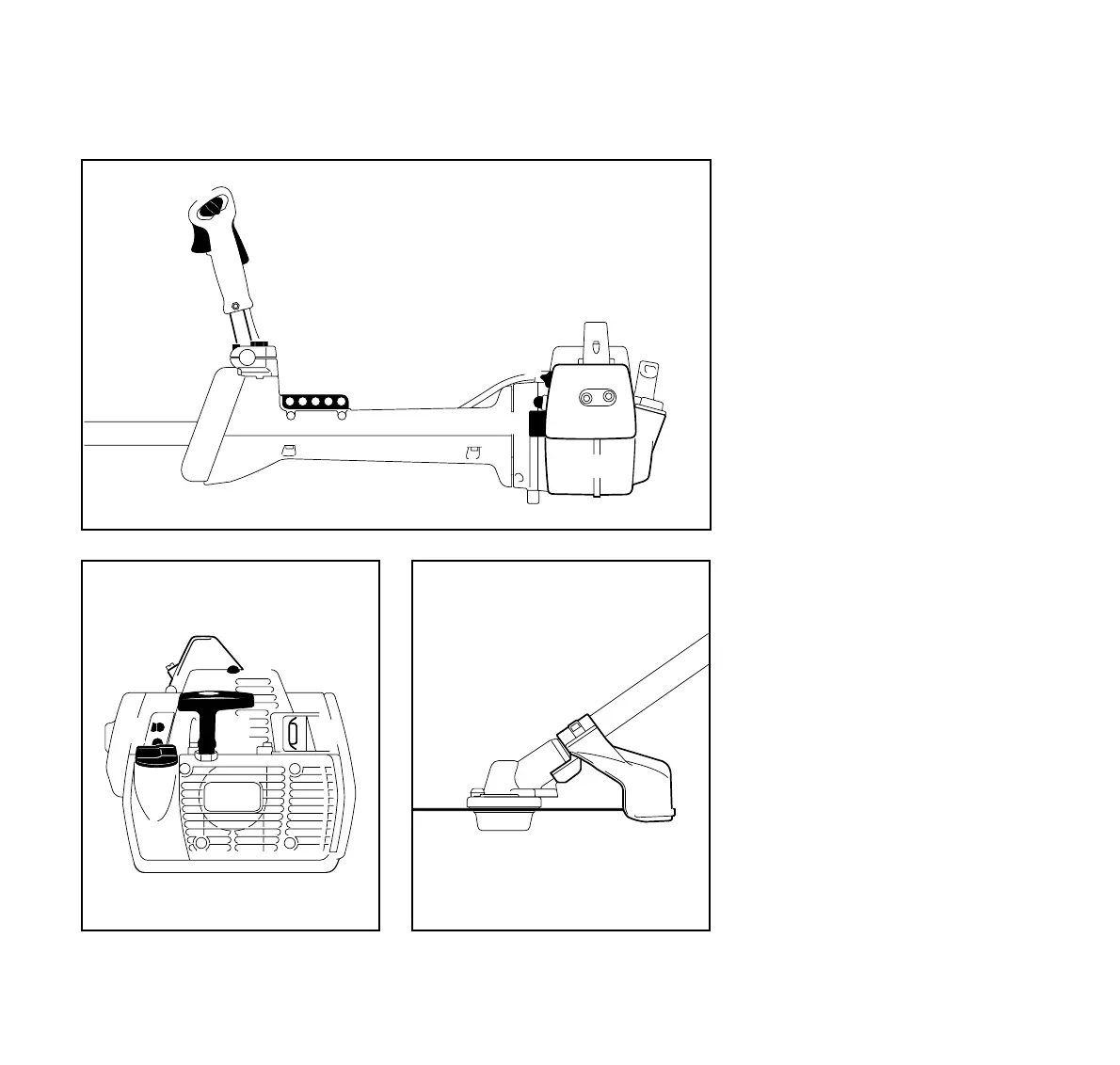

Parts and Controls
12
11
8
9
10
7
1
2
3
4
5
398BA035 KN
6
16
18
15
14
13
398BA036 KN
17
19
20
398BA037 KN
21
