Stihl FS 75 - Protective Tube

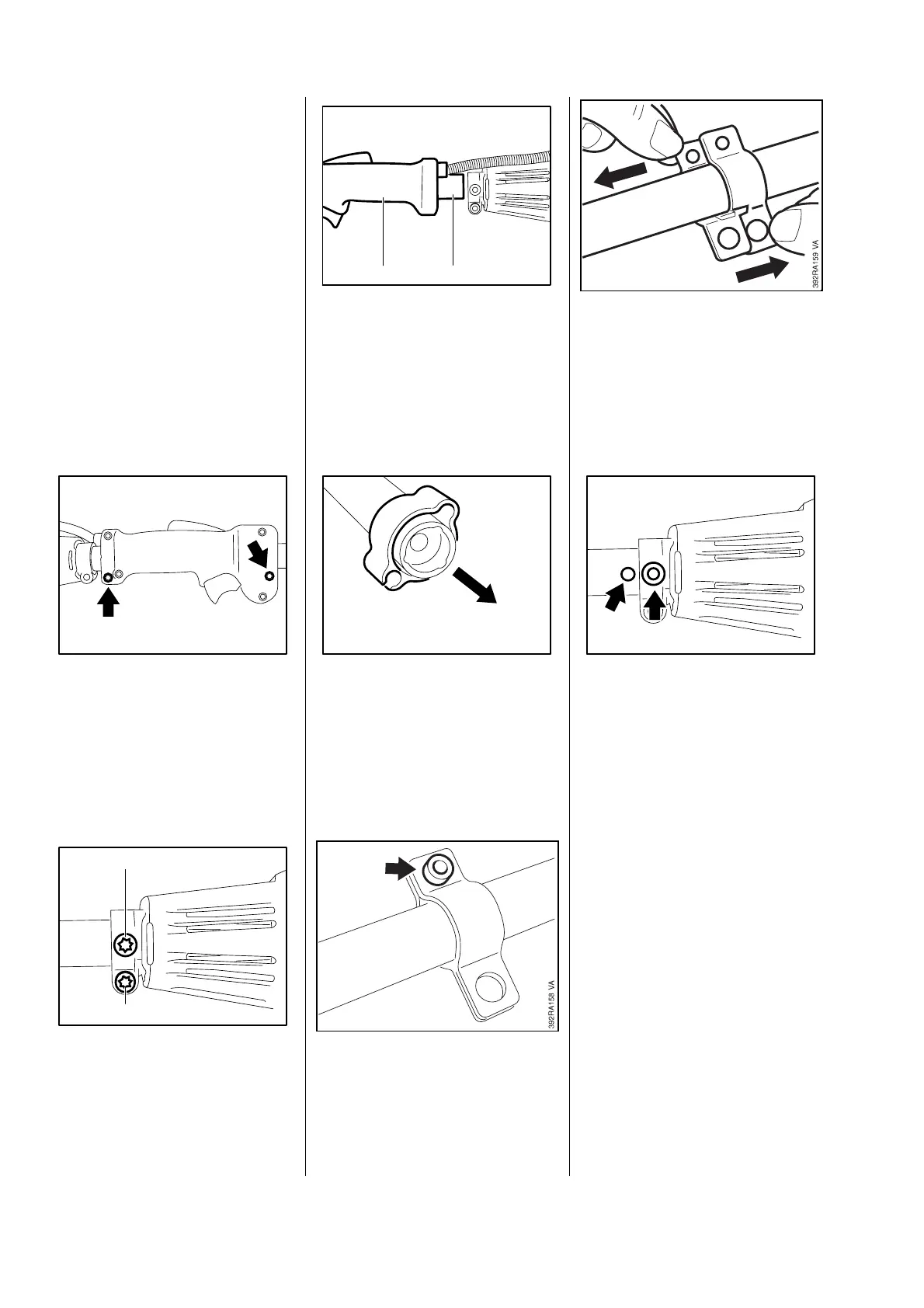

-Removedriveshaft,see10.3.
-Removecowhornhandleor
loopedhandle,see10.1or10.2.
•
Undoclampingscrewsoncon-
trolhandleofmachineswith
loopedhandle.
•
Removelocatingscrew(1)from
AVsleeve.
•
Undoclampingscrew(2).
-Pulloutprotectivetube.
•
Onmachineswithloopedhand-
le,pullprotectivetube(1)outof
controlhandle(2)atthesame
time.
•
Removethrottlecableholder,if
fitted.
•
Removeboltsfromcarryingring.
•
Pullycarryingringapartand
removeit.
Thepartsareinstalledinreverse
order.
•
Pushprotectivetubeinuntilthe
holeslineup.
-Torquelocatingscrewdownto
2.5Nmandclampingscrewto
5.5Nm.
392RA157
VA
392RA128
VA
392RA156
2
1
VA
392RA129
VA
2
1
10.4 Protectivetube
392RA139
VA
46
