Stihl FS 90 User Manual

24
English / USA
FS 90, FS 90 R
Fitting the Throttle Cable
Do not kink the throttle cable or lay
it in tight radii – make sure the
throttle trigger moves freely.
: Press the throttle cable (14) into the
retainers (15).
Throttle Cable Adjustment
: Go to chapter "Adjusting the
Throttle Cable".

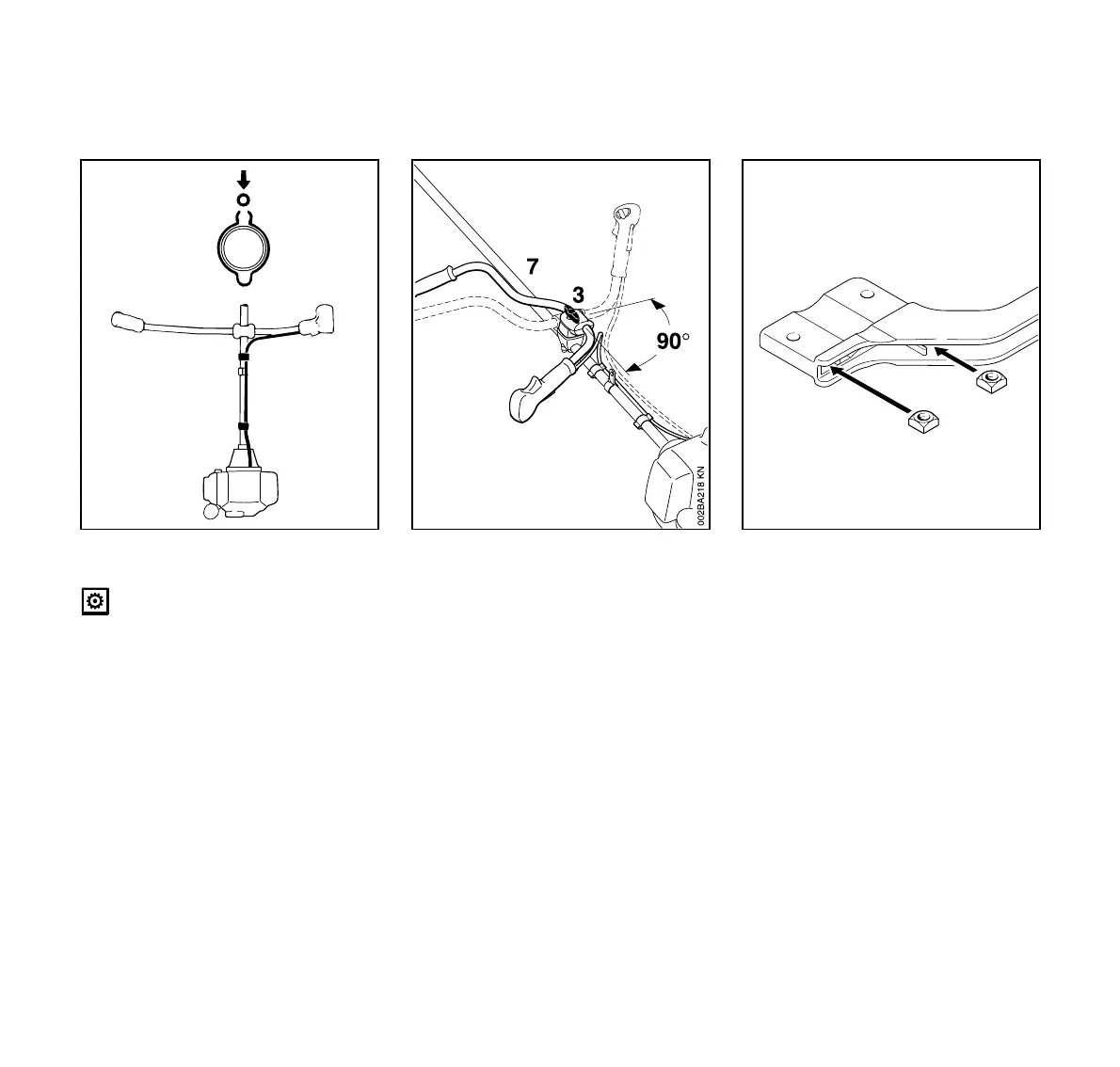

Swiveling the Handlebar
Transport position:
: Release the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
: Turn the handlebar 90° and then
swing the handles down.
: Tighten down the wing screw firmly.
Working position:
: Reverse the sequence described
above to swing the handles up
and turn the handlebar counter-
clockwise.
Loop Handle with Barrier Bar
: Insert square nuts (1) in the barrier
bar (2).
: Line up the holes.
15
14
15
14
15
250BA002 KN
Mounting the Loop Handle
2
002BA098 KN
1
1

Stihl FS 90 Specifications

General

Engine Displacement	28.4 cc
Fuel Type	Gasoline
Handle Type	Loop handle
Shaft Type	Straight
Fuel Capacity	0.53 l
Weight	5.8 kg
Cutting Attachment	Autocut 25-2
Engine Power	0.95 kW (1.27 bhp)
