FS 90, FS 90 R

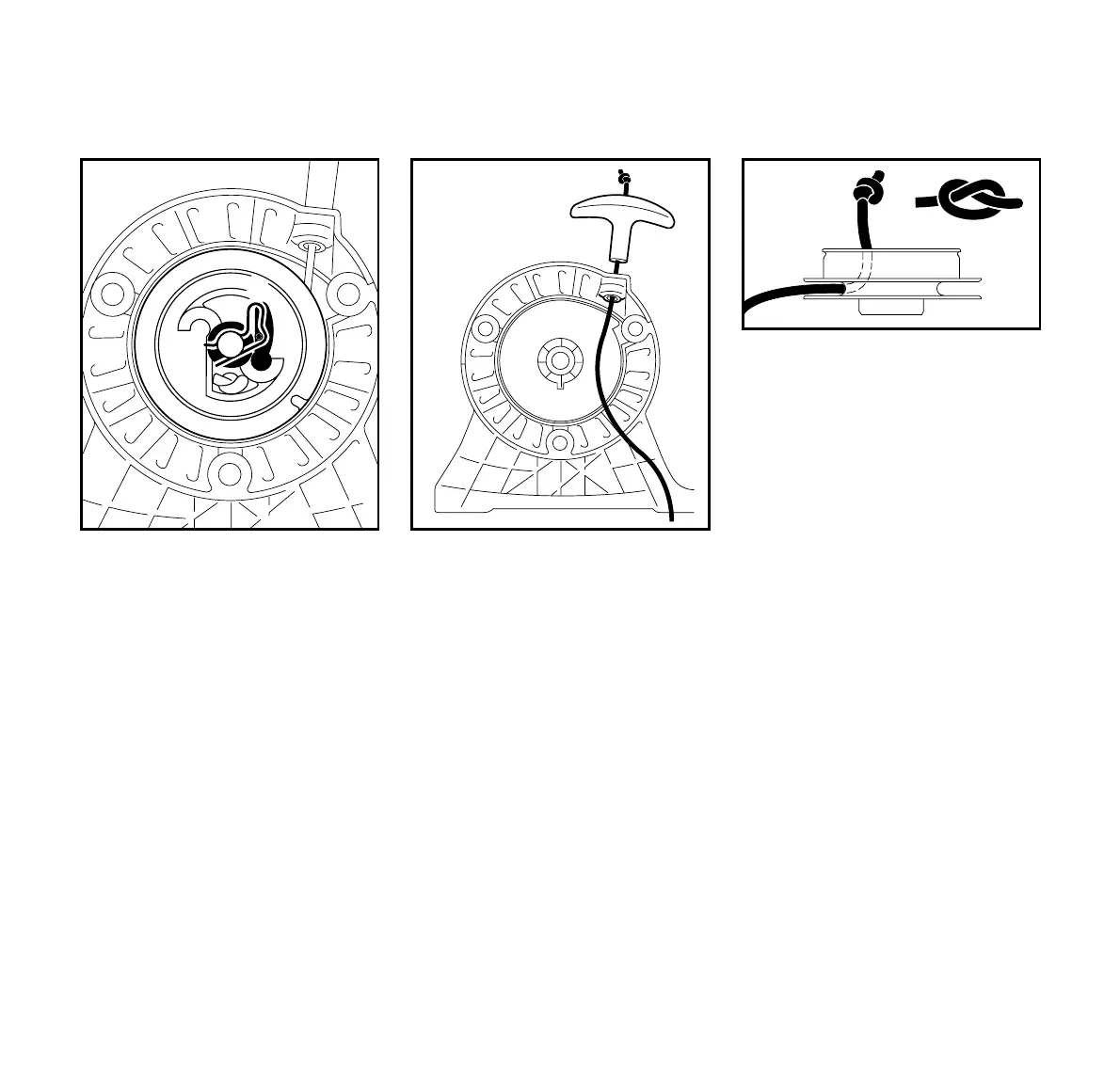

: Remove the spring clip (3).
: Remove the rope rotor with
washer (4) and pawl (5).
: Remove remaining rope from the
rotor and grip.
: Tie a simple overhand knot in the
new rope (see "Specifications") and
then thread it through the top of the
grip and the rope bushing (6).
: Thread the rope through the rotor
and secure it with a simple
overhand knot.
: Coat rope rotor bearing bore with
non-resinous oil.
: Slip rotor over starter post – turn it
back and forth to engage anchor
loop of rewind spring.
4
3
5
249BA013 KN
249BA014 KN
6
249BA015 KN
