Stihl FSA 85 - Assembling the Mowing Head; Winding Line onto Spool

FSA 65, FSA 85
English
42

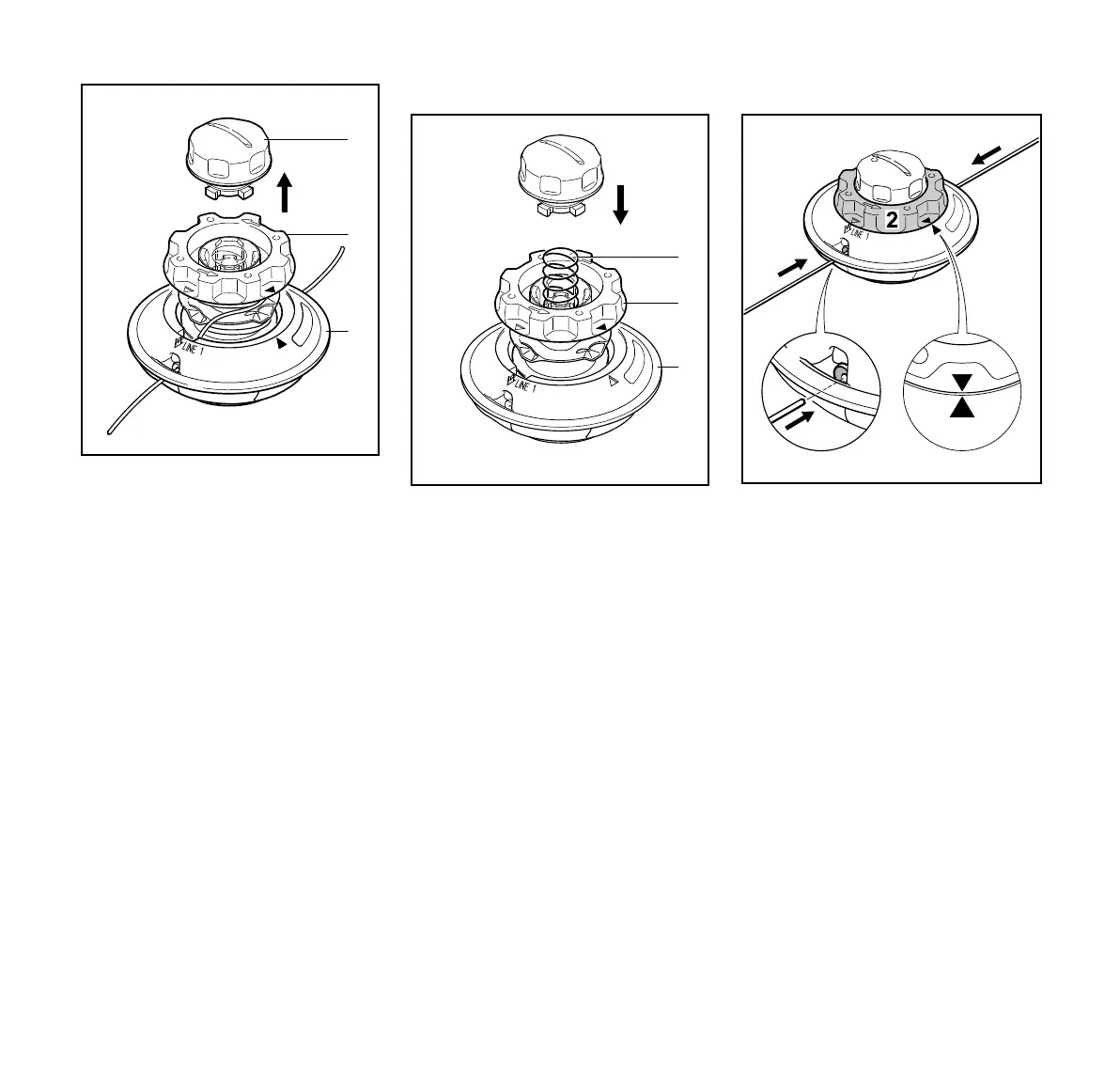

N Hold the mowing head steady and
rotate the cap (1) counterclockwise
until it can be removed.
N Remove the mowing head.
N Pull the spool (2) out of the mowing
head (3) and remove the remaining
line.
Assembling the mowing head
N Fit the empty spool in the mowing
head (3).
If the spring (4) has popped out:
N Push the spring into the spool (2) as
far as stop.
Winding line onto spool
N Use green-coded nylon line with a
diameter of 2.0 mm.
N Cut two 2.5 m lengths of line from
the replacement reel (special
accessory).
N Rotate the spool (2)
counterclockwise until the two arrow
points are in alignment.
N Push the straight end of each line
through one sleeve (5) in the
mowing head (3) until you feel a
noticeable resistance – and then
continue pushing as far as stop.
3905BA017 KN
2
3
1
3905BA018 KN
2
3
4
3
5
3905BA019 KN
3
