Stihl HL 94 - Approved Power Tool Attachments; Assembling the Unit

HL 94
English
14
The following STIHL attachments may
be mounted to the basic power tool:

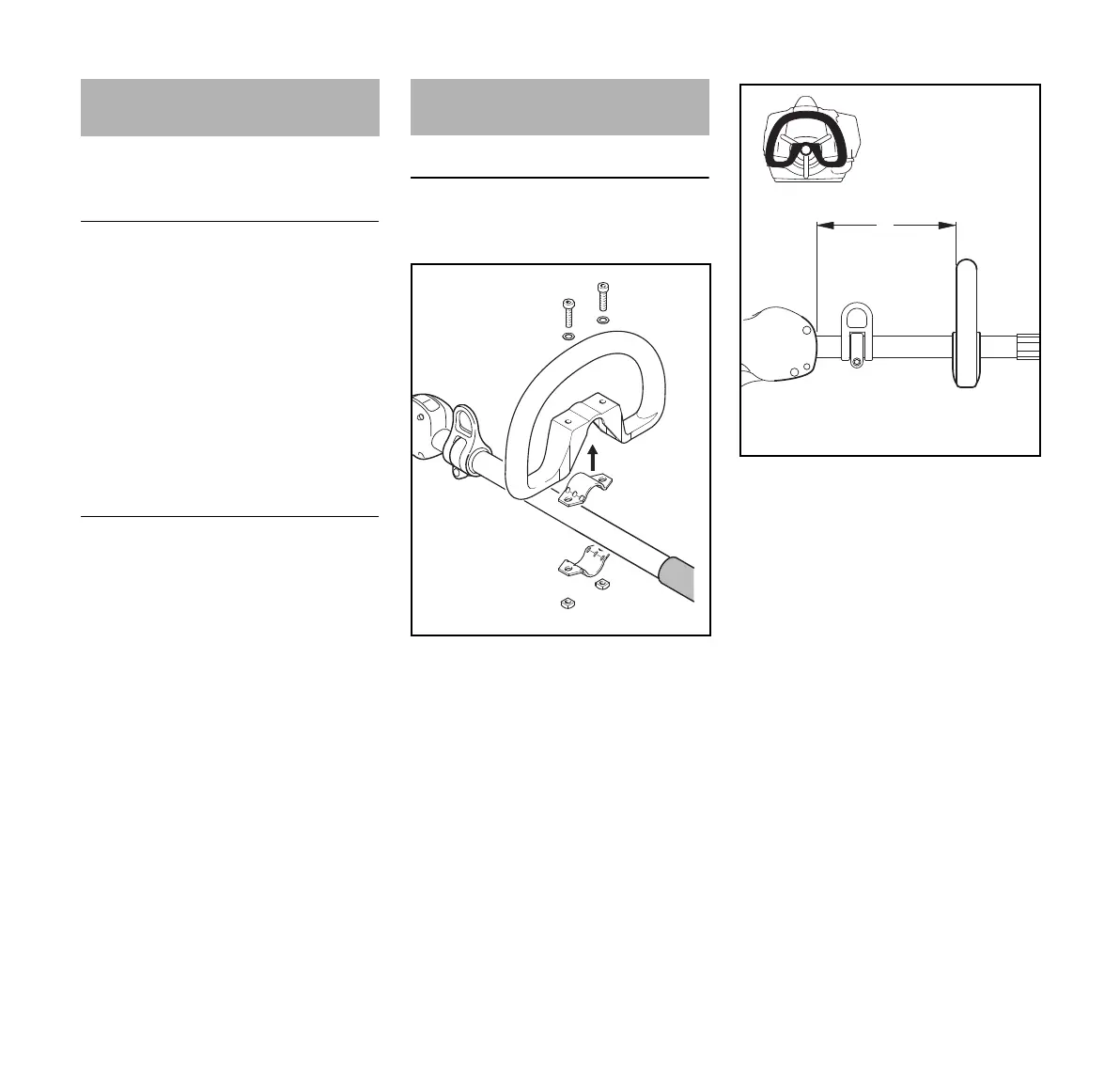

Mounting the Loop Handle (HL 94)
Loop handle is required on versions with
long drive tube (HL 94).
N Place the clamp (1) in the loop
handle (2) and position them both
against the drive tube (5) between
the carrying ring (3) and handle
hose (4).
N Position the clamp (6) against the
shaft.
N Line up the holes.
N Insert the screws (7) with
washers (8).
N Fit the square nuts (9) and screws.
N Align the loop handle (2) and move
it to the most comfortable position
(recommended: about 20 cm/8 in).
N Tighten down the screws firmly.
Approved Power Tool
Attachments
Attachment
1)
Loop handle required on versions
with long drive tube (HL 94)
2)
Not approved for versions with
short drive tube
3)
Loop handle required
Application
HL 0°, 500 mm
1)
Long reach hedge
trimmer
HL 0°, 600 mm
1)
Long reach hedge
trimmer
HL 145°,
500 mm
1)
Long reach hedge
trimmer
HL 145°,
600 mm
1)
Long reach hedge
trimmer
HT
2)
Pole pruners
BF
2) 3)
Cultivator with pick
tines
KB (4601)
2) 3)
Bristle brush
KW (4601)
2) 3)
PowerSweep
Assembling the Unit
7
8
2
1
6
7
8
9
9
3
5
4
0000-GXX-1679-A0
2
A
0000-GXX-1680-A0
