Stihl HL 94 - Lubricating the Gearbox

HL 94
English
25

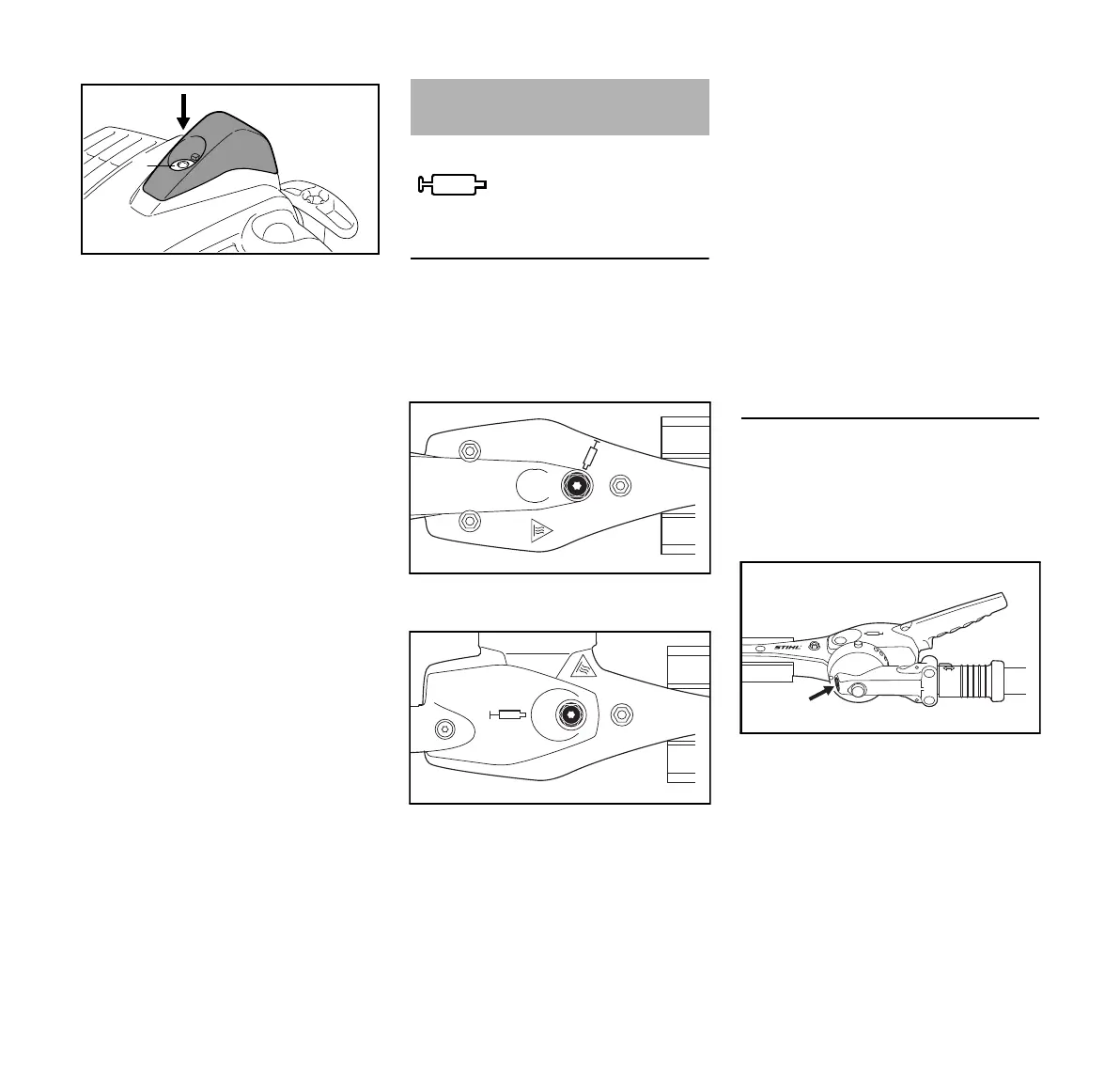

N Fit the cap (1), insert the screw (2)
and tighten it down firmly.
Blade Drive Gear
Lubricate the blade drive gear with
STIHL gear lubricant for hedge trimmers
– see "Special Accessories".
HL 0° version
Adjustable HL 145° version
N Check the lubricant level at regular
intervals of about every 25 hours of
operation. Unscrew the filler
plug (1) – if no grease can be seen
on the inside of the filler plug, screw
the tube of grease into the filler hole.
N Squeeze up to 10 g (2/5 oz) grease
into the gearbox.
NOTICE
Do not completely fill the gearbox with
grease.
N Unscrew the tube of grease from the
filler hole.
N Refit the filler plug and tighten it
down firmly.
Angle Drive Gear
Lubricate the angle drive gear with
STIHL gear lubricant for brushcutters
(special accessory).
Adjustable HL 145° version
N Check the lubricant level at regular
intervals of about every 25 hours of
operation. Unscrew the filler
plug (2) – if no grease can be seen
on the inside of the filler plug, screw
the tube of grease into the filler hole.
N Squeeze up to 5 g (1/5 oz) grease
into the gearbox.
