Stihl HL-KM Series - Fitting the Harness; Shoulder Strap

HL-KM
English
11
moving the cutter bar to the transport
position or from the transport position to
the normal working position.
WARNING
The gearbox gets hot during operation.
To reduce the risk of burn injury, do not
touch the gearbox.
N Shut off the engine.
N Fit the blade scabbard.

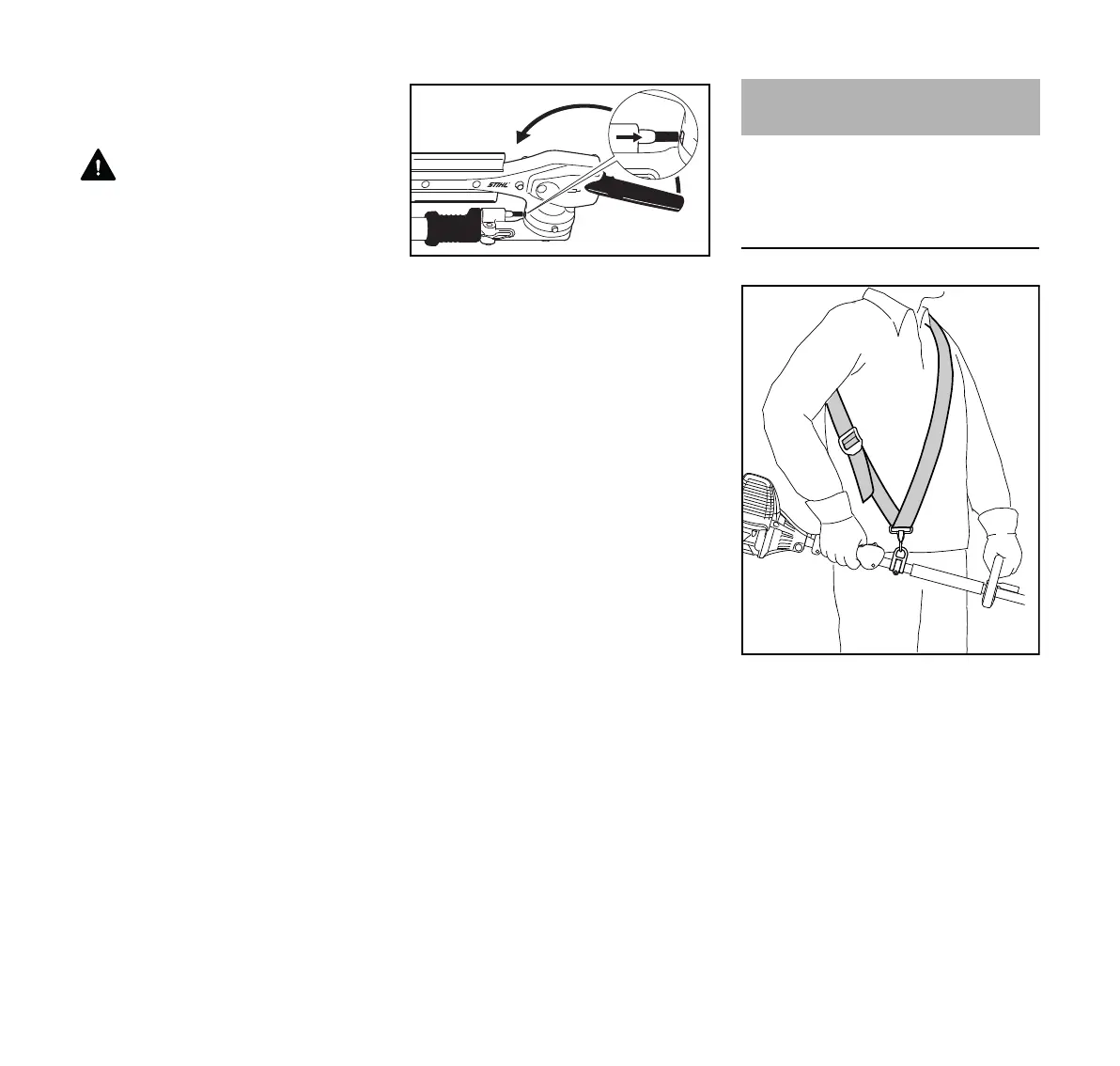

N Pull back the sliding sleeve (1) and
use the lever (2) to swing the joint
upwards – in direction of drive tube
– until the cutter bar is flat against
the drive tube.
N Release the sliding sleeve (1) and
make sure the lock pin engages the
quadrant (3).
The type and style of the harness and
carabiner (spring hook) depend on the
market.
Shoulder Strap
N Put on the shoulder strap (1).
N Adjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
0000-GXX-1686-A0
1
2
3
Fitting the Harness
1
002BA374 KN
2
