Stihl HS 82 R - Main Parts; Specifications

STIHL recommends that you have servicing and
repair work carried out exclusively by an author‐
ized STIHL servicing dealer. STIHL dealers are
regularly given the opportunity to attend training
courses and are supplied with the necessary
technical information.
If these maintenance operations are not carried
out as specified, the user assumes responsibility
for any damage that may occur. Among other
parts, this includes:
–
Damage to the engine due to neglect or defi‐
cient maintenance (e.g. air and fuel filters),
incorrect carburetor adjustment or inadequate
cleaning of cooling air inlets (intake ports, cyl‐
inder fins).
–
Corrosion and other consequential damage
resulting from improper storage.
–
Damage to the machine resulting from the use
of poor quality replacement parts.
16.2 Parts Subject to Wear and Tear
Some parts of the power tool are subject to nor‐
mal wear and tear even during regular operation
in accordance with instructions and, depending
on the type and duration of use, have to be
replaced in good time. Among other parts, this
includes:
–
Cutting blades
–
Clutch
–
Filters (air, fuel)
–
Rewind starter
–
Spark plug
–
Components of antivibration system
17 Main Parts
10
1
12
14
7
3
11
2
4
8
9
13
6
5
15
16
17
#
18
19
0000-GXX-1821-A0
1 Starter Grip
2 Rear Handle
3 Throttle Trigger Lockout
4 Throttle Trigger
5 Handle Lock
6 Filter Cover
7 Manual Fuel Pump
8 Spark Plug Boot
9 Front Handle
10 Carburetor Adjusting Screws
11 Stop Switch
12 Fuel Tank Cap
13 Fuel tank
14 Muffler
15 Fan Housing
16 Choke Lever
17 Blade Scabbard
18 Cutter Guard
19 Cutting Blades
# Serial Number
18 Specifications
18.1 Engine
STIHL single cylinder two-stroke engine
Displacement:
22.7 cc
Bore: 34 mm
Stroke: 25 mm
Engine power to ISO 7293: 0.7 kW (1 bhp) at
8,500 rpm
Idle speed: 2,800 rpm
Cut-off speed: 9,300 rpm
18.2 Ignition System
Electronic magneto ignition

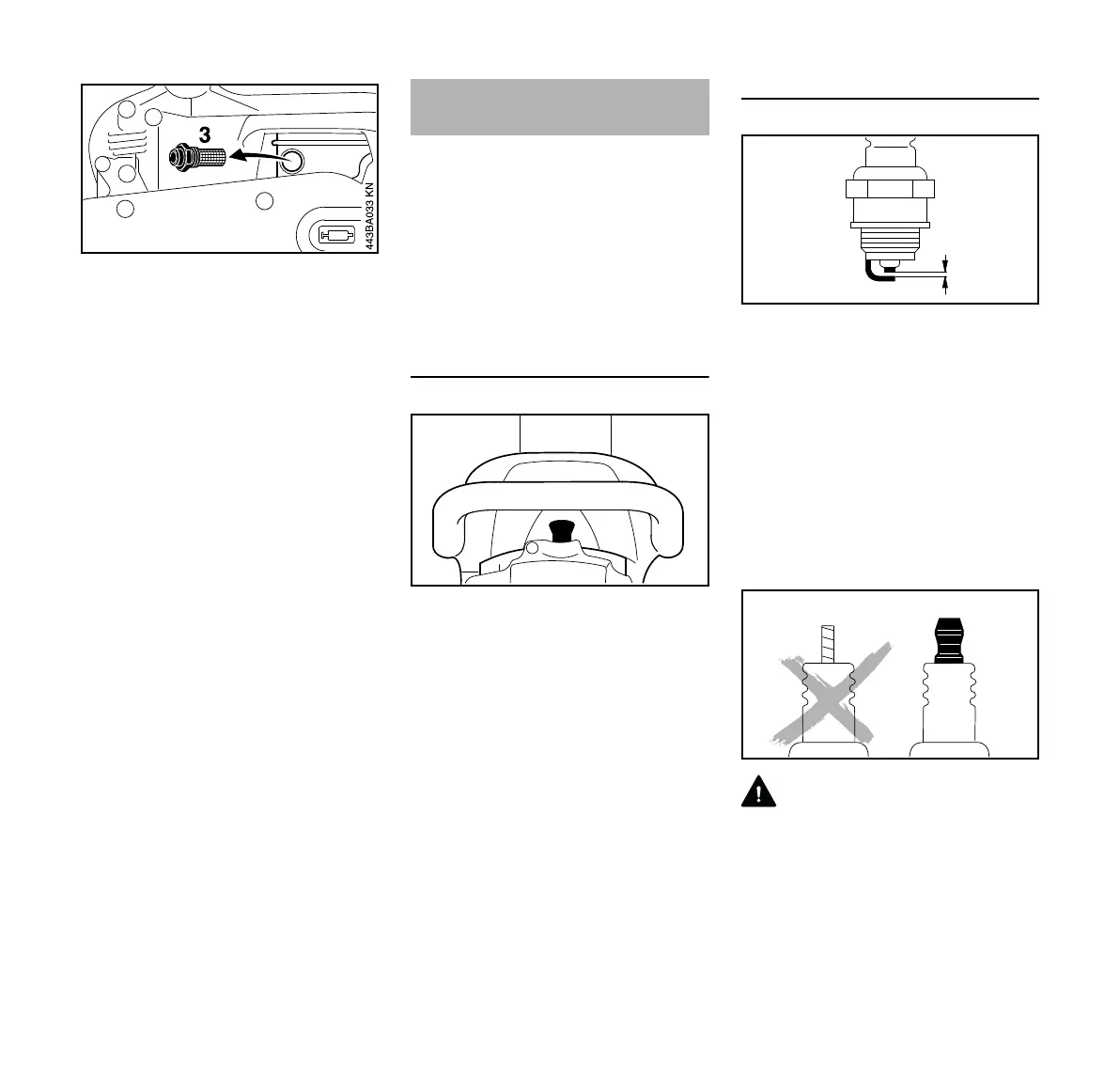

Spark plug (resistor type): NGK CMR6H,
BOSCH USR 4 AC
Electrode gap: 0.5 mm
18.3 Fuel System
All position diaphragm carburetor with integral
fuel pump
Fuel tank capacity:
460 cc (0.46 l)
18.4 Weight
complete with cutting attachment, dry, without
blade scabbard
18.4.1 HS 82 T
500 mm blade: 4.9 kg
600 mm blade: 5.1 kg
750 mm blade: 5.3 kg
18.4.2 HS 82 R
600 mm blade: 5.3 kg
750 mm blade: 5.6 kg
