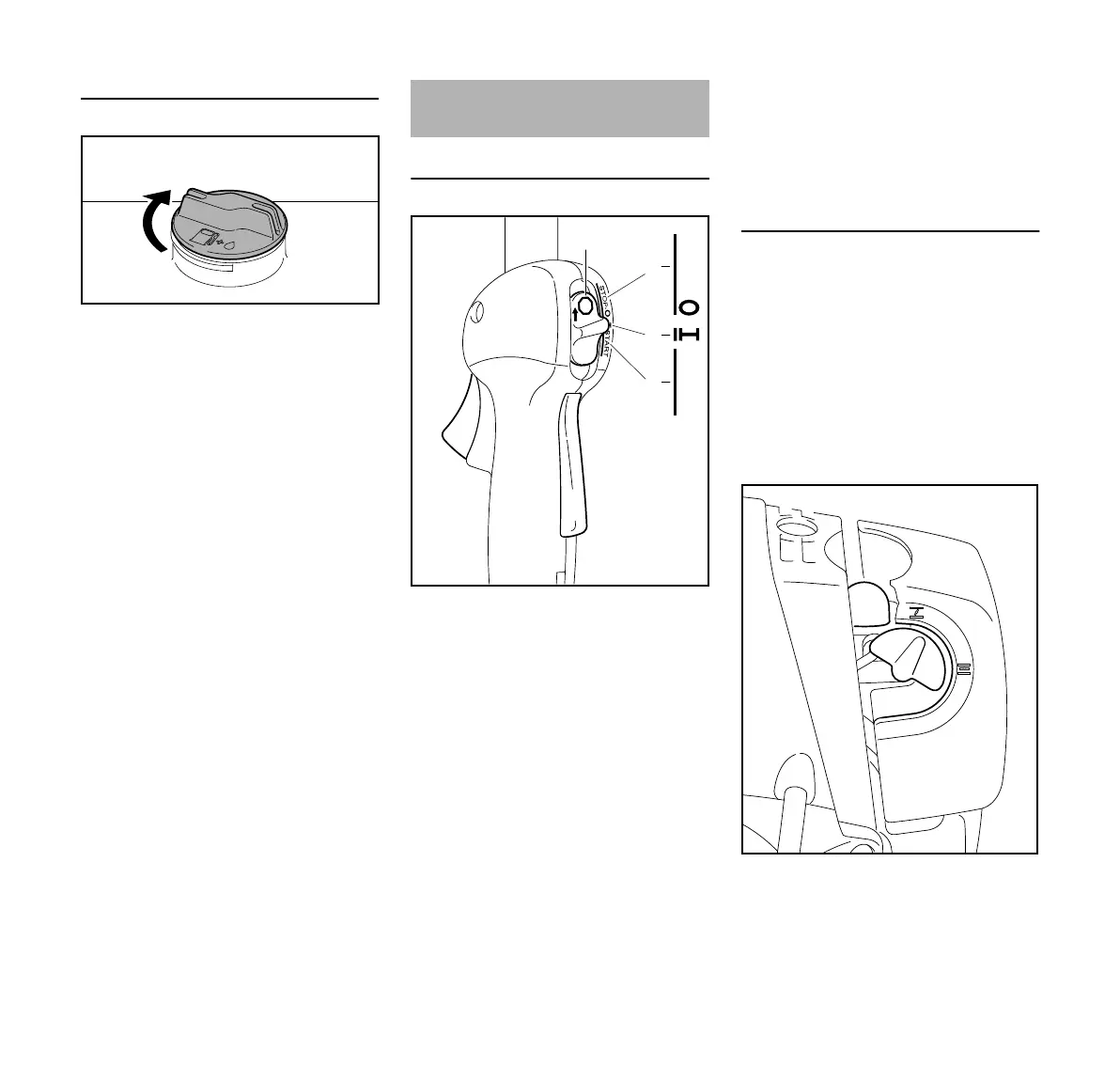

Closing the threaded filler cap
N Position cap.
N Turn the cap clockwise as far as it
will go and tighten it as securely as
possible by hand.
Controls
1 Throttle trigger lockout
2 Throttle trigger
3 Slide control
Positions of slide control
4STOP-0 – engine off – the ignition is
switched off
5 F – normal run position – the engine
is running or can start
6START – the ignition is switched on
– the engine can start
Symbol on slide control
7 h – stop symbol and arrow. To stop
the engine, push the slide control in
the direction of the arrow on the stop
symbol (h) to STOP-0.
Starting
N Press down the trigger lockout lever
and squeeze the throttle trigger.
N and hold them in that position.
N Move the slide control to START
and hold it there.
N Now release the throttle trigger,
slide control and trigger lockout in
that order. This is the starting
throttle position.
N Set the choke knob (8)
002BA448 KN
Starting / Stopping the
Engine
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
249BA057 KN
9
8
