Stihl KM 110 R User Manual

KM 110 R, KM 130 R
English
23

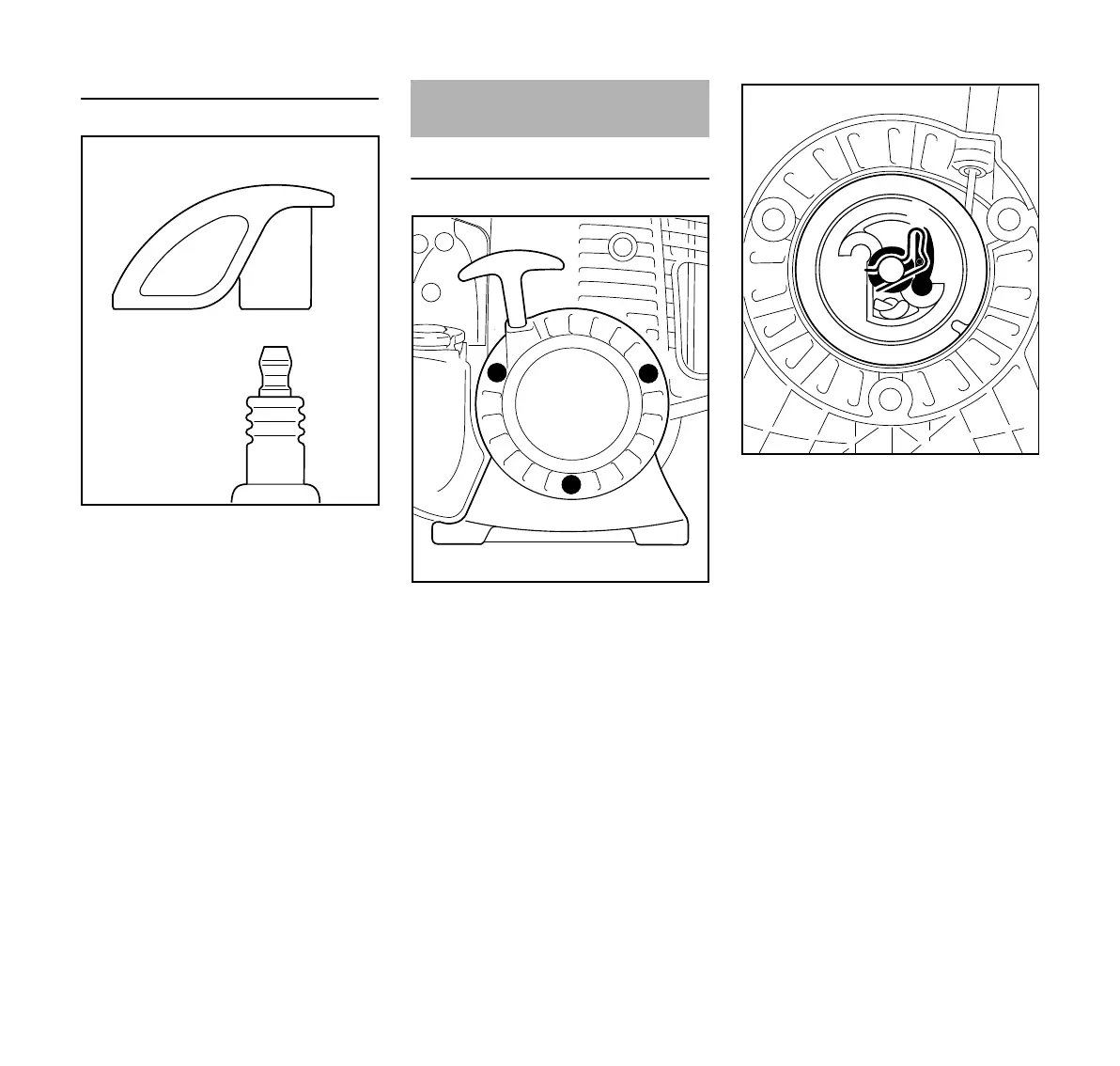

Installing the spark plug
N Screw the spark plug (3) into the
cylinder and fit the boot (2) (press it
down firmly).
Replacing the Starter Rope
N Push the slide control in direction of
arrow h – to STOP-0.
N Take out the screws (1).
N Remove the starter cover (2) from
the housing.
N Ease the spring clip (3) off the
starter post.
N Remove the rope rotor with
washer (4) and pawl (5).
N Remove the remaining rope from
the rotor and starter grip.
3
002BA178 KN
2
Replacing the Starter Rope
and Rewind Spring
1
1
249BA061 KN
2
1
4
3
5
249BA013 KN
