N Tie a simple overhand knot in the
new rope and then thread it through
the top of the grip and the rope
bushing (6).
N Thread the rope through the rotor
and secure it with a simple
overhand knot.
N Coat the rope rotor bearing bore
with non-resinous oil.
N Slip the rotor over the starter post –
turn it back and forth to engage the
anchor loop of the rewind spring.
N Refit the pawl (5) in the rotor.
N Fit the washer (4) on the starter
post.
N Use a screwdriver or suitable pliers
to fit the spring clip (3) on the starter
post and over the pawl's peg – the
spring clip must point
counterclockwise – as shown in the
illustration.
N Go to "Tensioning the Rewind
Spring".
Replacing a broken rewind spring
N Remove the rope rotor as described
in chapter on "Replacing the starter
rope".
The bits of spring may still be under
tension and could fly apart when you
take them out of the housing. To reduce
the risk of injury, wear face protection
and work gloves.
N Remove the spring housing and
pieces of spring.
N Lubricate the new spring with a few
drops of non-resinous oil.

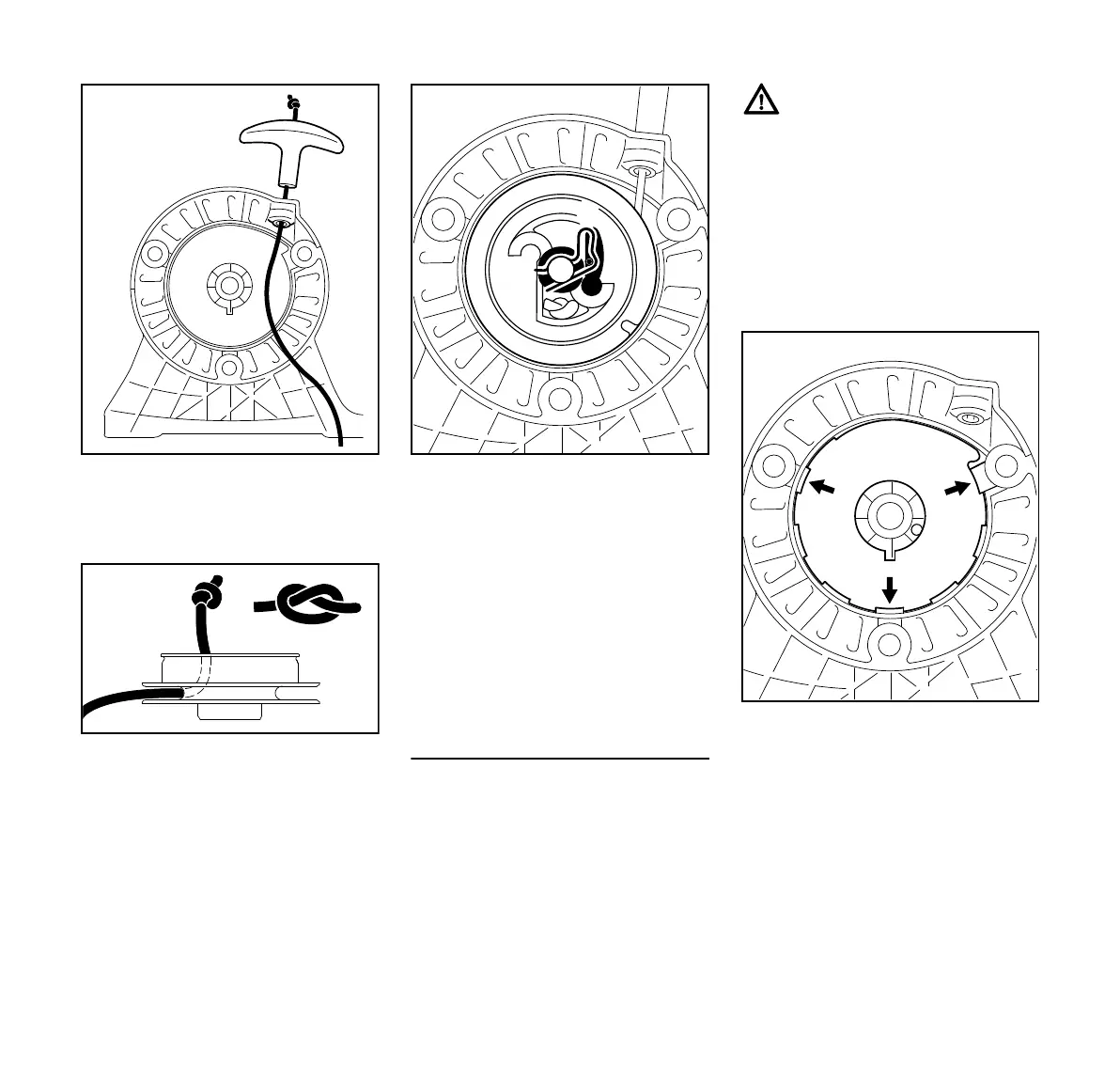

N Position the new spring housing,
bottom plate facing up, against the
cutouts (arrows).
N Push the spring housing into the
starter cover.
N Reinstall the rope rotor – then go to
"Tensioning the Rewind Spring".
N If the spring pops out of the spring
housing and uncoils: Refit it
counterclockwise, starting outside
and working inwards.
