12
English
KM 85, KM 85 R
: Place the clamp (5) on the handle
support.
: Insert screws (6) in the holes and
clamp (3) and tighten them
moderately.
: Line up the bike handle.
: Tighten down the screws firmly.

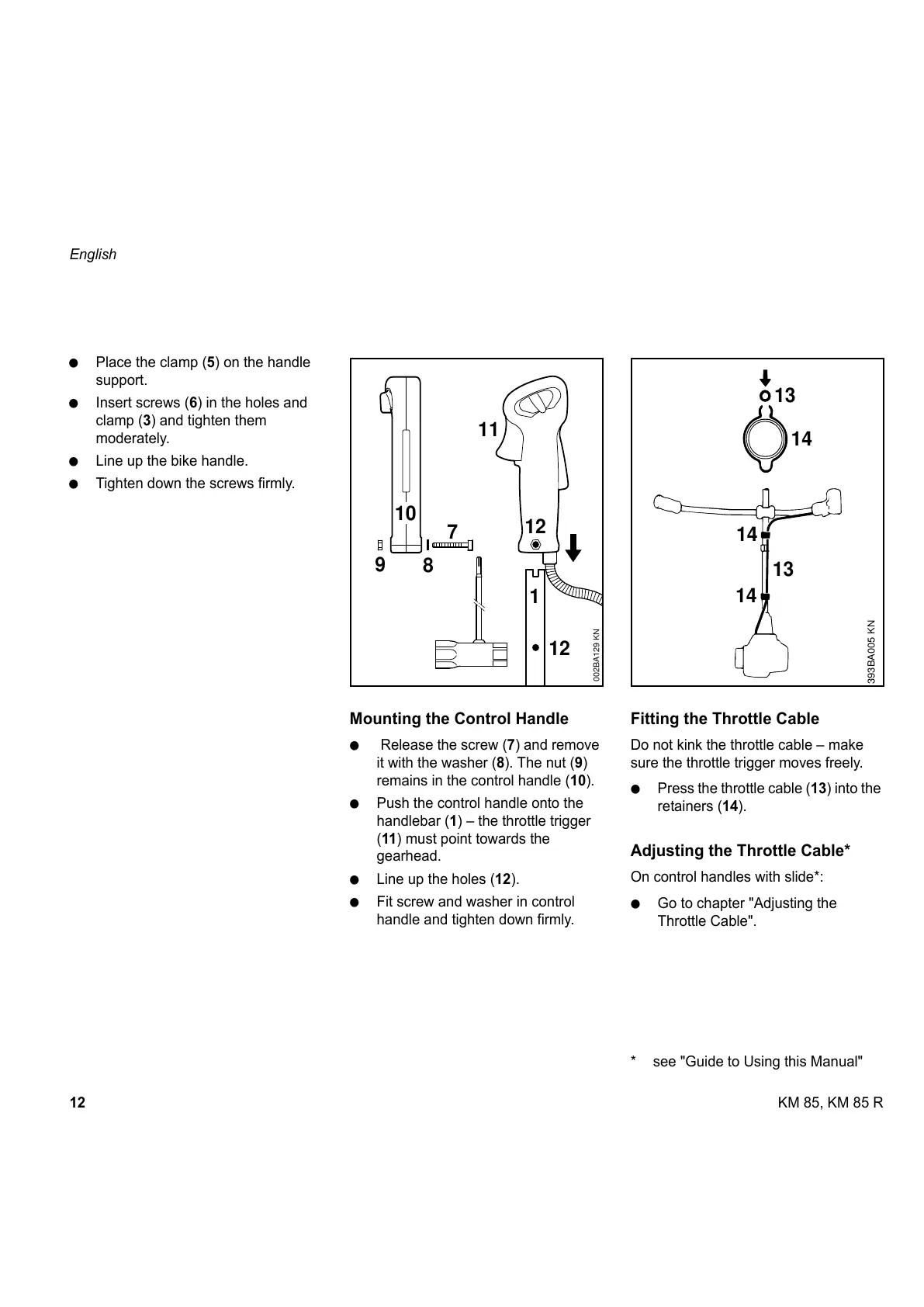

Mounting the Control Handle
: Release the screw (7) and remove
it with the washer (8). The nut (9)
remains in the control handle (10).
: Push the control handle onto the
handlebar (1) – the throttle trigger
(11) must point towards the
gearhead.
: Line up the holes (12).
: Fit screw and washer in control
handle and tighten down firmly.
Fitting the Throttle Cable
Do not kink the throttle cable – make
sure the throttle trigger moves freely.
: Press the throttle cable (13) into the
retainers (14).
Adjusting the Throttle Cable*
On control handles with slide*:
: Go to chapter "Adjusting the
Throttle Cable".
* see "Guide to Using this Manual"
8
7
10
11
1
12
002BA129 KN
12
9
13
14
13
14
14
393BA005 KN
