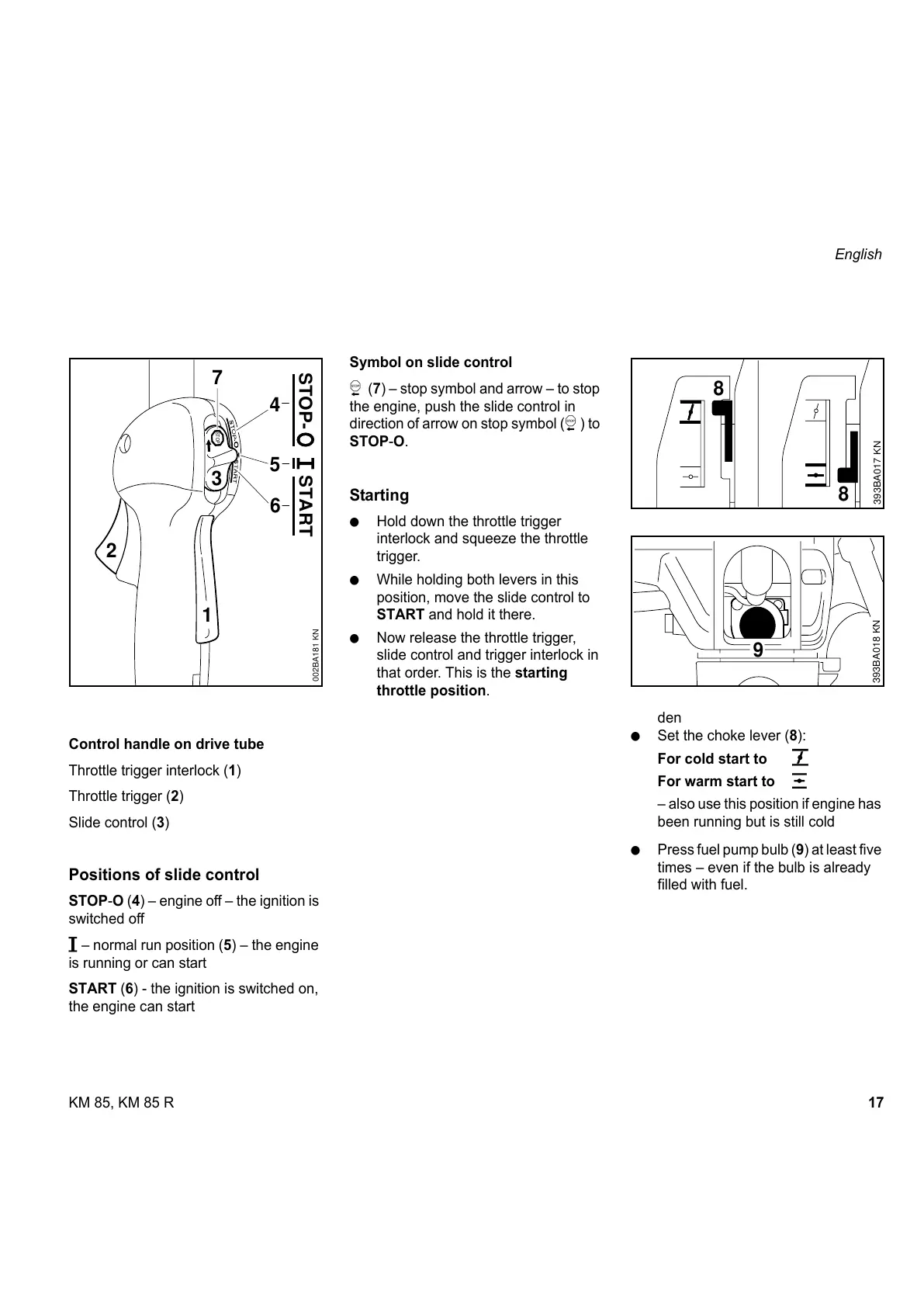

Control handle on drive tube
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Positions of slide control
STOP-O (4) – engine off – the ignition is
switched off
# – normal run position (5) – the engine
is running or can start
START (6) - the ignition is switched on,
the engine can start
Symbol on slide control
h (7) – stop symbol and arrow – to stop
the engine, push the slide control in
direction of arrow on stop symbol (h ) to
STOP-O.
Starting
: Hold down the throttle trigger
interlock and squeeze the throttle
trigger.
: While holding both levers in this
position, move the slide control to
START and hold it there.
: Now release the throttle trigger,
slide control and trigger interlock in
that order. This is the starting
throttle position.
den
: Set the choke lever (8):
For cold start to
g
For warm start to e
– also use this position if engine has
been running but is still cold
: Press fuel pump bulb (9) at least five
times – even if the bulb is already
filled with fuel.
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
393BA017 KN
8
8
393BA018 KN
9
