25KM 85, KM 85 R
english / USA
: Use a screwdriver to ease the cap
(6) out of the starter grip.
: Remove remaining rope from the
rotor and grip, making sure the
ElastoStart sleeve is not pushed out
of the grip.
: Tie a simple overhand knot in the
end of the new starter rope – see
"Specifications" – and then thread
the rope through the top of the grip
and the rope bush (7).
: Refit the cap in the grip.
: Pull the rope through the rotor and
secure it with a simple overhand
knot.
: Coat rope rotor bearing bore with
non-resinous oil – see “Special
Accessories“.
: Slide rotor onto starter post –
turn it back and forth until the rewind
spring anchor loop (8) engages.
: Insert screw and tighten down
securely.
: Go to "Tensioning the rewind
spring".
Replacing a broken rewind spring
: Lubricate the new spring with a few
drops of non-resinous oil – see
“Special Accessories“–, do not open
the wire retainer
: Remove the rope rotor.
: Remove parts of old spring.
: Fit the new spring –
position outer spring loop in the
recess – the wire retainer slips off in
this process.

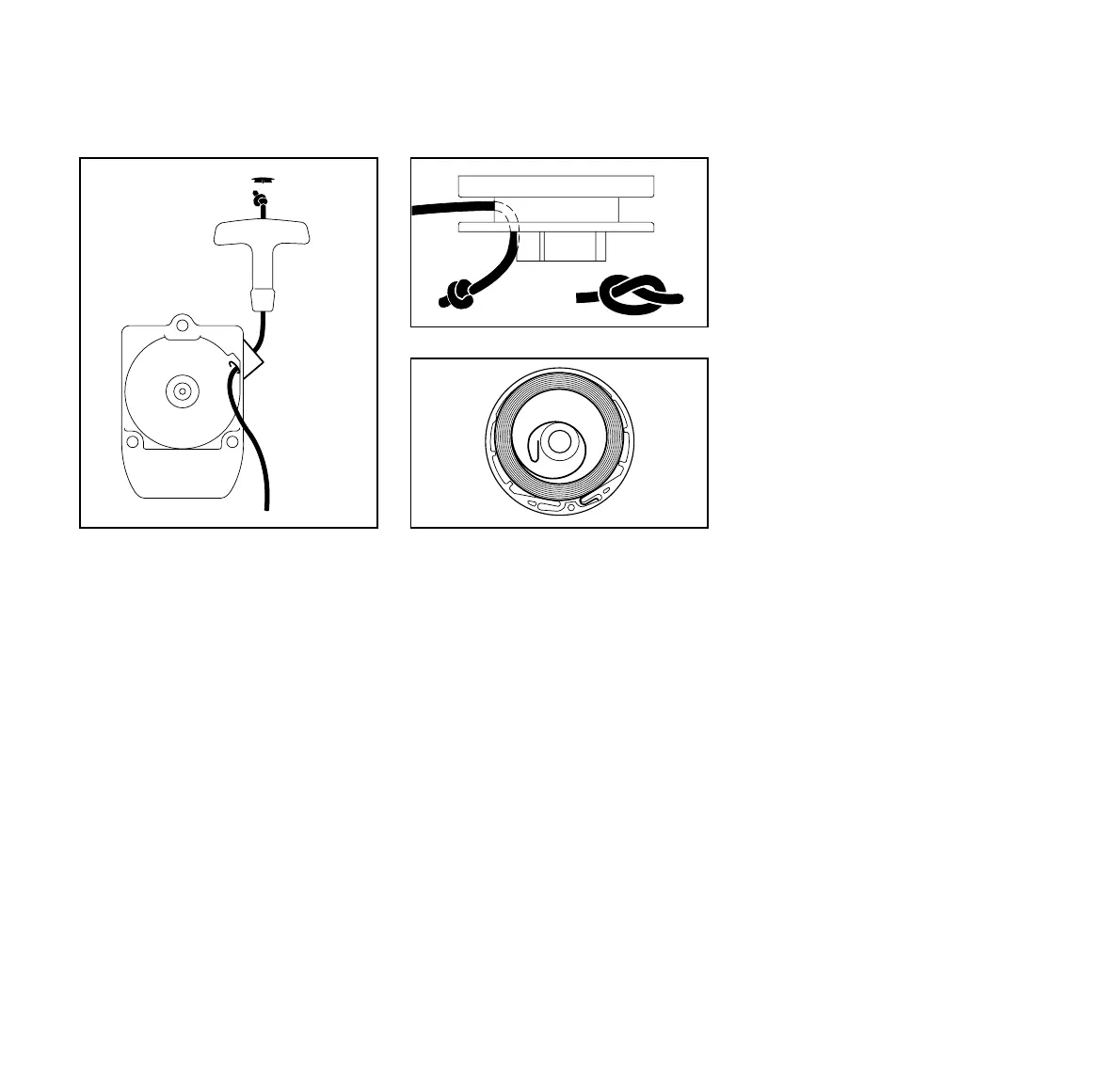

6
7
392BA015 KN
392BA024 KN
8
392BA025 KN
