KM 85, KM 85 R
If the spring has popped out:
Refit it in the counterclockwise
direction –
starting outside and working inward.
: Install the rope rotor.
: Check dimension "a" on inner
spring loop and bend it to size if
necessary.
: Go to "Tensioning the rewind
spring".
Tensioning the rewind spring
: Make a loop in the unwound
starter rope and use it to turn
the rope rotor six full revolutions
counterclockwise.
Hold the rotor steady –
straighten the twisted rope –
release the rotor –
let go of rope slowly so that it winds
onto the rotor.
The starter grip must be firmly seated in
the rope guide bush.
If grip droops to one side:
Add one more turn on rope rotor to
increase spring tension.
: When the starter rope is fully
extended it must be possible to
rotate the rotor another half turn.
If this is not the case, the spring is
overtensioned and could break.
Take one turn of rope off the rotor.
355BA022 KN

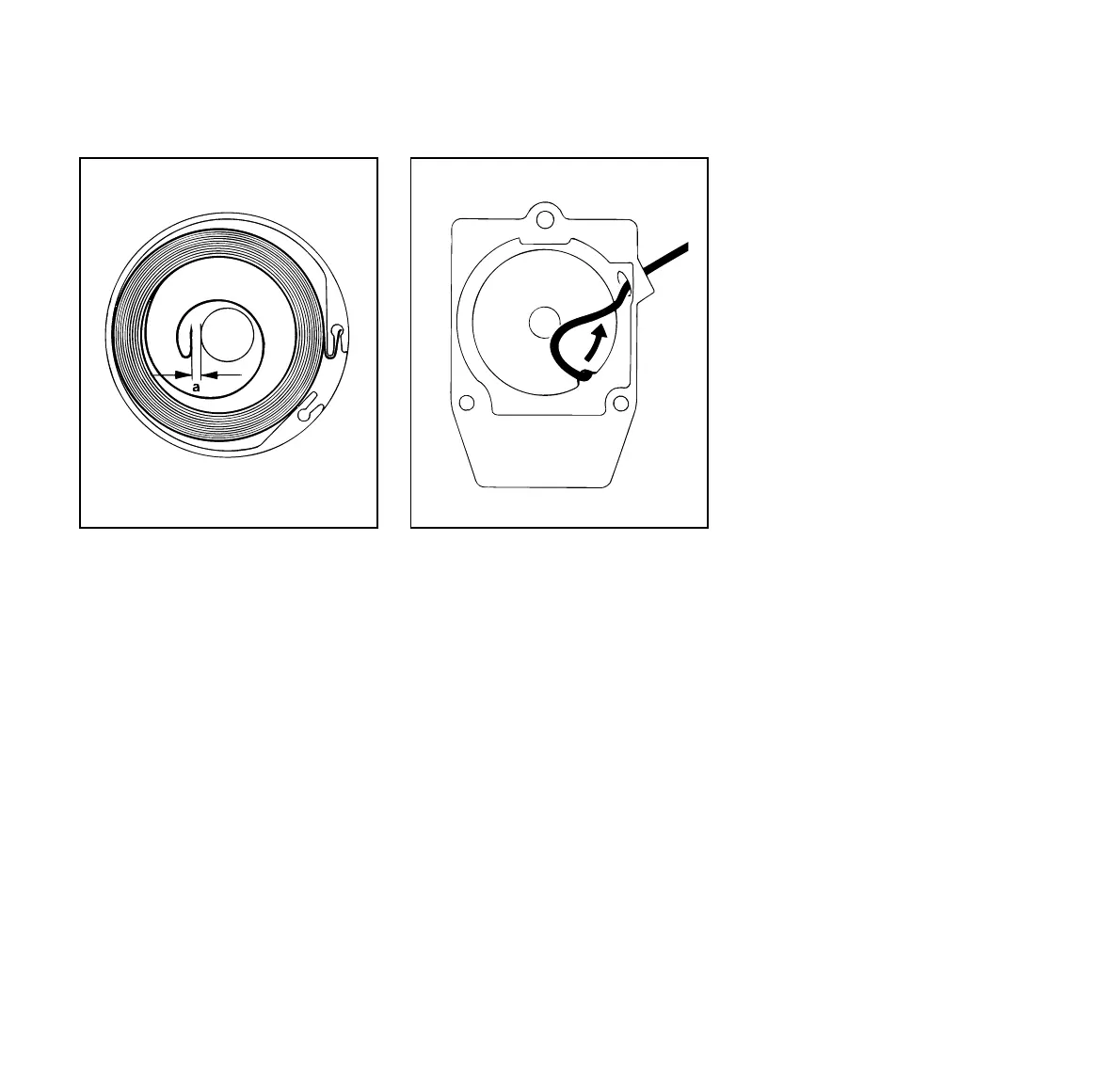

a = 2mm
(0.08in)
355BA021 KN
