Stihl ms 192t User Manual

39MS 192 T
English / USA

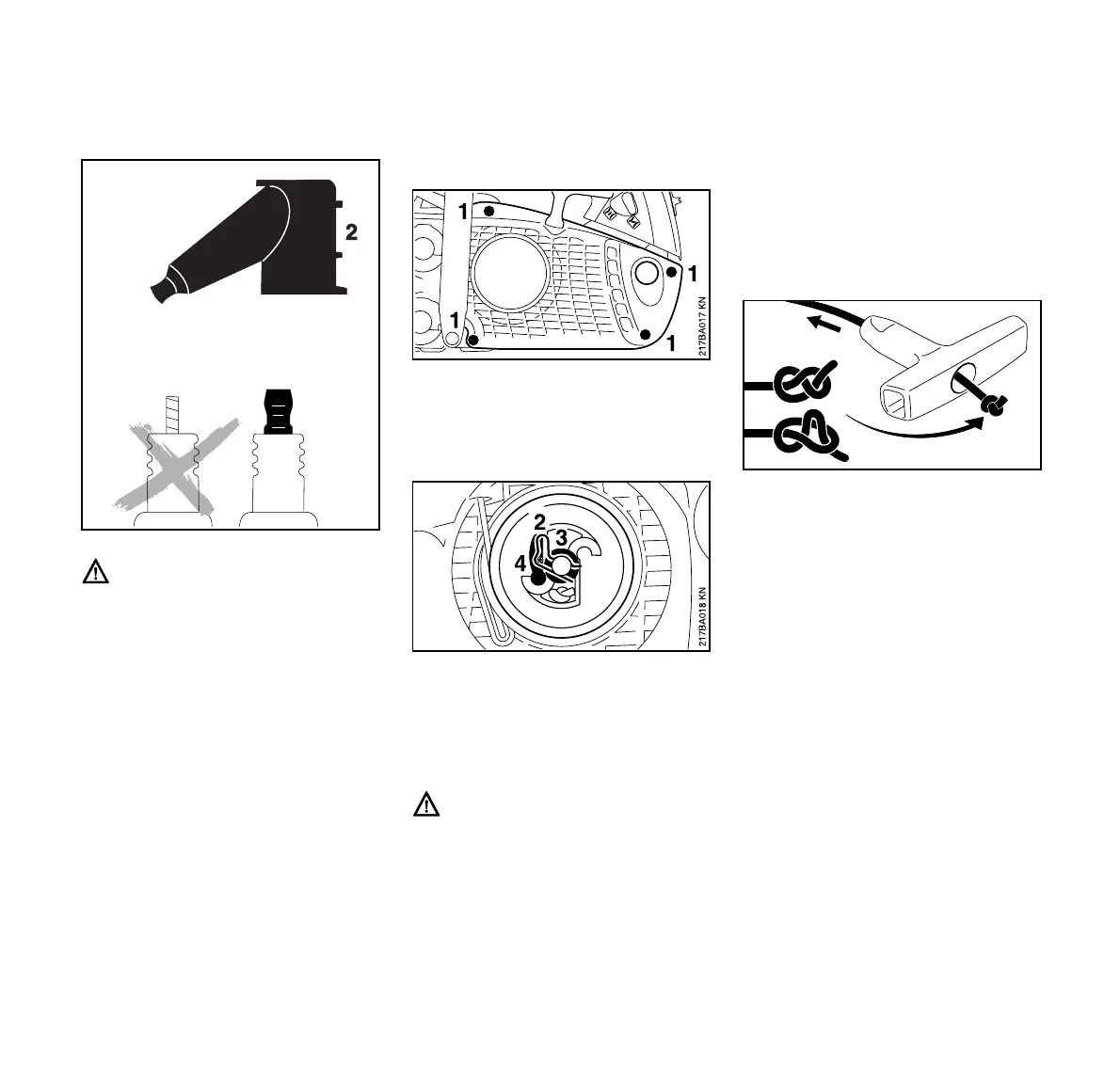

To reduce the risk of fire and burn
injury, use only spark plugs
authorized by STIHL. Always press
spark plug boot (2) snugly onto
spark plug terminal (1) of the proper
size. (Note: If terminal has
detachable SAE adapter nut, it must
be attached.)
A loose connection between spark
plug boot and ignition wire
connector in the boot may create
arcing that could ignite combustible
fumes and cause a fire.
Replacing a broken starter rope
: Remove the screws (1).
: Ease fan housing away from
crankcase and remove it.
: Use screwdriver or suitable pliers to
carefully remove spring clip (2) from
the starter post.
: Carefully remove the rope rotor with
washer (3) and pawl (4).
The rewind spring may pop out and
uncoil during this operation.
Starter grip without ElastoStart
: Use a screwdriver to pry the rope
out of the starter grip.
: Remove the remaining rope from
the rotor and grip.
: Thread the new rope through the
starter grip and tie one of the special
knots shown.
: Pull the knot back into the grip.
000BA036 TR
1
Replacing the Starter Rope
and Rewind Spring
213BA018 KN

Stihl ms 192t Specifications

General

Engine Displacement	30.1 cm³
Engine Power	1.3 kW
Guide Bar Length	30 cm
Chain Oil Capacity	0.22 l
Oilomatic Chain Gauge	1.3 mm
Oilomatic Chain Pitch	3/8"
Chain Pitch	3/8"
