Stihl MS 210 Service Manual

56 MS 210, MS 230, MS 250

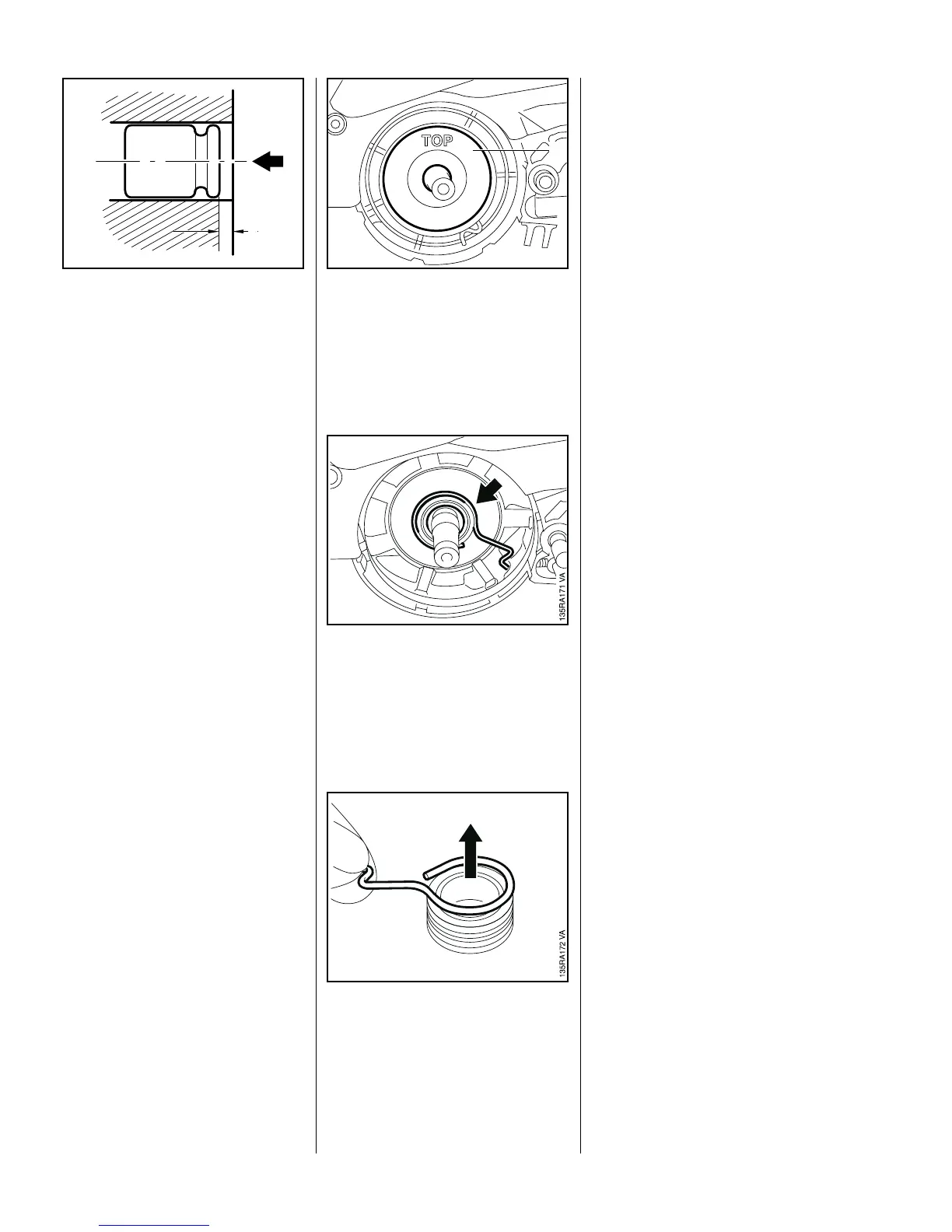

: Use a 7 mm (9/32") dia. drift to
carefully push home the new
valve until dimension 'a' is about
1 mm (3/64").
– Fit the oil filler cap.
VA
176RA243
a
– Remove the clutch – b 8.
: Remove the cover washer (1).
VA
208RA018
1
: Pull the worm and drive spring
(arrow) off the crankshaft stub.
: Take the drive spring off the
worm.
Reassemble in the reverse
sequence.
Fit the cover washer so that the
word "TOP" faces outwards.
10.4 Worm

Stihl MS 210 Specifications

General

Displacement	35.2 cm³
Bar Length	35 cm
Chain Oil Capacity	0.2 L
Chain Pitch	3/8"
Fuel Capacity	270 ml
