Stihl MS 250C User Manual

MS 250
English
54

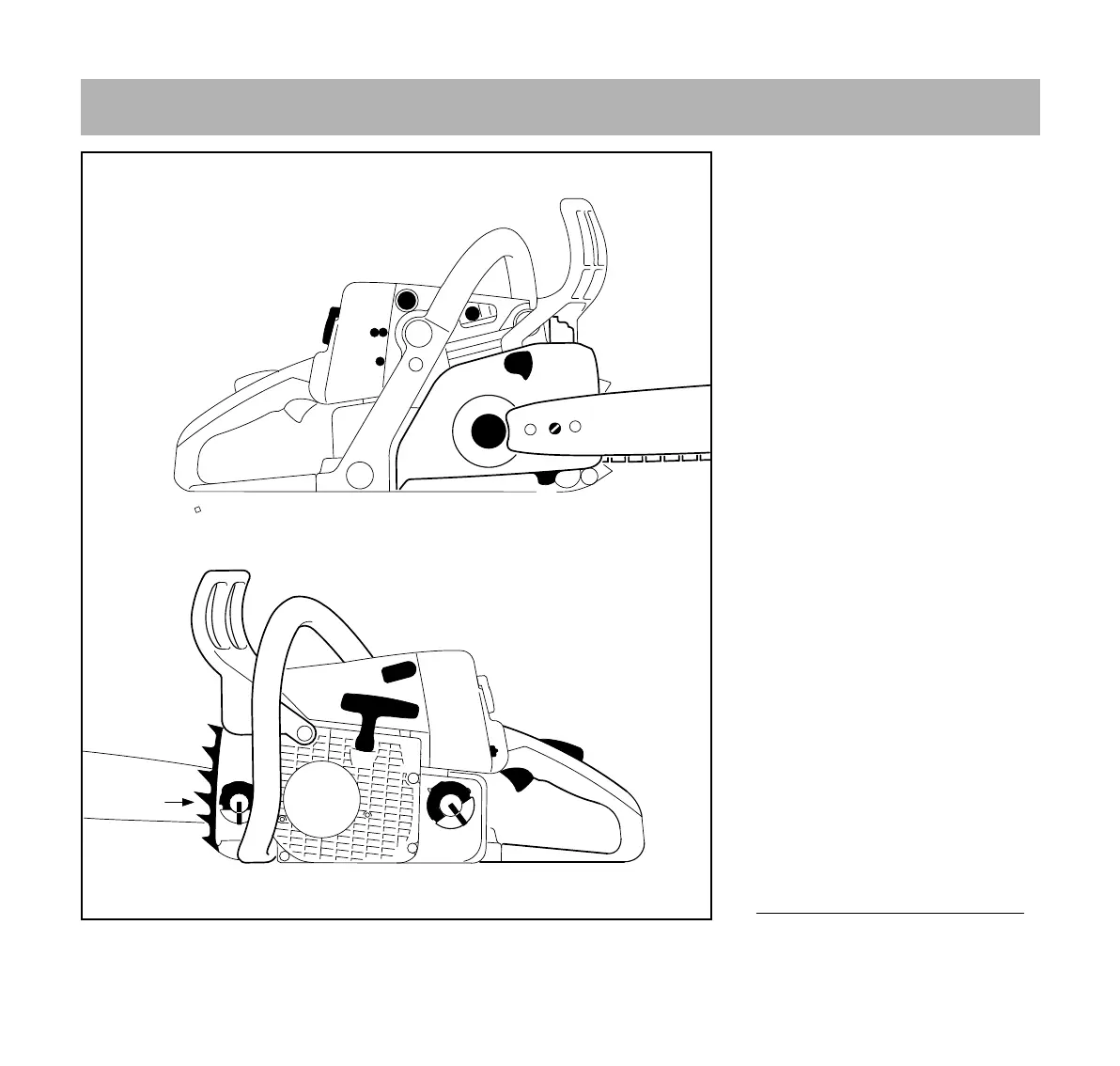

1 Carburetor Box Cover Twist Lock
2 Carburetor Adjusting Screws
3 Manual Fuel Pump
1)
4 Decompression Valve
(Automatically Resetting)
1)
5 Chain Brake
6 Muffler
7 Chain Sprocket
8 Chain Sprocket Cover
9 Chain Catcher
10 Chain Tensioner
11 Guide Bar
12 Oilomatic Saw Chain
13 Oil Filler Cap
14 Bumper Spike
15 Front Hand Guard
16 Front Handle (Handlebar)
17 Starter Grip
18 Spark Plug Boot
19 Master Control Lever
20 Fuel Filler Cap
21 Throttle Trigger
22 Throttle Trigger Lockout
23 Rear Handle
24 Rear Hand Guard
# Serial Number
Main Parts
24
23
22
20
3
1
4
5
6
7
8
9
10
12
11
2
21
14
13
15
16
18
17
19
#
208BA026 KN
1)
Depending on Model

Stihl MS 250C Specifications

General

Engine Power	2.3 kW
Displacement	45.4 cm³
Guide Bar Length	40 cm
Power output	2.3 kW (3.1 hp)
Chain pitch	3/8"
