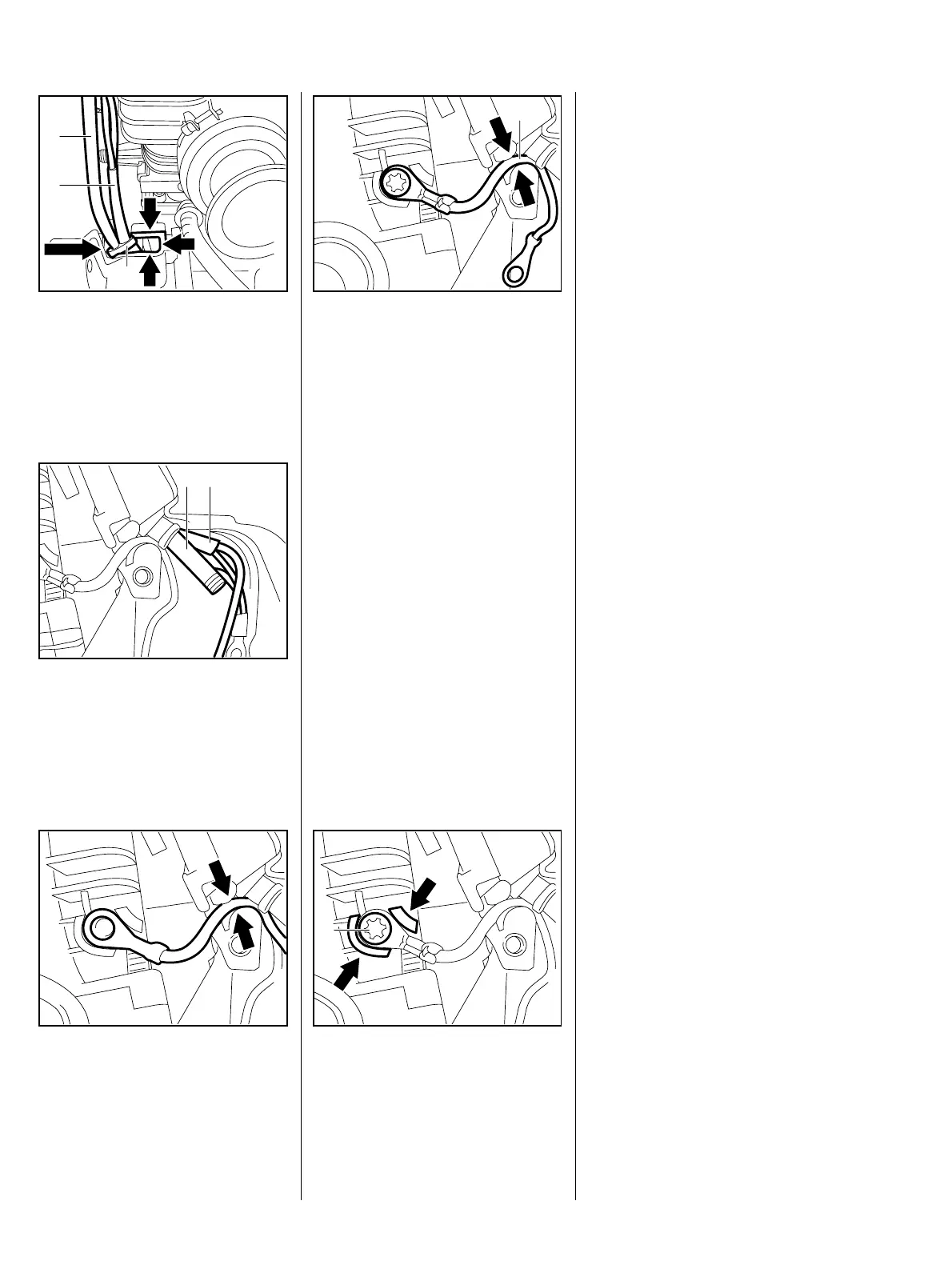

44 MS 290, MS 310, MS 390
When installing, push grommet (1)
sideways into the housing recess
(arrows). The wiring harness (2)
must be on the right of the ignition
lead (3).
209RA133
VA
2
1
3
: Position the wiring harness (1)
under the ignition lead (2).
209RA134
VA
2 1
: Push the ground wire into the
retainer (arrows).
: Position the cable lug against the
cylinder with its crimping facing
the cylinder.
209RA135
VA
: Push additional ground wire (1)
into the retainer (arrows).
: Position the cable lug against the
cylinder with its crimping facing
outwards.
209RA136
VA
1
: Fit the ground wires between the
guide lugs (arrows) and line them
up.
: Fit the screw (1) and tighten it
down firmly, b 3.5
209RA137
VA
1
– Install the ignition module,
b 7.1.2
Install all other parts in the reverse
sequence.
