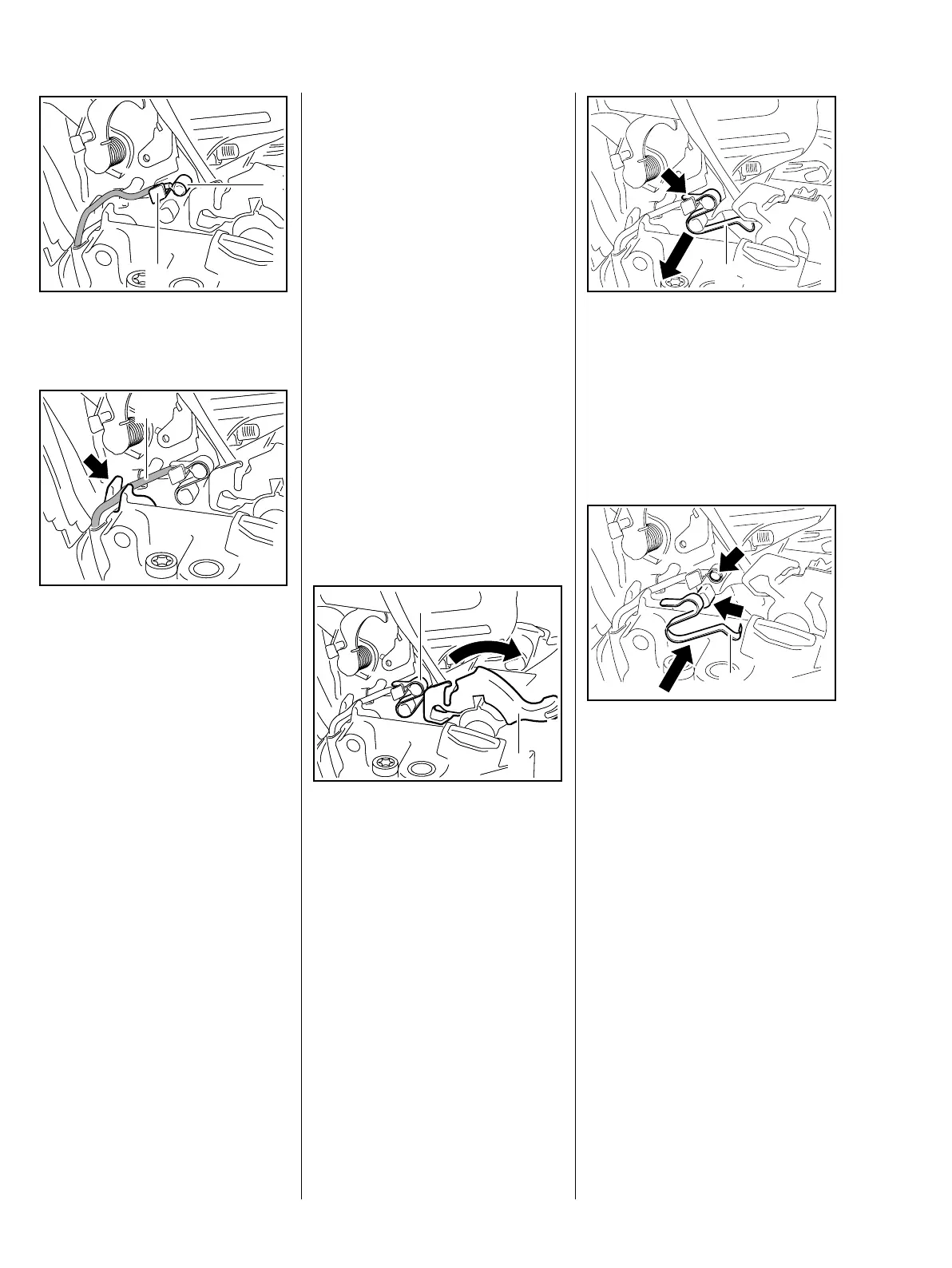

46 MS 311, MS 391
: The ring terminal (1) must locate
behind the lug (2).
Fit the contact spring, b 7.7.4
: Push the ground wire (1) into the
guide (arrow).
Install the ignition lead, b 7.3
Reconnect the choke rod,
b 10.2.1
Reassemble all other parts in the
reverse sequence.
2
1
4903RA111 TG4903RA112 TG
1
7.7.3 Ground Wire
A faulty ground wire may impair or
prevent operation of the short circuit
wire.
The ground wire is combined with
the short circuit wire in a wiring
harness. If damaged, the wiring
harness must be replaced
Check for contact and continuity
and
replace the wiring harness,
b 7.7
7.7.4 Contact Spring
Remove the shroud, b 6.4
Remove the choke rod,
b 10.2.1
: Move the switch shaft (1)
towards the tank housing until the
contact spring (2) is free.
4903RA113 TG
2
1
: Lift the contact spring (1) over the
lug (arrow) and pull it out.
Check the ground wire ring
terminal and replace it if
necessary, b 7.7.3
Installing
Place the contact spring (1) in
position at a slight angle.
: Push the contact spring (1) onto
the pins (arrows) as far as stop.
4903RA114 TG
1
4903RA115 TG
1
